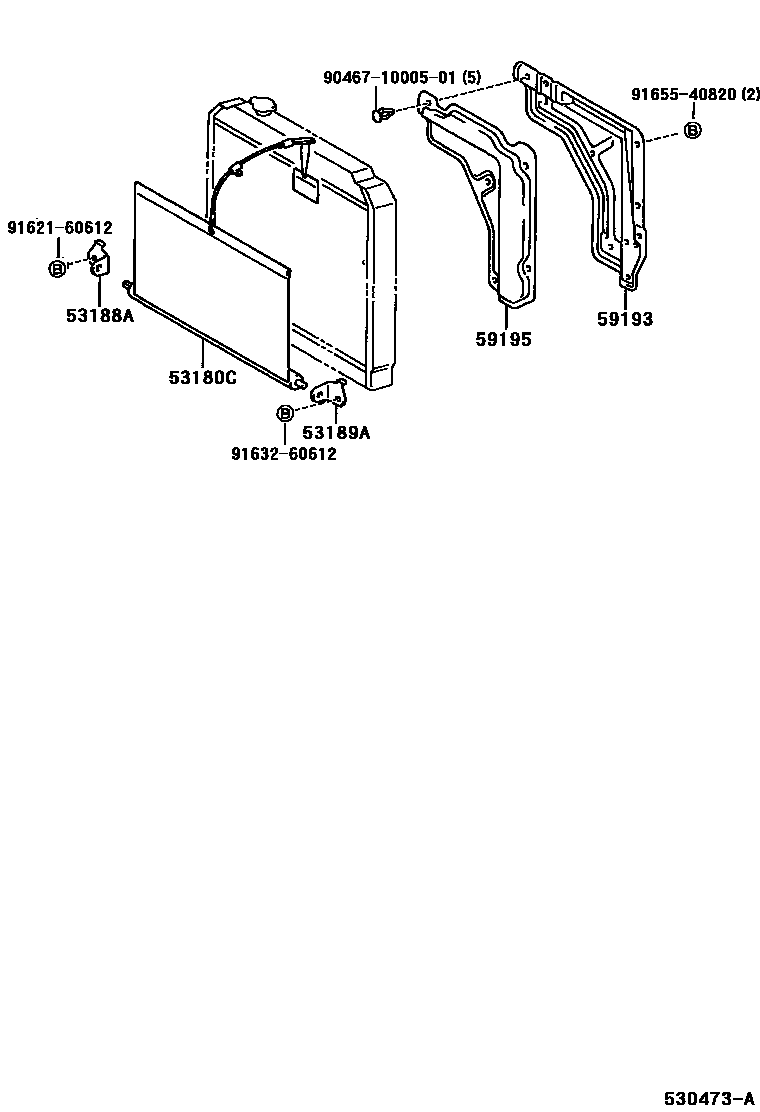

RADIATOR SUPPORT & WIND GUIDE

53180CSHUTTER ASSY, RADIATOR

main53180-25010iLY10#,11#,12#,15#..MTM;LY13#,16#..DSL..(CBU,IV3)199610

main53180-25030iLY20#,21#199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-37010iLY10#,11#,12#,15#,20#..MTM;LY13#,16#,21#..DSL..(CBU,IV3)199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-37010iLY10#,11#,12#,15#,20#..MTM;LY13#,16#,21#..DSL..(CBU,IV3)199505

59193GUARD, NOISE SHUTTER

main59193-25010iLY201,211..T1,T2,T3,T4199505-199606

main59193-25030iLY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL..(CBU,IV3)199606

59195INSULATOR, NOISE SHUTTER

main59195-25030iLY10#,11#,12#,13#,15#,16#,20#,21#..(T1,T2,T3,T4)..DSL..(CBU,IV3)199606

main59195-95A00iLY201,211..T1,T2,T3,T4199505-199606

904671000501

main90467-1000501

9162160612

main91621-60612

9163260612

main91632-60612

9165540820

main91655-40820

9 parts on this diagram · 1 diagram in section
