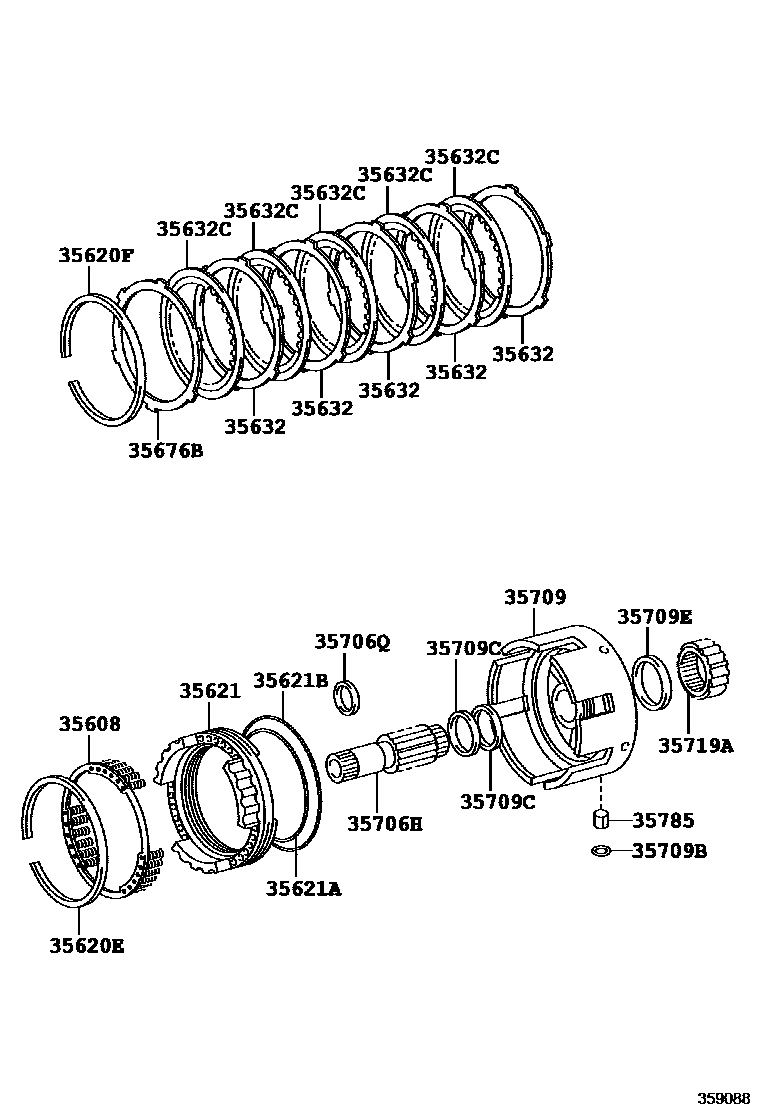

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35620ERING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35620FRING, HOLE SNAP (FOR BRAKE NO.1 FLANGE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35632PLATE, BRAKE
35632CDISC, CLUTCH (FOR BRAKE)
35676BFLANGE, BRAKE, NO.1
35706HGEAR SUB-ASSY, PLANETARY SUN
35706QRING, SHAFT SNAP (FOR FRONT PLANETARY SUN GEAR)
35709SUPPORT SUB-ASSY, CENTER
35709BRING, O (FOR CENTER SUPPORT)
35709CRING, OIL SEAL (FOR CENTER SUPPORT)
35709EWASHER (FOR CENTER SUPPORT)
35719AGEAR, REAR PLANETARY SUN
35785RETAINER, CENTER SUPPORT RING
17 parts on this diagram · 3 diagrams in section
