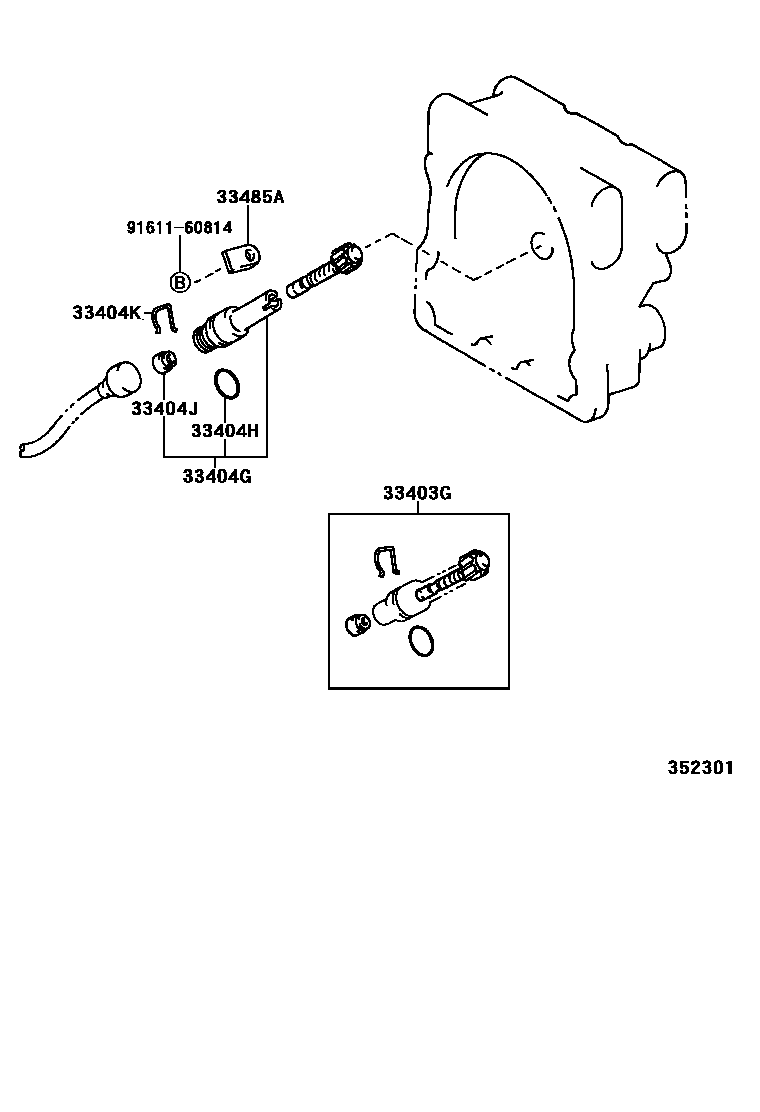

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A443E,A44DE,A44DF 0002 1A42D,A43D 0003 1A44DE

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39195iYY211..ATM199505

main33403-69135iLY10#,11#..ATM199610

main33482-29195iLY16#..ATM199708

main33482-39186iLY13#,212..ATM;LY211..(T3,T4)..ATM199505

main33482-39295iLY211..T2..ATM199505-199905

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iLY10#,11#,YY211..ATM199505

main33404-35010iLY16#..ATM199708

main33404-36010iLY131,211..ATM199505-199812

main33404-37010iLY13#,21#..ATM199812

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iLY10#,11#,13#,21#,YY211..ATM199505

main90301-18018iLY16#..ATM199708

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLY10#,11#,16#,YY211..ATM199505

main90310-10001iLY13#,21#..ATM199505

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLY13#,16#,21#..ATM199505

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-25010iLY10#,11#..ATM199610

main33485-30020iLY13#,16#,21#,YY211..ATM199505

9161160814

main91611-60814

7 parts on this diagram · 3 diagrams in section
