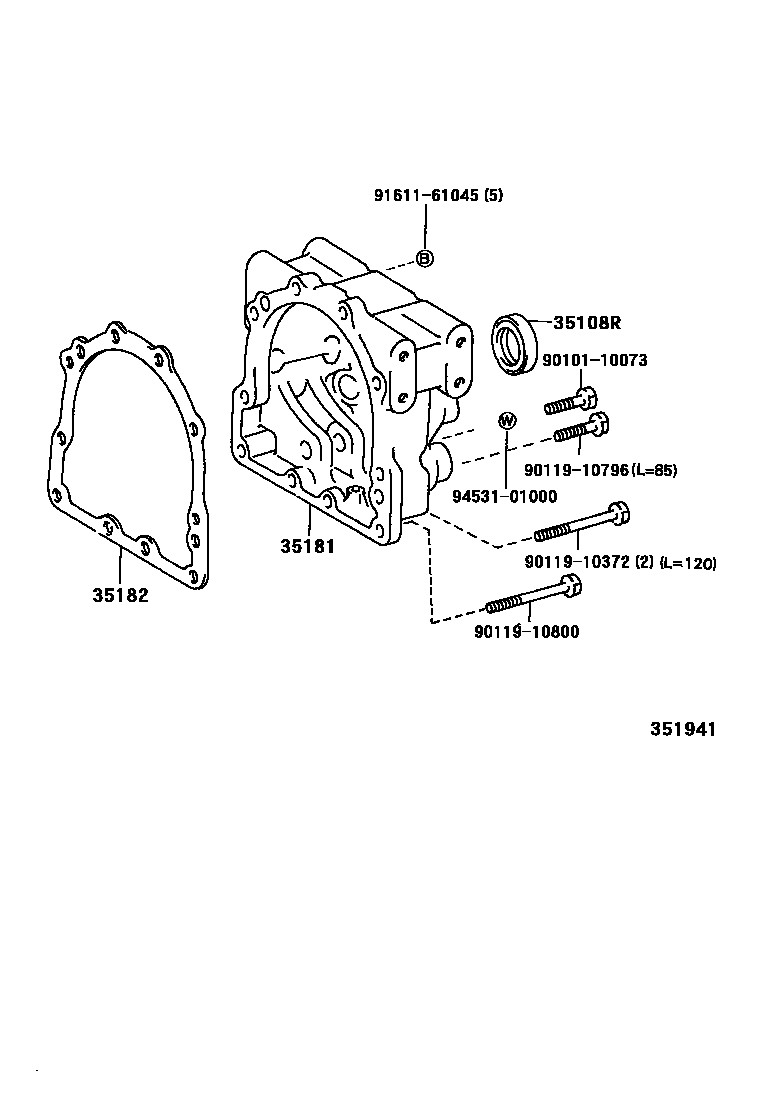

EXTENSION HOUSING (ATM)

0001 1A44DE,A443E 0002 1A42D,A43D 0003 1A44DE 0004 1A44DF

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-26014iYY211..ATM199505

main35108-26020iLY10#,11#..ATM199610

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iLY10#,11#,YY211..ATM199505

main90311-45007iLY131,211..ATM199505-199905

main90311-46005iLY132,212..ATM199905

35181HOUSING, EXTENSION (ATM)

main35181-25010iLY132,212..ATM199905

main35181-37010iLY131,211..ATM199505-199905

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iLY10#,11#,16#,YY211..ATM199505

main35182-60010iLY13#,21#..ATM199505

9010110073

main90101-10073

9011910372

main90119-10372

9011910796

main90119-10796

9011910800

main90119-10800

9161161045

main91611-61045

9453101000

main94531-01000

10 parts on this diagram · 4 diagrams in section
