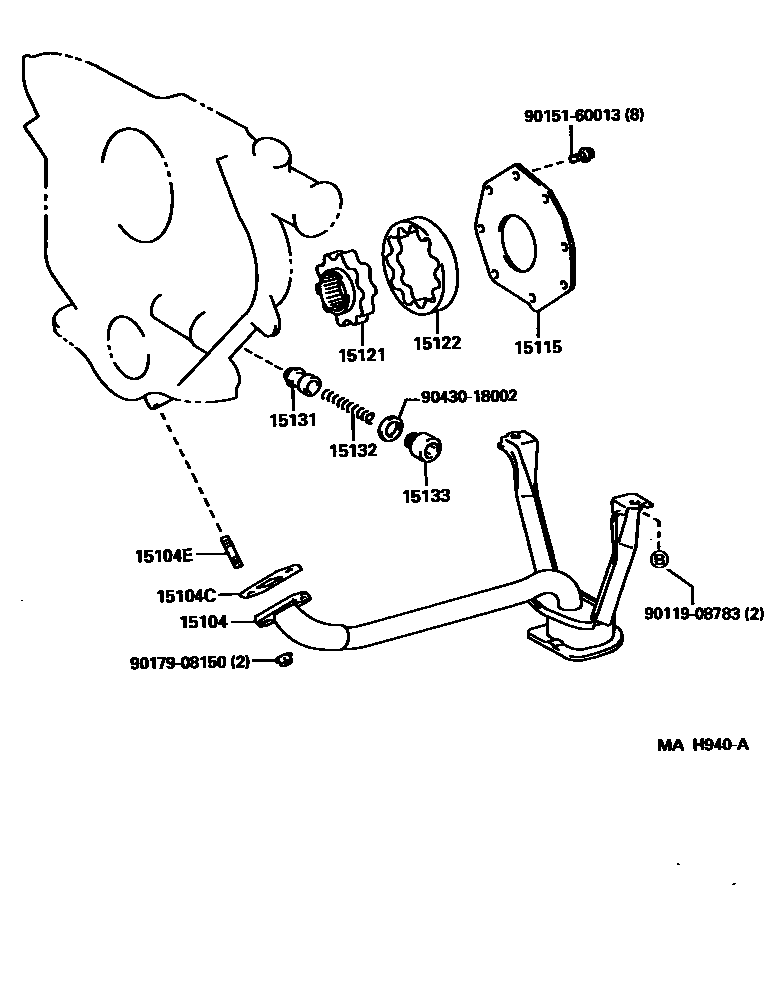

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0005 1

15104STRAINER SUB-ASSY, OIL

main15104-54140i3L..LY121,131,151,161..MTM199610-199708

main15104-54190i3L..LY101,111;3L..LY131..ATM199610-199708

main15104-54200i3L..LY201,211199505-199608

main15104-54201i3L..LY201,211199608-199701

main15104-54202i3L,5L..LY20#,21#199701

main15104-71010i3Y#..YY121,131,201,211199505

15104CGASKET(FOR OIL STRAINER)

main15149-54012i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505-200008

main15149-54030i5L..LY102,112,122,132,152,162,202,212200008

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

15115COVER, OIL PUMP

main15115-54022i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

main15115-71015i3Y#..YY121,131,201,211199505

15121GEAR, OIL PUMP DRIVE

main15121-54020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

15122GEAR, OIL PUMP DRIVEN

main15122-54020i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

15131VALVE, OIL PUMP RELIEF

main15131-24010i3Y#..YY101,121,131,201,211199505

main15131-54010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3Y#..YY101,121,131,201,211199505

main15132-54010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-24010i3Y#..YY101,121,131,201,211199505

main15133-54010i3L,5L..LY10#,11#,12#,13#,15#,16#,20#,21#199505

9011908783

main90119-08783

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

13 parts on this diagram · 4 diagrams in section
