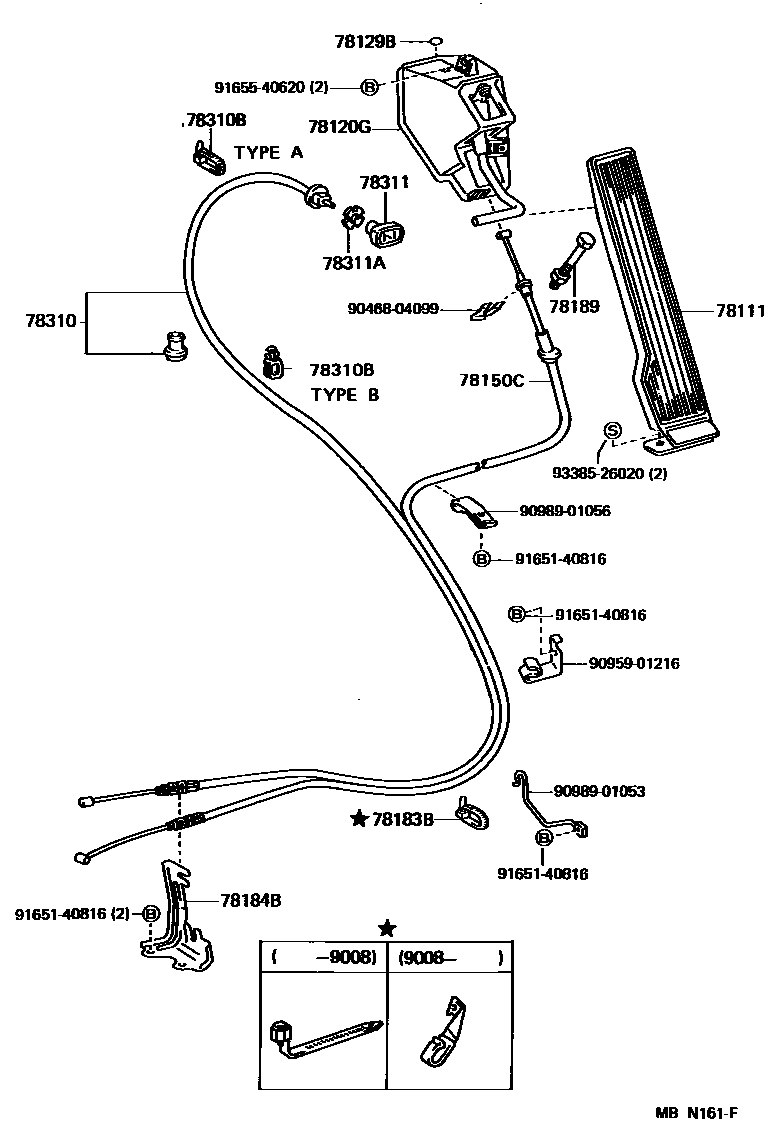

ACCELERATOR LINK

0001 1 0002 1

78111PEDAL, ACCELERATOR

main78110-95410iLY5#,6#,YY5#,61198708-198809

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95010iLY5#,6#,YY5#,61198708-199505

78129BSEAL, ACCELERATOR PEDAL ARM

main78129-95J00iYY5#,61..CBR198809-199505

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-25010iYY5#,61199008-199109

main78150-25040iLY5#,61199109-199505

main78150-25060iYY5#,61..CBR199109-199505

main78150-25070iYY61..LPG199406-199505

main78150-95055iYY5#,61198708-199008

main78150-95056iLY50,60198708-198808

main78150-95060iLY5#,61198808-199109

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-95011iLY5#,61198808-199505

TYPE B

main78183-95A10iYY5#,61..CBR199008-199505

main82711-12200×2iLY5#,6#198708-199505

TYPE A

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-25020iYY5#,61..CBR199008-199505

main78184-95010iYY5#,61198708-199008

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37010iYY61..LPG199406-199505

main78208-95404iLY5#,6#,YY5#,61..CBR,DSL198708-199505

78310CABLE ASSY, CHOKE

main78304-95010iYY5#,61198708-199008

78310BCLAMP, CHOKE CABLE

main82711-12200iYY5#,61198708-199008

main82711-95410iYY5#,61198708-199008

78311KNOB, CHOKE CONTROL CABLE

main78302-95400iYY5#,61198708-199008

78311ANUT, CHOKE SHAFT SET

main78314-95010iYY5#,61198708-199008

9046804099

main90468-04099

9095901216

main90959-01216

9098901053

main90989-01053

9098901056

main90989-01056

9165140816

main91651-40816

9165540620

main91655-40620

9338526020

main93385-26020

18 parts on this diagram · 2 diagrams in section
