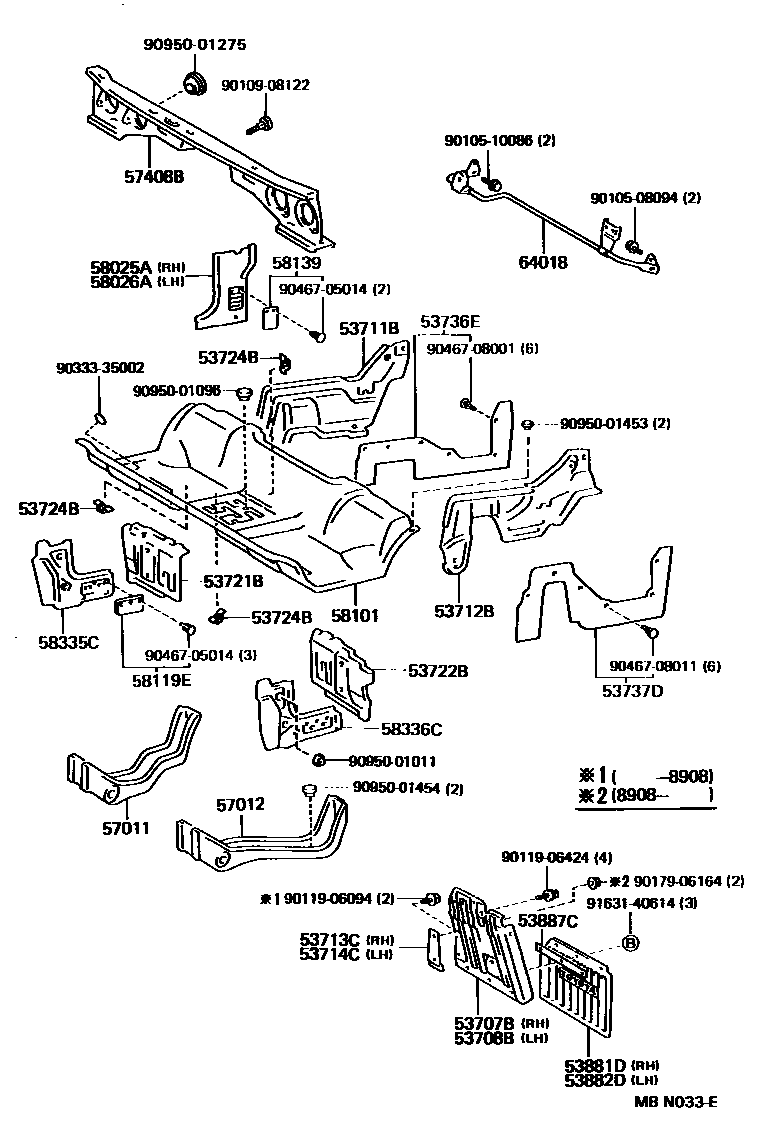

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

53707BAPRON SUB-ASSY, FENDER SIDE, RH

main53715-95405iLY50,6#,YY5#,61..TW198708-199505

main53715-95A01iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

53708BAPRON SUB-ASSY, FENDER SIDE, LH

main53716-95404iLY50,6#,YY5#,61..TW198708-199505

main53716-95A02iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

53711BAPRON, FRONT FENDER, FRONT RH

main53707-95011iYY5#,61198708-199505

main53707-95012iLY5#,6#198708-199505

main53707-95013iLY6#..15T..WT1..IV; LY6#..TB..15T..IV;LY5#..15T..WT1..IV198708-199301

53712BAPRON, FRONT FENDER, FRONT LH

main53708-95011iLY50,60,YY5#,61198708-198808

main53708-95012iLY5#,61,YY5#,61198808-199505

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53747-95010iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-198908

main53747-95011iLY5#,61,YY5#,61..T1,T2,T3,T4198908-199505

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53748-95010iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-198908

main53748-95011iLY5#,61,YY5#,61..T1,T2,T3,T4198908-199505

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-95402iLY5#,6#,YY5#,61198708-199505

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-95403iLY5#,6#,YY5#,61198708-199505

53724BBRACKET, CLAMP(FOR FLOOR PANEL)

main53724-95010×3iLY5#,61,YY5#,61198912-199505

53736ESEAL, FRONT FENDER APRON, RH

main53736-95010iLY5#,6#,YY5#,61198708-199505

53737DSEAL, FRONT FENDER APRON, LH

main53737-95010iLY50,60,YY5#,61198708-198808

main53737-95011iLY5#,61,YY5#,61198808-199505

53881DMUDGUARD, FRONT RH

main53881-95401iLY50,6#,YY5#,61..TW198708-199505

main53881-95A03iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

53882DMUDGUARD, FRONT LH

main53881-95401iLY50,6#,YY5#,61..TW198708-199505

main53881-95A03iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

53887CPLATE, FRONT MUDGUARD

main53887-95010×2iLY5#,6#,YY5#,61..T1,T2,T3,T4198708-199505

57011MEMBER SUB-ASSY, FLOOR, RH

main57011-95010iLY5#,6#,YY5#,61198708-199505

57012MENBER SUB-ASSY

main57012-95010iLY5#,6#,YY5#,61198708-198904

main57012-95011iLY5#,61,YY5#,61198904-199505

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-25010iLY5#,61,YY5#,61199201-199505

main57408-25020iLY51..IV;LY61..(T2,T4)..IV199309-199505

main57408-95020iLY50,60..15T..IV198708-198808

main57408-95022iLY50,60;YY51,61..TW198708-198808

main57408-95023iLY5#,61,YY5#,61198808-199201

main57408-95025iLY51,61..15T..IV198808-199201

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-25010iLY50,61,YY52,61..TW199309-199505

main58025-95012iLY50,6#,YY51,61..TW198708-199309

main58271-37010iLY5#,61,YY52,61..T1,T2,T3,T4199309-199505

main58271-95400iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

main58271-95401iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199309

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-95401iLY50,6#,YY5#,61..TW198708-199505

main58272-95400iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

main58272-95402iLY50,60..15T198708-198808

main58272-95403iLY5#,61,YY5#,61..T1,T2,T3,T4198808-199505

main58272-95404iLY51,61..15T198808-199309

58101PAN SUB-ASSY, FRONT FLOOR

main58101-95055iLY5#,6#,YY5#,61198708-199505

main58101-95057iLY6#..15T..WT1..IV198708-199505

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-95400×2iLY5#,6#,YY5#,61198708-199505

58139COVER, FRONT FLOOR SIDE, REAR

main58139-95400iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

main58139-95401iLY50,60,YY5#,61..T1,T2,T3,T4198708-198808

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-95401iLY50,60,YY5#,61198708-198808

main58335-95402iLY5#,61,YY5#,61198808-199008

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-95401iLY50,60,YY5#,61198708-198808

main58336-95402iLY5#,61,YY5#,61198808-199008

64018BAR SUB-ASSY, BODY

main64018-95413iLY5#,6#,YY5#,61198708-199505

9010508094

main90105-08094

9010510086

main90105-10086

9010908122

main90109-08122

9011906094

main90119-06094

9011906424

main90119-06424

9017906164

main90179-06164

9033335002

main90333-35002

9046705014

main90467-05014

9046708001

main90467-08001

9046708011

main90467-08011

9095001011

main90950-01011

9095001096

main90950-01096

9095001275

main90950-01275

9095001453

main90950-01453

9095001454

main90950-01454

9163140614

main91631-40614

41 parts on this diagram · 3 diagrams in section
