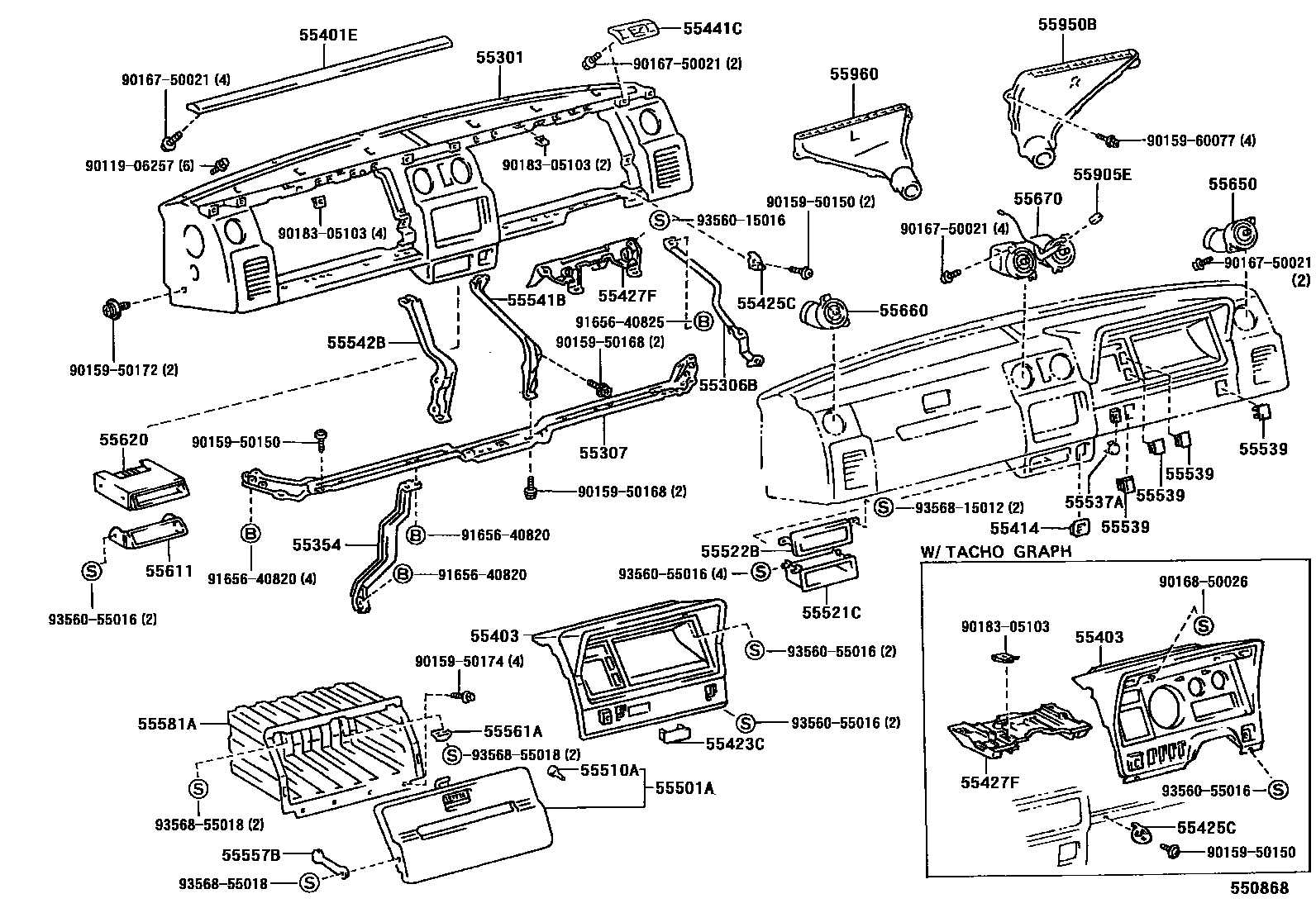

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55311-95027-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55311-95027-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main55311-95027-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main55311-95425-04iLY5#,6#..TOY..15T..IV198708-199109

main55311-95425-06iLY5#,6#..DYN..15T..IV198708-199109

main55311-95425-B0iLY51..IV;LY61..(T2,T4)..IV199301-199505

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-95016iLY5#,6#,YY5#,61198708-199505

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-95403iLY5#,6#,YY5#,61198708-199505

55354BRACE, INSTRUMENT PANEL TO FLOOR

main55351-95400iLY5#,6#,YY5#,61198708-199505

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55431-95012-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55431-95012-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main55431-95012-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

55403HOOD SUB-ASSY, METER

main55403-26010-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main55403-95020-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55403-95020-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main55403-95B23-04iLY5#,6#..TOY..15T..IV198708-199109

main55403-95B23-06iLY5#,6#..DYN..15T..IV198708-199109

main55403-95B23-B0iLY51..IV;LY61..(T2,T4)..IV199301-199309

main55403-95B28-04iLY5#,6#..TOY..(T2,T4)..15T..IV198708-199109

main55403-95B28-06iLY5#,6#..DYN..(T2,T4)..15T..IV198708-199109

main55403-95B28-B0iLY51,61..(T2,T4)..IV199109-199309

55414BEZEL, CIGAR LIGHTER HOLE

main55414-95J00iLY5#,6#,YY5#,61198708-199505

55423CCOVER, CLOCK OPENING

main55423-26010-B0iLY5#,61,YY5#,61199109-199309

GRAY,TRIM1#

main55423-95011-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55423-95011-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

55425CBRACKET, METER HOOD SET, NO.1

main55425-95010×2iLY5#,6#,YY5#,61198708-199505

main55425-95404×2iLY5#,6#..15T..IV198708-199301

55427FBRACKET, METER HOOD SET, NO.3

main55427-95010iLY5#,6#,YY5#,61198708-199505

main55427-95402iLY51..IV;LY61..(T2,T4)..IV199301-199505

55441CBOX, INSTRUMENT PANEL COIN

main55441-95417-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55441-95417-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main55441-95417-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

55501ADOOR SUB-ASSY, GLOVE COMPARTMENT

main55501-95412-04iLY5#,6#,YY5#,61..TOY198708-199109

BLUE,TRIM8#

main55501-95412-06iLY5#,6#,YY5#,61..DYN198708-199109

BROWN,TRIM4#

main55501-95412-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iLY5#,6#,YY5#,61198708-199505

main90541-05080×2iLY5#,6#,YY5#,61198708-199505

OD=10

55521CCOVER, STEREO OPENING

main55521-14050-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55522BCOVER, RADIO TUNER OPENING

main55522-20040iLY5#,6#,YY5#,61198708-199109

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-04iLY5#,6#..TOY..15T..IV198708-199008

BLUE,TRIM8#

main55537-95010-06iLY5#,6#..DYN..15T..IV198708-199008

BROWN,TRIM4#

main55537-95010-B0iYY5#,61;LY51,61..15T..IV199109-199301

GRAY,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-95J00-04iLY5#,6#,YY5#,61..TOY; LY5#,6#..TOY..15T..IV198708-199109

main55539-95J00-06iLY5#,6#,YY5#,61..DYN; LY5#,6#..DYN..15T..IV198708-199109

main55539-95J00-B0iLY5#,61,YY5#,61; LY51,61..15T..IV199109-199207

55541BRETAINER, RADIO TUNER OPENING, NO.1

main55541-95407iLY5#,6#,YY5#,61198708-199505

55542BRETAINER, RADIO TUNER OPENING, NO.2

main55542-95407iLY5#,6#,YY5#,61198708-199505

55557BSTOPPER, GLOVE COMPERTMENT DOOR CHECK

main55557-95400-01×2iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95401-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55581ACOMPARTMENT, GLOVE

main55581-95400-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55611TRAY, INSTRUMENT PANEL UNDER

main55611-26010iLY5#,61,YY5#,61199109-199505

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-37010iLY5#,61,YY5#,61199109-199505

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-26010-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main55650-95400-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55650-26010-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main55650-95400-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-26010-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

main55670-95400-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLY5#,6#,YY5#,61..DYN; LY5#,6#,YY5#,61..TOY198708-199109

BLACK,TRIM4#; BLACK,TRIM8#

main55905-37010-B0iLY5#,61,YY5#,61199109-199505

GRAY,TRIM1#

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iLY5#,6#,YY5#,61198708-199505

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-95010iLY5#,6#,YY5#,61198708-199505

9011906257

main90119-06257

9015950150

main90159-50150

9015950168

main90159-50168

9015950172

main90159-50172

9015950174

main90159-50174

9015960077

main90159-60077

9016750021

main90167-50021

9016850026

main90168-50026

9018305103

main90183-05103

9165640820

main91656-40820

9165640825

main91656-40825

9356015016

main93560-15016

9356055016

main93560-55016

9356815012

main93568-15012

9356855018

main93568-55018

45 parts on this diagram · 1 diagram in section
