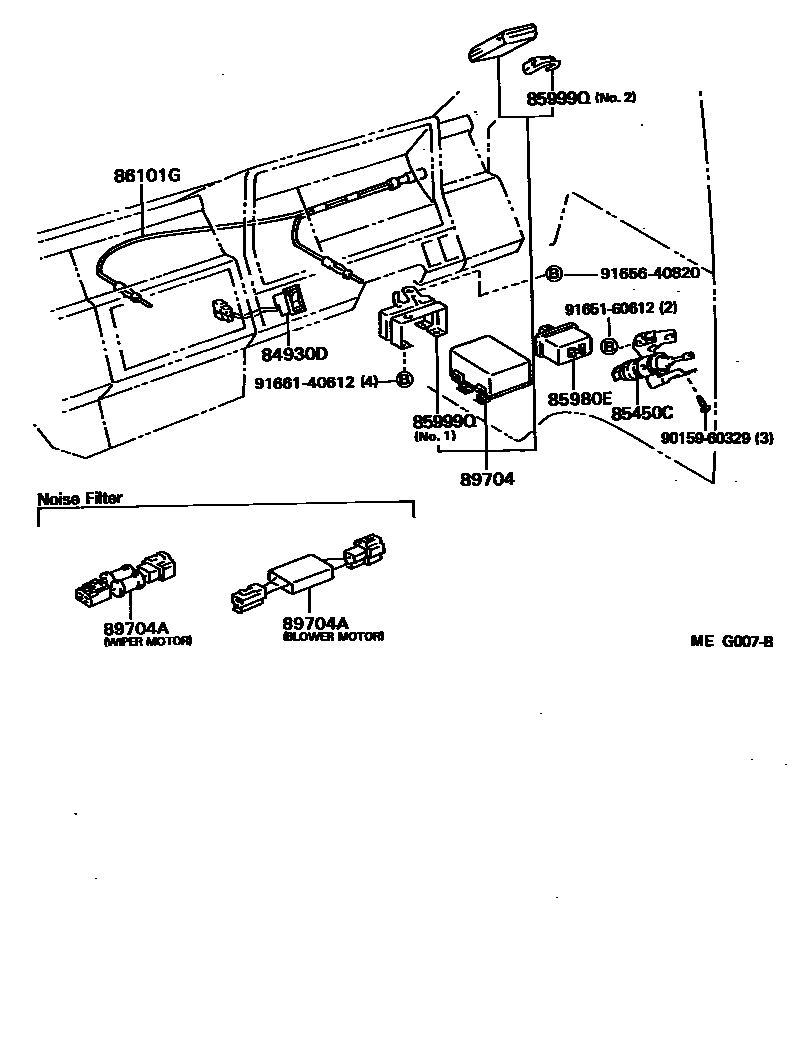

WIRELESS DOOR LOCK

84930DSWITCH, DOOR CONTROL

main84931-95400iLY50,60..T1,T2,T3198508-198708

85450CSOLENOID ASSY, DOOR CONTROL

main85450-95A02iLY50,60..T1,T2,T3198508-198708

85980ERELAY ASSY, DOOR CONTROL

main85980-26010iLY50,60..T1,T2,T3198508-198708

85999QBRACKET, DOOR CONTROL TRANSMITTER

main85999-36010iLY50,60..T1,T2,T3198508-198708

NO.1,DENSO

main85999-36030iLY50,60..T1,T2,T3198508-198708

NO.1,TOKAIRIKA

main85999-36040iLY50,60..T1,T2,T3198701-198708

NO.2,DENSO

main85999-36050iLY50,60..T1,T2,T3198701-198708

NO.2,TOKAIRIKA

86101GCORD SUB-ASSY, ANTENNA

main86101-36010iLY50,60..T1,T2,T3198508-198708

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-26010iLY50,60..T1,T2,T3198508-198708

89704AFILTER, NOISE(FOR WIRELESS DOOR LOCK)

main90980-05049iLY50,60..T1,T2,T3198508-198708

WIPER MOTOR

main90980-05107iLY50,60..T1,T2,T3198508-198708

BLOWER MOTOR

9015960329

main90159-60329

9165160612

main91651-60612

9165640820

main91656-40820

9166140612

main91661-40612

11 parts on this diagram · 1 diagram in section
