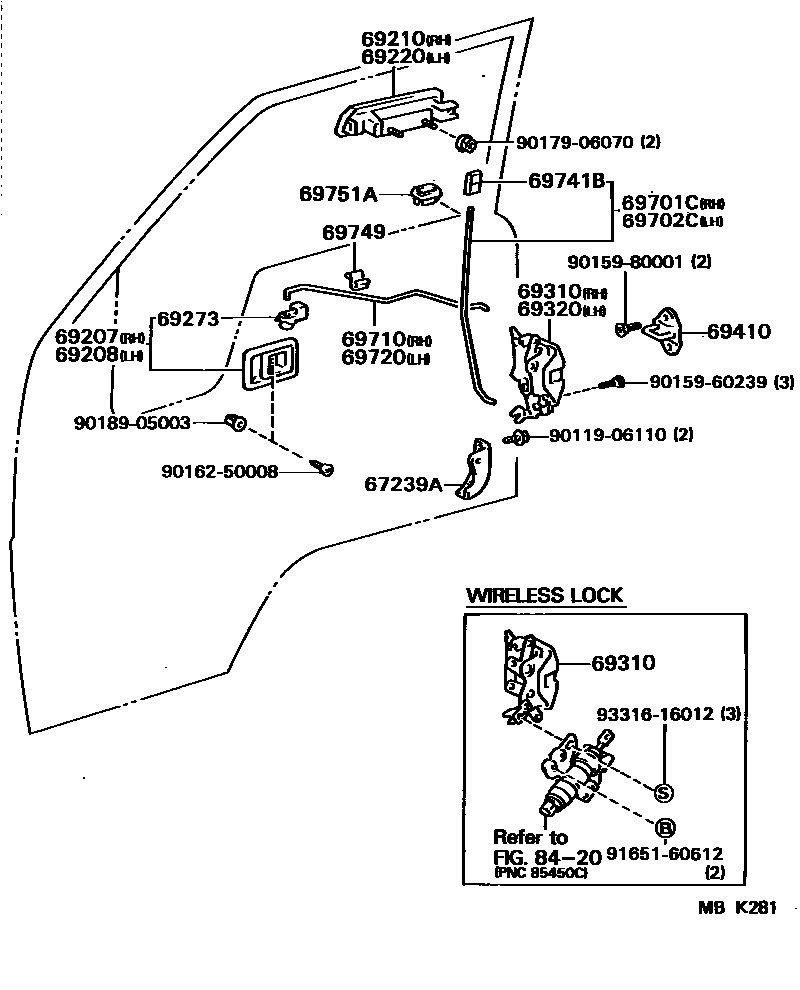

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

67239AWEIGHT, FRONT DOOR

main67239-95401iLY50,60,YY5#,61..T1,T2,T3198508-198708

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-03iLY50,60,YY5#,61198508-198708

SHADOW GRAY,GRAY

main69205-10040-14iLY50,60,YY5#,61198508-198708

BLUE,BLUE

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-03iLY50,60,YY5#,61198508-198708

SHADOW GRAY,GRAY

main69206-10040-14iLY50,60,YY5#,61198508-198708

BLUE,BLUE

main69280-95401-03iLY50,60..15T198508-198708

W/SLIDE DOOR,SHADOW GRAY,SHADOW GRAY

main69280-95401-04iLY50,60..15T198508-198708

W/SLIDE DOOR,BLUE,BLUE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iLY50,60,YY5#,61198508-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iLY50,60,YY5#,61198508-198708

main69220-95404iLY50,60..15T198508-198708

W/SLIDE DOOR

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iLY50,60,YY5#,61198508-198708

RH

main69759-20070iLY50,60,YY5#,61198508-198708

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-95407iLY50,60,YY5#,61198508-198708

main69310-95408iLY50,60..T2,T3198508-198708

W/WIRELESS DOOR LOCK

69320LOCK ASSY, FRONT DOOR, LH

main69320-95406iLY50,60..15T198508-198708

FR,W/SLIDE DOOR

main69320-95407iLY50,60,YY5#,61198508-198708

main69340-95401iLY50,60..15T198508-198708

RR,W/SLIDR DOOR

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iLY50,60,YY5#,61; LY50,60..15T198508-198708

RH,W/SLIDE DOOR

main69410-95401iLY50,60..15T198508-198708

LH,FR,W/SLIDE DOOR

main69420-95401iLY50,60..15T198508-198708

LH,RR,W/SLIDE DOOR

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-95403iLY50,60,YY5#,61198508-198708

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-95401iLY50,60,YY5#,61198508-198708

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iLY50,60,YY5#,61198508-198708

BLACK,BLACK

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010×2iLY50,60,YY5#,61198508-198708

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031-01×2iLY50,60,YY5#,61198508-198708

BLACK,BLACK

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9011906110

main90119-06110

9015960239

main90159-60239

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9165160612

main91651-60612

9331616012

main93316-16012

25 parts on this diagram · 2 diagrams in section
