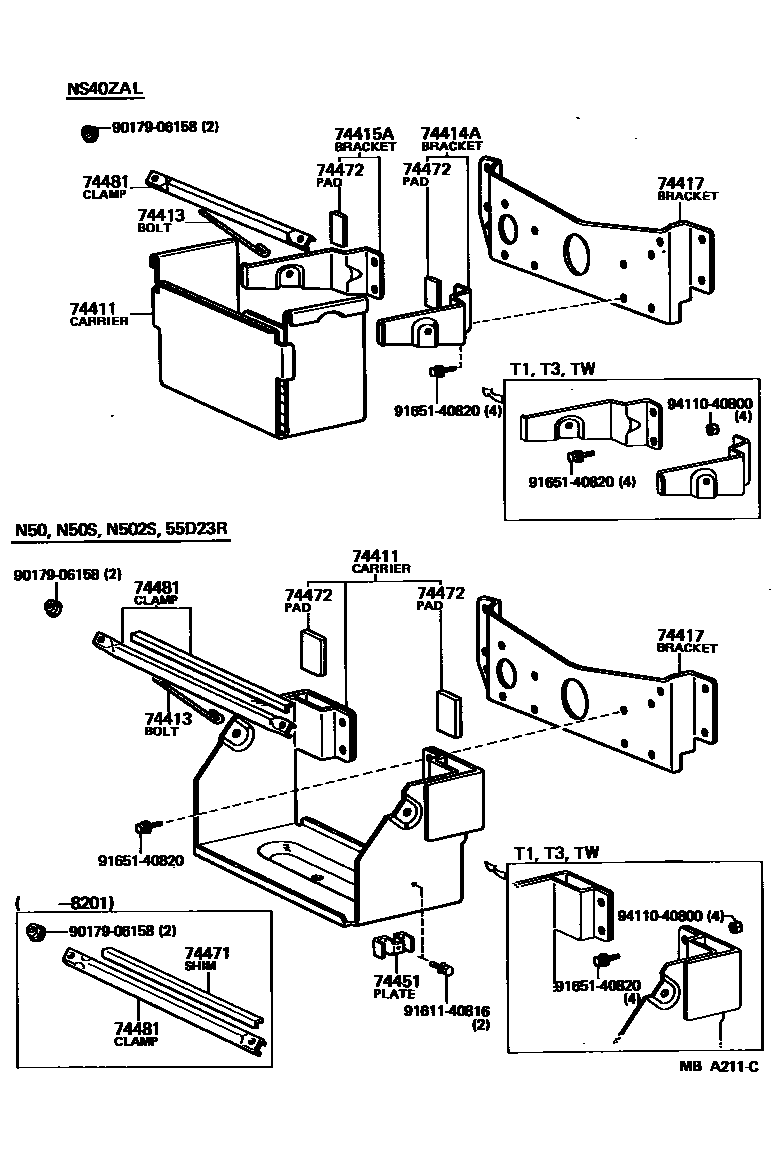

BATTERY CARRIER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

74411CARRIER, BATTERY

main74411-25020iRY20; RY31197903-198201

12V,N50; 12V,N50Z

main74421-25010iRY2#,3#197903-198507

12V,NS40ZAL

main74421-25020iLY2#,3#,RY21,32198201-198507

12V,N50S & N50ZS & NT100-5

main74421-25030iJY30..WT..20T198201-198308

12V,NT110-7

main74421-36010iLY20,30; RY20,31..T2,T3197903-198109

12V,N70Z; 12V,NX120-7L

main74421-36040iJY30197903-198201

12V,N100Z

main74421-36080iBY30,JY30197903-198201

24V,N70Z

main74421-36090iJY30..DMP,T1,T3198201-198204

12V,N70Z & NT110-7

main74421-36091iJY30..DMP,T1,T3198204-198308

12V,N70Z & NT110-7

main74421-36120iBY3#,JY30..DMP,T1,T3; BY3#..T2,VPA; LY2#,3#198201-198507

24V,75D26R; 24V,N50ZS; 24V,NX110-5

74413BOLT, BATTERY CLAMP

main74451-25020×2iLY2#,3#,RY21,32198201-198507

12V,NS40ZAL,NT100-5,N50S,N50ZS

main74451-25030iJY30..DMP,T1,T3; JY30..WT..20T; RY21,32..T2; RY21,32..T3198201-198204

12V,N70Z; 12V,N70Z & NT110-7; 12V,NT110-7

main74451-36070iRY21,32..T2; RY21,32..T3198204-198507

12V,N70Z; 12V,N70Z & NT110-7

main90101-08132iLY20,30; RY20,31..T2,T3197903-198201

12V,N70Z; 12V,NX120-7L

main90101-08133iJY30197903-198201

12V,N100Z

main90101-08223iBY30,JY30; LY20;LY30..ST;LY30..T2,VP,VPS,VT197903-198201

24V,N70Z; 24V,NX110-5

74414ABRACKET, BATTERY, NO.1

main74401-25020iLY20,30..WT; RY20,31..T2197903-198201

12V,N70Z; 12V,NX120-7L

main74401-25030iLY20,30..ST197903-198201

24V,NX110-5

main74401-25040iJY30..WT..20T197903-198201

12V,N100Z

main74401-25050iJY30..WT..20T197903-198201

24V,N70Z

main74401-25060iJY30..DMP,T1,T3; RY21,32..T3198201-198204

12V,N70Z & NT110-7

main74401-25061iRY21,32..T3198204-198507

12V,N70Z & NT110-7

main74401-25070iRY21,32..T2198201-198204

12V,N70Z

main74401-25071iRY21,32..T2198204-198507

12V,N70Z

main74401-25080iJY30..WT..20T198201-198204

12V,NT110-7

main74401-25081iJY30..WT..20T198204-198308

12V,NT110-7

main74401-25090iLY2#,3#..T1,T3,TW198201-198507

24V,N50ZS

main74401-25100iLY2#,3#..T2,VP,VPS,VT198201-198507

24V,N50ZS

main74401-25110iJY30..WT..20T198201-198308

24V,NT100-5

main74401-25120iBY3#..T2,VPA198201-198507

24V,75D26R

main74401-36011iLY20,30..ST; RY20,31..T3197903-198201

12V,N70Z; 12V,NX120-7L

main74401-36091iBY30..T3198009-198201

24V,N50Z

main74401-36121iBY30..VPA198009-198201

24V,N50Z

main74401-36170iJY30..DMP,T1,T3197903-198201

12V,N100Z

main74401-36180iBY30..VPA198009-198201

24V,N70Z

main74402-25110iBY3#..DMP,T1,T3198201-198507

24V,NT100-5,75D26R

main74402-25120iJY30..DMP,T1,T3198201-198308

24V,NT100-5

main74402-36120iBY30,JY30..DMP,T1,T3197903-198201

24V,N70Z

main74411-25011iRY2#,3#197903-198507

12V,NS40ZAL & N50

main74411-25080iLY20,30..T2,VP,VPS,VT197903-198201

24V,NX110-5

74415ABRACKET, BATTERY, NO.2

main74402-25020iLY20,30..WT; RY20,31..T2197903-198201

12V,N70Z; 12V,NX120-7L

main74402-25030iLY20,30..ST197903-198201

24V,NX110-5

main74402-25040iJY30..WT..20T197903-198201

12V,N100Z

main74402-25050iBY30,JY30..DMP,T1,T2,T3197903-198201

24V,N70Z

main74402-25060iJY30..DMP,T1,T3; RY21,32..T3198201-198204

12V,N70Z & NT110-7

main74402-25061iJY30..DMP,T1,T3198204-198308

12V,N70Z & NT110-7

main74402-25070iRY21,32..T2198201-198204

12V,N70Z

main74402-25071iRY21,32..T2198204-198507

12V,N70Z

main74402-25080iJY30..WT..20T198201-198204

12V,NT110-7

main74402-25081iJY30..WT..20T198204-198308

12V,NT110-7

main74402-25090iLY2#,3#..T1,T3,TW198201-198507

24V,N50ZS

main74402-25100iLY2#,3#..T2,VP,VPS,VT198201-198507

24V,N50ZS

main74402-25110iJY30..DMP,T1,T3; JY30..WT..20T198201-198308

24V,NT100-5; 24V,NT100-5,RR

main74402-25120iBY3#..DMP,T1,T3; BY3#..T2,VPA198201-198507

24V,75D26R; 24V,NT100-5,75D26R,RR

main74402-36011iLY20,30..ST; RY20,31..T3197903-198201

12V,N70Z; 12V,NX120-7L

main74402-36071iBY30..T3198009-198201

24V,N50Z

main74402-36110iJY30..DMP,T1,T3197903-198201

12V,N100Z

main74402-36120iBY30..VPA198009-198201

24V,N70Z

main74402-36160iBY30..VPA198009-198201

24V,N50Z

main74412-25011iRY2#,3#197903-198507

12V,NS40ZAL & N50

main74412-25070iLY20,30..T2,VP,VPS,VT197903-198201

24V,NX110-5

74417BRACKET, BATTERY CARRIER

main74417-25010iLY20,30,RY20,31..WT197903-198005

main74417-25011iLY20,30,RY20,31..WT198005-198201

74451PLATE, BATTERY CARRIER SUPPORT

main74451-25050×2iRY21198201-198507

12V,N50S

main74451-25060×2iRY32198201-198507

12V,N50ZS

main74451-36040×2iLY20,30; RY20,31..T2,T3197903-198201

12V,N70Z; 12V,NX120-7L

main74451-36050×2iBY30,JY30; LY20;LY30..ST;LY30..T2,VP,VPS,VT197903-198201

24V,N70Z; 24V,NX110-5

74471SHIM, BATTERY SET ANGLE

main74471-35010iRY20,31197903-198201

12V,N50 & N50Z

74472PAD, BATTERY SIDE

main74472-25010×2iRY2#,3#197903-198507

12V,NS40ZAL

main74472-25020×2iLY2#,3#,RY21,32; RY21,32..T3198201-198507

12V,N70Z & NT110-7; 12V,NT100-5 & N50S & N50ZS

74481CLAMP, BATTERY HOLD DOWN

main74404-25010iLY2#,3#,RY21,32198201-198507

12V,NT100-5 & N50S & N50ZS

main74404-25020iJY30..DMP,T1,T3; RY21,32..T2,T3198201-198204

12V,N70Z & NT110-7

main74404-25021iRY21,32..T2,T3198204-198507

12V,N70Z & NT110-7

main74404-25030iJY30..WT..20T198201-198204

12V,NT110-7

main74404-25031iJY30..WT..20T198204-198507

12V,NT110-7

main74413-36010iRY20,31197903-198201

12V,N50Z

main74453-25020iRY2#,3#197903-198507

12V,NS40ZAL

9017906158

main90179-06158

9161140816

main91611-40816

9165140820

main91651-40820

9411040800

main94110-40800

13 parts on this diagram · 7 diagrams in section
