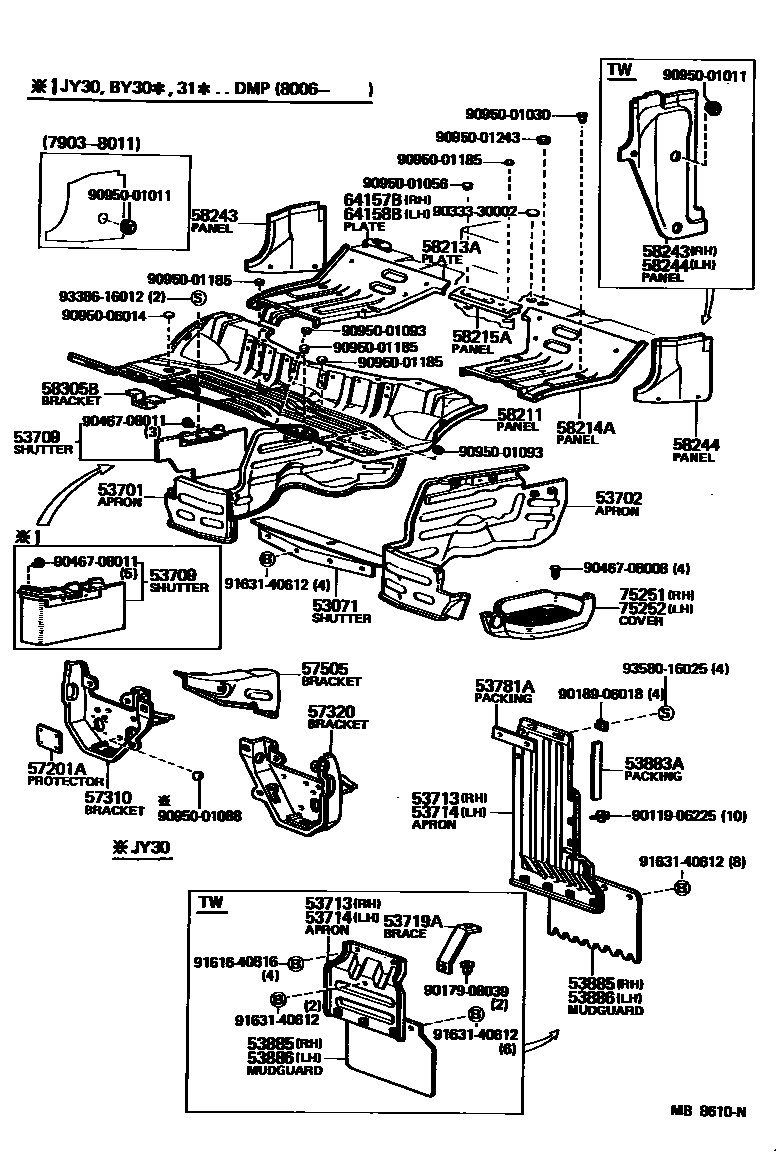

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

53071SHUTTER SUB-ASSY, HOT AIR, UPPER

main53071-95010iJY30,LY20,30,RY20,31197903-198009

main53071-95011iJY30,LY20,30,RY2#,3#198009-198308

main53071-95012iLY21,31198308-198507

main53071-95013iLY20,RY32198308-198507

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95016iBY30,JY30,RY2#,3#197903-198308

main53701-95018iLY20,30197903-198308

main53701-95021iLY2#,31198308-198507

main53701-95022iBY31198308-198507

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95015iBY30,JY30,LY2#,3#,RY2#,3#197903-198507

main53702-95018iLY21,31198308-198507

W/PS

main53702-95019iBY31..DMP198308-198507

53709SHUTTER SUB-ASSY, CONTROL LINK

main53709-95010iLY30..ST;LY20,RY20,31;LY30..T2,VP,VPS,VT197910-198201

main53709-95011iBY30,JY30..(DMP,T3,VPA)..WT198006-198201

main53709-95013iBY3#198201-198507

53713APRON, FENDER SIDE, RH

main53703-95013iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198507

main53703-95014iLY20,3#,RY2#,3#..TW197903-198507

53714APRON, FENDER SIDE, LH

main53703-95014iLY20,3#,RY2#,3#..TW197903-198507

main53704-95015iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT; RY2#..T1..125197903-198507

NDK

53719ABRACE, FENDER APRON

main53719-95012×2iLY20,30,RY20,31..TW1197903-198201

main53719-95013iLY30..10T198101-198201

LH

53781APACKING, FRAME BACK

main53781-95010×2iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198507

53883APACKING, FRONT MUDGUARD, UPPER

main53879-95010×2iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198507

53885MUDGUARD, FRONT RH

main53881-95010iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198507

main53881-95011iLY20,3#,RY2#,3#..TW197903-198507

53886MUDGUARD, FRONT LH

main53881-95010iBY3#,JY30,LY2#,3#,RY2#,3#..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198507

main53881-95011iLY20,3#,RY2#,3#..TW197903-198507

57201APROTECTOR, FRONT FLOOR MOUNTING & FRONT CROSSMEMBER

main17768-95010iJY30..15T198004-198308

57310BRACKET ASSY, FRONT MOUNTING, RH

main57310-95018iLY20,30,RY20,31197903-198201

main57310-95019iJY30197903-198201

main57310-95020iBY30198009-198201

main57310-95021iLY20,30,RY21,32198201-198308

main57310-95022iJY30198201-198308

main57310-95023iLY2#,31198308-198309

main57310-95027iLY2#,31198309-198507

57320BRACKET ASSY, FRONT MOUNTING, LH

main57320-95012iBY30,LY20,30,RY20,31197903-198201

main57320-95013iJY30197903-198201

main57320-95014iBY30,LY20,30,RY21,32198201-198308

main57320-95015iJY30198201-198308

main57320-95019iBY31,LY2#,31,RY21,32198308-198507

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-95014iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

58211PANEL, FRONT FLOOR

main58101-95029iJY30,LY20,30,RY21,32198201-198308

main58101-95032iBY30198201-198308

main58101-95041iBY31198308-198507

main58101-95042iBY31198308-198507

COLD SPEC

main58101-95043iRY21198308-198507

main58101-95044iLY2#,31198308-198507

main58101-95046iRY32198308-198507

main58101-95047iRY21198308-198507

COLD SPEC

main58101-95048iRY32198308-198507

COLD SPEC

main58101-95049iLY2#,31198308-198507

COLD SPEC

main58211-95042iJY30,LY20,30,RY20,31197903-198006

main58211-95051iBY30,JY30,LY20,30,RY20,31198006-198201

58213APANEL, SEAT FLOOR, RH

main58204-95016iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

58214APANEL, SEAT FLOOR, LH

main58214-95015iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

58215APANEL, SEAT FLOOR SIDE

main58215-95011iBY3#,JY30,LY2#,3#,RY21,32198201-198507

58243PANEL, REAR FLOOR SIDE, RH

main58243-95010iBY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198201

main58243-95011iLY20,3#,RY2#,3#..TW197903-198507

main58243-95013iBY3#,JY30,LY2#,3#,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198201-198507

58244PANEL, REAR FLOOR SIDE, LH

main58244-95010iBY30,JY30,LY20,30,RY20,31..DMP,T1,T2,T3,VP,VPA,VPS,VT197903-198201

main58244-95011iLY20,3#,RY2#,3#..TW197903-198507

main58244-95013iBY3#,JY30,LY2#,3#,RY21,32..DMP,T1,T2,T3,VP,VPA,VPS,VT198201-198507

58305BBRACKET ASSY, HEATER HOSE

main58305-95600×2iJY30,LY2#,3#,RY2#,3#197903-198507

64157BPLATE, BACK FRAME, REAR SIDE, RH

main64157-95011iLY20,3#,RY2#,3#..TW198110-198507

64158BPLATE, BACK FRAME, REAR SIDE, LH

main64158-95011iLY20,3#,RY2#,3#..TW198110-198507

75251COVER, STEP PLATE FRONT, RH

main51771-95015iBY30,JY30,LY20,30,RY2#,3#197903-198308

main51771-95016iBY31,LY2#,31198308-198507

75252COVER, STEP PLATE FRONT, LH

main51772-95016iBY3#,JY30,LY2#,3#,RY2#,3#197903-198507

9011906225

main90119-06225

9017908039

main90179-08039

9018906018

main90189-06018

9033330002

main90333-30002

9046708008

main90467-08008

9046708011

main90467-08011

9095001011

main90950-01011

9095001030

main90950-01030

9095001056

main90950-01056

9095001088

main90950-01088

9095001093

main90950-01093

9095001185

main90950-01185

9095001243

main90950-01243

9095006014

main90950-06014

9161640816

main91616-40816

9163140612

main91631-40612

9338616012

main93386-16012

9358016025

main93580-16025

44 parts on this diagram · 2 diagrams in section
