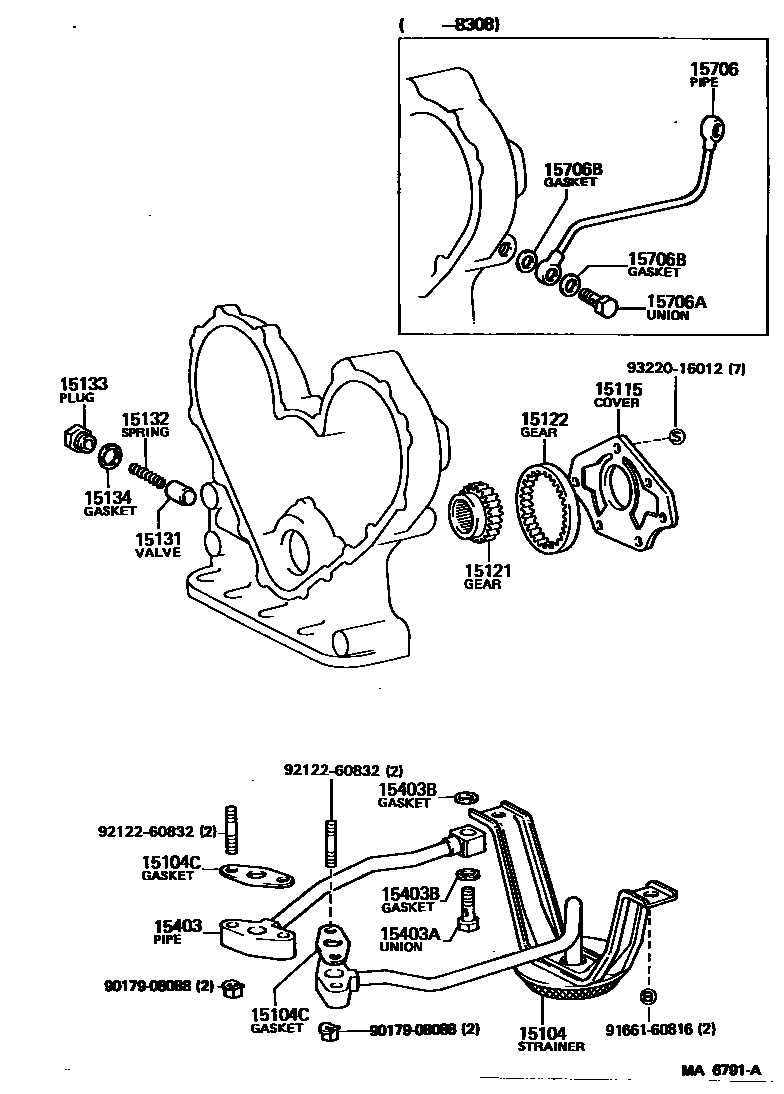

ENGINE OIL PUMP

0001 1 0002 1 MA3071F,MA0259I 0004 1 MA3356,MA3697

15104STRAINER SUB-ASSY, OIL

main15104-44011i5R..RY3#197903-198507

main15104-47020i2J..JY30197903-198308

main15104-54020iL..LY20,30197903-198111

main15104-54021iL..LY20,30198111-198202

main15104-54022iL,2L..LY2#,3#198202-198507

main15104-56040iB..BY3#198009-198408

main15104-56050iB..BY31198408-198507

15104CGASKET(FOR OIL STRAINER)

main15149-54010iL..LY20,30197903-198202

main15149-54011iL,2L..LY2#,3#198202-198507

main15193-56010×2iB..BY3#198109-198408

main15193-56020×2iB..BY31198408-198507

main15422-56020×2iB..BY30198009-198109

15115COVER, OIL PUMP

main15012-31040i12R..RY2#197903-198507

main15012-44030i5R..RY3#197903-198507

main15115-48020i2J..JY30197903-198308

main15115-54010iL..LY20,30197903-198202

main15115-54011iL,2L..LY2#,3#198202-198504

main15115-54012iL,2L..LY2#,31198504-198507

main15115-56030iB..BY3#198009-198507

15121GEAR, OIL PUMP DRIVE

main15121-38020iL..LY20,30197903-198202

main15121-46011i2J..JY30197903-198308

N=7

main15121-54010iL,2L..LY2#,3#198202-198507

main15121-56030iB..BY3#198009-198507

N=25

15122GEAR, OIL PUMP DRIVEN

main15122-38020iL..LY20,30197903-198202

main15122-54010iL,2L..LY2#,3#198202-198507

main15122-56030iB..BY3#198009-198507

N=31

main15122-60010i2J..JY30197903-198308

N=7

15131VALVE, OIL PUMP RELIEF

main15131-24010i12R,5R..RY2#,3#; 2J..JY30; B..BY3#197903-198507

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i12R,5R..RY2#,3#197903-198507

main15132-46010i2J..JY30197903-198308

main15132-76011iB..BY3#198009-198507

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB..BY3#198009-198507

main15133-24010i2J..JY30197903-198308

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB..BY3#198009-198507

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56040iB..BY3#198009-198408

main15403-56041iB..BY31198408-198507

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-18002iB..BY3#198009-198507

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-18012×2iB..BY3#198009-198507

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010iB..BY30198009-198308

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90044-01010iB..BY30198009-198308

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026×2iB..BY30198009-198308

9017908088

main90179-08088

9166160816

main91661-60816

9212260832

main92122-60832

9322016012

main93220-16012

19 parts on this diagram · 3 diagrams in section
