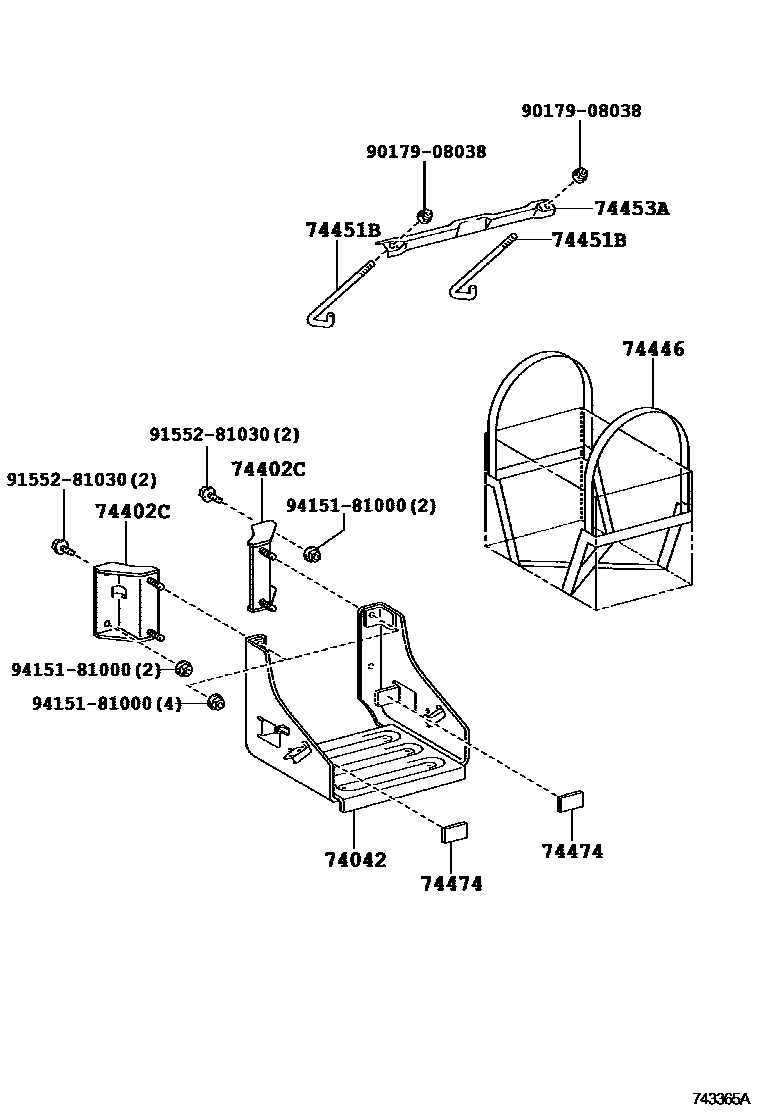

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-37300iXZU282201203

74402CBRACKET SUB-ASSY, BATTERY CARRIER, REAR

main74402-37081×2iXZU282201203

74446BAND, BATTERY

main74446-26010×2iXZU282201203

74451BBOLT, BATTERY CLAMP

main74451-37011×2iXZU282201203

74453ABAR, BATTERY SET PLATE

main74453-36070iXZU282201203

74474PAD, BATTERY

main74475-36040×2iXZU282201203

9017908038

main90179-08038

9155281030

main91552-81030

9415181000

main94151-81000

9 parts on this diagram · 1 diagram in section
