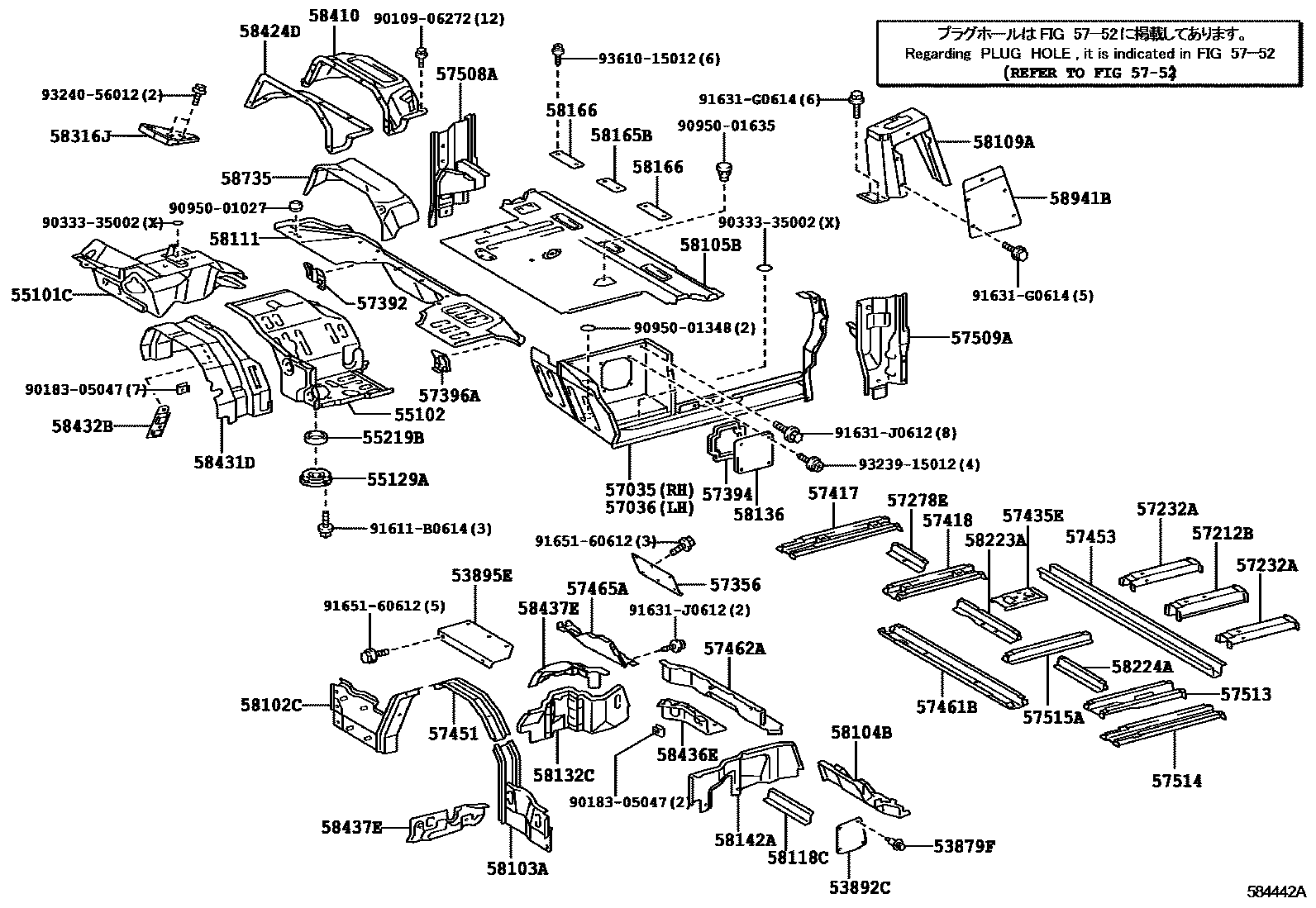

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

53879FRETAINER, FRONT FENDER LINER

main90467-08180×4iXZU282201203

53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH

main53892-37070iXZU282201203

53895ESHIELD, FRONT FENDER SPLASH, FRONT RH

main53895-37030iXZU282201203

55101CPANEL SUB-ASSY, TOE BOARD

main55101-37050iXZU282201203

55102PANEL SUB-ASSY, DASH, LOWER

main55102-37031iXZU282201203

55129ACOVER, FRONT FLOOR HOLE

main55129-26010iXZU282201203

55219BPACKING, DASH PANEL HOLE COVER

main55219-26010iXZU282201203

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-37030iXZU282201203

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-37050iXZU282201203

57212BSTRENGTH, ANCHOR, NO.2

main57212-37010iXZU282201203

57232ASTRENGTH, ANCHOR SIDE, NO.2

main57232-37021×2iXZU282201203

57278EGUSSET, NO.6 CROSSMEMBER, UPPER

main57278-37010iXZU282201203

57356GUSSET, FRONT STEP, REAR RH

main57356-37010iXZU282201203

57392PLATE, FRONT STEP, NO.2 RH

main57393-37010iXZU282201203

57394PACKING, FRONT STEP SERVICE HOLE

main69838-37011iXZU282201203

57396APLATE, FRONT STEP, NO.2 LH

main57397-37010iXZU282201203

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-37030iXZU282201203

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57506-37040iXZU282201203

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-37010iXZU282201203

57451MEMBER, FRONT FLOOR CROSS

main57451-37230iXZU282201203

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57503-37040iXZU282201203

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-37030iXZU282201203

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57462-37030iXZU282201203

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-37020iXZU282201203

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-37011iXZU282201203

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-37050iXZU282201203

57513REINFORCEMENT, FRONT FLOOR, LH

main57504-37010iXZU282201203

57514REINFORCEMENT, FRONT FLOOR SIDE, LH

main57514-37010iXZU282201203

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57515-37030iXZU282201203

5752HOLE PLUG

→ Go to FIG 57-52

58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main58102-37030iXZU282201203

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-37080iXZU282201203

58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH

main58104-37010iXZU282201203

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-37050supersedes 58105-37041iXZU282201203

58109ARETAINER SUB-ASSY, PARKING BRAKE

main58109-37030-B0iXZU282201203-201212

BLUISH GRAY,TRIM1#

58111PAN, FRONT FLOOR

main58111-37660iXZU282201203

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-37010iXZU282201203

58132CAPRON, FRONT FLOOR SIDE, NO.1 RH

main53707-37150iXZU282201203

58136COVER, FRONT FLOOR HOLE

main57399-25010iXZU282201203

58142AAPRON, FRONT FLOOR SIDE, NO.1 LH

main58142-37090iXZU282201203

58165BCOVER, FRONT FLOOR, RH

main58165-37010-A0iXZU282201203-201212

WHITE,TRIM12

main58165-37010-A1iXZU282201203-201212

YAMATOUNYU JORSEY CR,TRIM12

58166COVER, FRONT FLOOR, LH

main58166-37011-A0×2iXZU282201203-201212

WHITE,TRIM12

main58166-37011-A1×2iXZU282201203-201212

YAMATOUNYU JORSEY CR,TRIM12

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58277-37030iXZU282201203

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58287-37030iXZU282201203

58316JPLATE, FOOTREST, REAR

main58316-37080iXZU282201203

58410COVER, ENGINE SERVICE HOLE

main58401-37040-B0iXZU282201203-201212

BLUISH GRAY,TRIM1#

58424DPACKING, ENGINE COVER

main58424-37060iXZU282201203

58431DSILENCER, ENGINE ROOM SIDE, FRONT RH

main58431-37031iXZU282201203

58432BSILENCER, ENGINE ROOM SIDE, REAR RH

main58432-37040iXZU282201203

58436ESILENCER, FRONT FLOOR SIDE, A

main58436-37051iXZU282201203

58437ESILENCER, FRONT FLOOR SIDE, B

main58437-37041iXZU282201203

58735SILENCER, ENGINE

main58735-37071iXZU282201203

58941BCOVER, PARKING BRAKE HOLE

main58941-37040-B0iXZU282201203-201212

BLUISH GRAY,TRIM1#

9010906272

main90109-06272

9018305047

main90183-05047

9033335002

main90333-35002

9095001027

main90950-01027

9095001348

main90950-01348

9095001635

main90950-01635

91611B0614

main91611-B0614

91631G0614

main91631-G0614

91631J0612

main91631-J0612

9165160612

main91651-60612

9323915012

main93239-15012

9324056012

main93240-56012

9361015012

main93610-15012

66 parts on this diagram · 1 diagram in section
