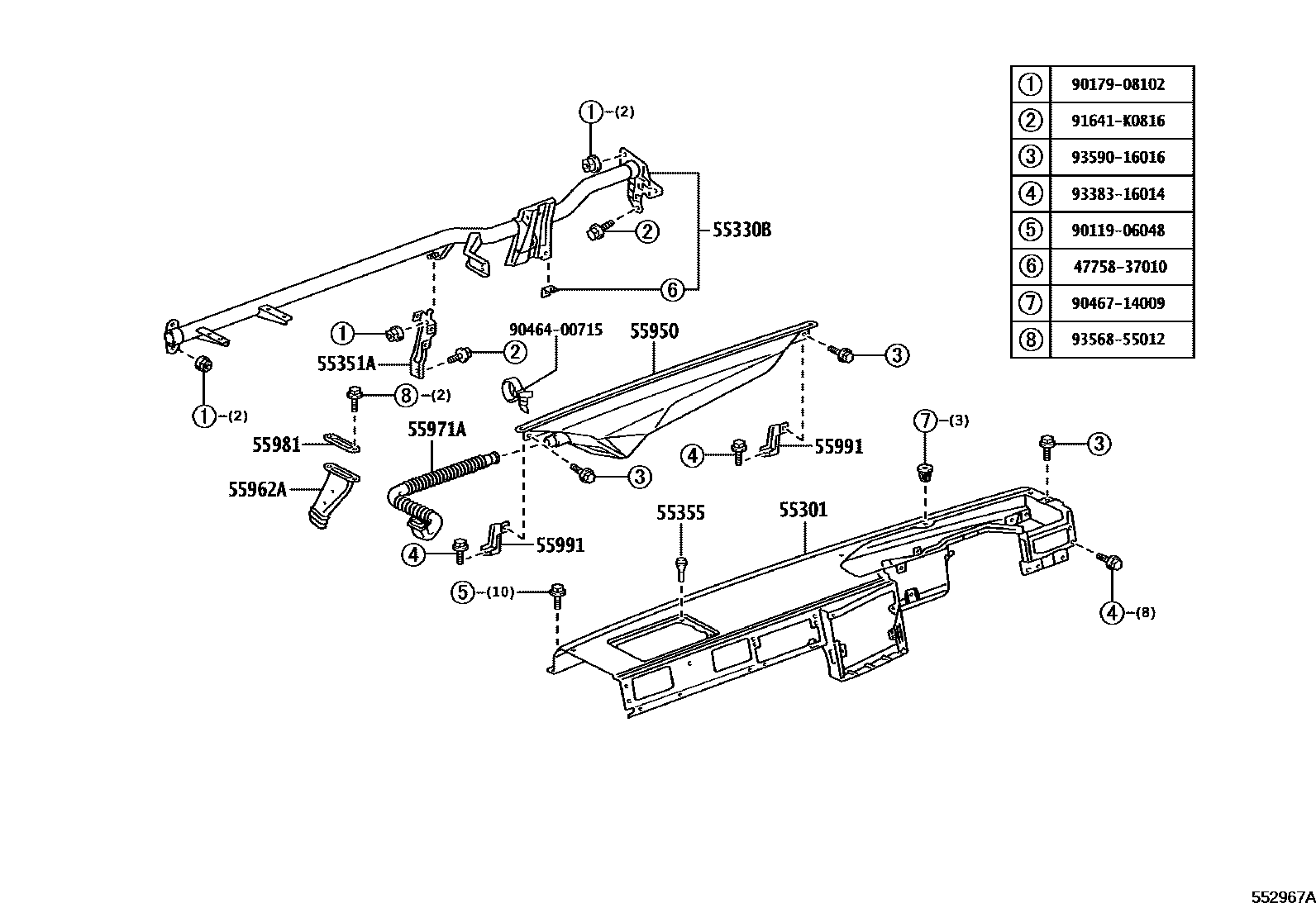

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55300-37031-B0supersedes 55300-37010-B0iXZU282201203-201212

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-37073iXZU282201203

55351ABRACE, INSTRUMENT PANEL TO FLOOR

main55351-37060iXZU282201203

55355CUSHION, INSTRUMENT PANEL, NO.1

main90541-07093×2iXZU282201203

55950NOZZLE ASSY, DEFROSTER

main55950-37080iXZU282201203

55962ANOZZLE, SIDE DEFROSTER, LH

main55962-37010iXZU282201203

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-37071iXZU282201203

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-37010iXZU282201203

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-37010×2iXZU282201203

4775837010BRACKET, WIRE CLAMP, RH NO.1

main47758-37010

9011906048

main90119-06048

9017908102

main90179-08102

9046400715

main90464-00715

9046714009

main90467-14009

91641K0816

main91641-K0816

9338316014

main93383-16014

9356855012

main93568-55012

9359016016

main93590-16016

18 parts on this diagram · 4 diagrams in section
