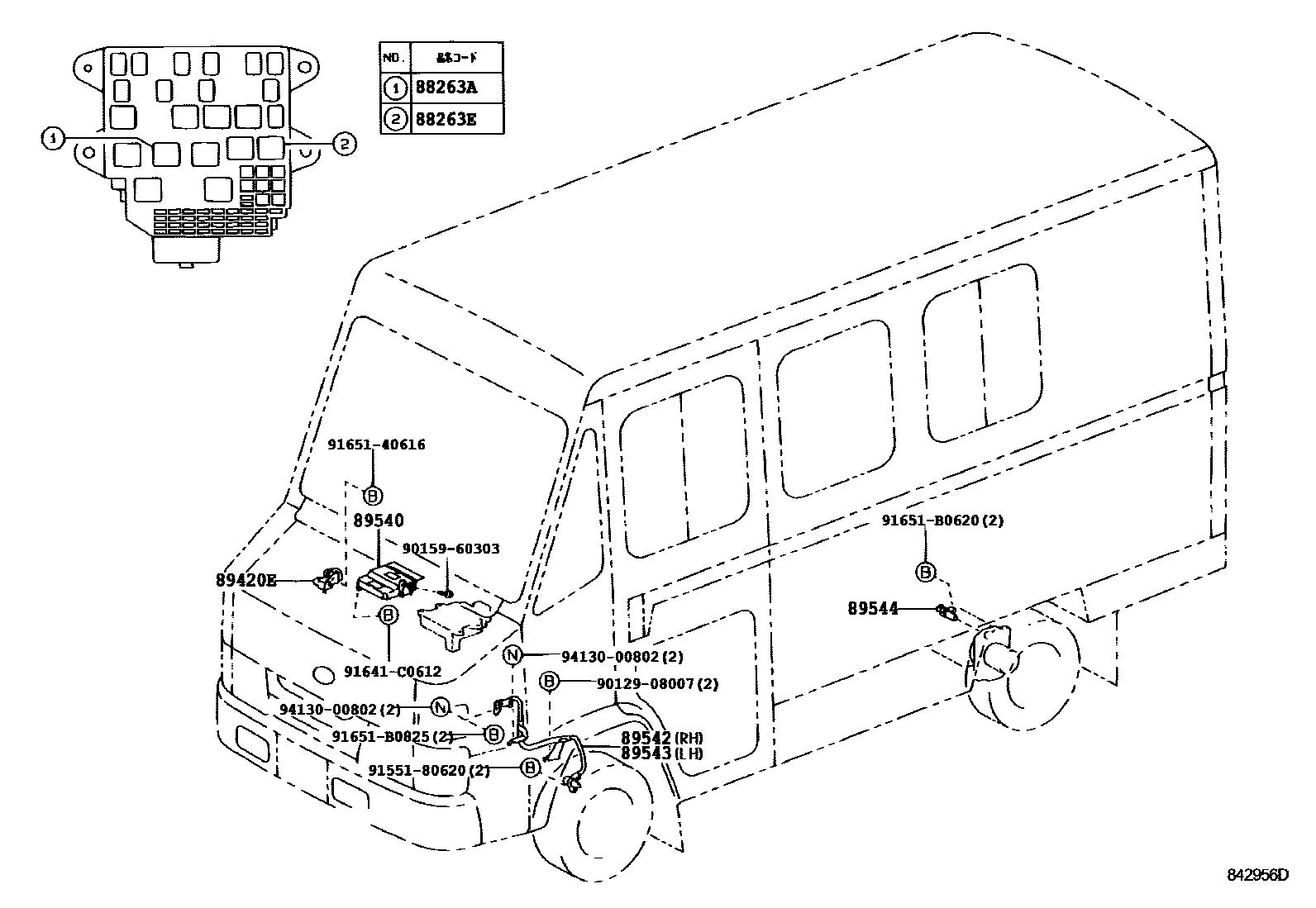

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-36040iBU280..DSL199908-200406

main88263-37010iLY228,270200001-200407

88263ERELAY, SKID CONTROL NO.2

main88263-36050iXZU280199908-200610

main88263-37020iRZU280..D200001-200406

89420ESENSOR ASSY, VACUUM

main89420-37010iBU280..LPG199908-200306

89540COMPUTER ASSY, SKID CONTROL

main89540-37110iBU280..DSL199908-200406

main89540-37120iRZU280..N200001-200610

main89540-37170iLY228200108-200407

main89540-37180iLY270200108-200407

main89540-37470iXKU280200610

89542SENSOR, SPEED, FRONT RH

main89542-25010iLY228,270200108-200407

main89542-37110iBU280,RZU280,XZU280199908-200610

89543SENSOR, SPEED, FRONT LH

main89543-25010iLY228,270200108-200407

main89543-37110iBU280,RZU280,XZU280199908-200610

89544SENSOR, SKID CONTROL

main89544-36030×2iBU280,LY228,270,RZU280,XZU280199908-200610

9012908007

main90129-08007

9015960303

main90159-60303

9155180620

main91551-80620

91641C0612

main91641-C0612

9165140616

main91651-40616

91651B0620

main91651-B0620

91651B0825

main91651-B0825

9413000802

main94130-00802

15 parts on this diagram · 2 diagrams in section
