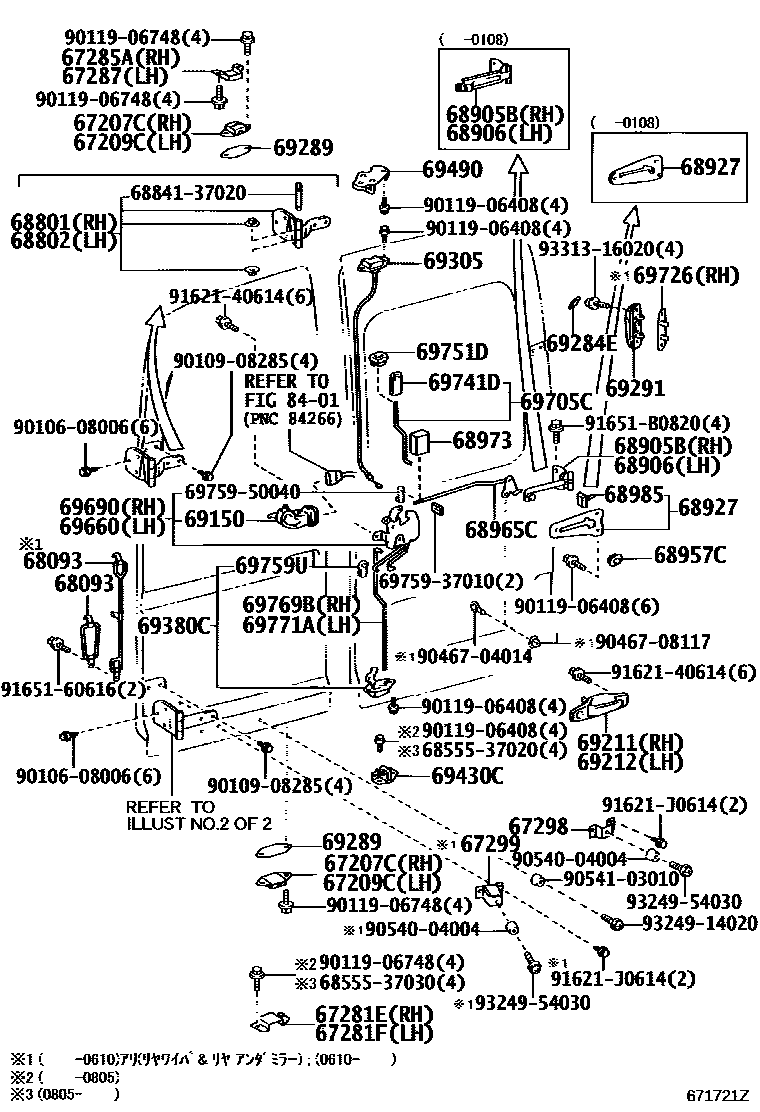

BACK DOOR LOCK & HINGE

0001 1 0002 1

67207CSTOPPER SUB-ASSY, BACK DOOR

main67207-37010×2iRZU280,XZU28#200412-200610

main67207-90D00×2iRZU280,XZU28#..N199908-200412

67209CSTOPPER SUB-ASSY, BACK DOOR, NO.3

main67209-37010×2iXKU280200610

main67209-90A01×2iLY228,270199908-200407

67281ESTOPPER, BACK DOOR DOWN MALE

main67281-37010iBU280..LPG199908-200306

main67281-37011iBU28#;RZU280..D200401-200406

main67281-37012iXKU280200805

67281FSTOPPER, BACK DOOR, LOWER

main67281-37020iBU280..LPG199908-200306

main67281-37021iBU28#;RZU280..D200401-200406

main67281-37022iXKU280200805

67285AANTI-RATTLE, BACK DOOR, RH

main67285-37010iBU280..LPG199908-200306

main67285-37011iRZU280,XZU28#200412-200610

67287ANTI-RATTLE, BACK DOOR, LH

main67285-37010iBU280..LPG199908-200306

main67285-37011iRZU280,XZU28#200412-200610

67298BRACKET, BACK DOOR STOPPER, NO.1

main67298-37010-A0iBU280,LY228,270,RZU280..D199908-200407

WHITE,058

main67298-37010-A1iXKU280200610-201109

YAMATOUNYU COBALT GR,9A7

67299BRACKET, BACK DOOR STOPPER, NO.2

main67299-37010-A0iBU280..D..DSL199908-200312

WHITE,058

main67299-37010-A1iLY228,270200108-200407

YAMATOUNYU COBALT GR,9A7

68093STAY SUB-ASSY, BACK DOOR, NO.2

main68093-37010iBU280..LPG199908-200306

main68094-37010iBU280..D..DSL199908-200406

main68094-37020iXKU280200610

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-37010iBU28#,LY228,270199908-200210

main68801-37011iBU280..LPG200210-200306

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-37010iBU28#,LY228,270199908-200210

main68802-37011iBU280..LPG200210-200306

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-37010iBU28#199908-200108

main68905-37011iBU280..LPG200108-200306

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-37010iBU28#199908-200108

main68906-37011iRZU280..D;BU28#..DSL200108-200406

68927BASE, BACK DOOR STAY

main68091-37010iXKU280200610

main68092-37010iRZU280..D;BU28#..DSL200108-200406

main68925-37010iBU28#199908-200108

main68927-37010iBU28#199908-200108

68957CHOLDER, BACK DOOR STAY

main68957-37010×2iBU280..LPG199908-200306

68965CSHAFT, BACK DOOR STAY

main68907-37010iLY228,270199908-200407

main68908-37010iBU280..LPG199908-200306

68973CUSHION, BACK DOOR STAY

main68973-37010×2iBU280..LPG199908-200306

68985STOPPER, BACK DOOR UPPER STAY

main68984-37010×2iRZU280,XZU28#..N200108-200610

69150ACTUATOR ASSY, BACK DOOR LOCK

main85470-37010×2iLY228,270;BU280..LPG200001-200204

main85470-37011×2iXKU280200610

main85470-37020×2iBU28#..N..DSL199908-200204

main85470-37021×2iBU280..D..DSL200206-200610

69211HANDLE, BACK DOOR OUTSIDE, RH

main69090-37010iBU280..LPG199908-200306

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-37010iRZU280..D;BU28#..DSL199908-200406

69284EPLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-C0×4iBU28#,LY228,270,RZU280,XZU28#199908-200610

BLACK,TRIM1#

69289SHIM, BACK DOOR STOPPER

main69289-90A00iRZU280..D;BU28#..DSL199908-200406

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-37030-C0iBU28#,LY228,270,RZU280,XZU28#199908-200610

main69206-37030-C0iBU28#,LY228,270,RZU280,XZU28#199908-200610

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69350-37010×2iBU280..LPG199908-200306

69380CLOCK ASSY, BACK DOOR, LOWER

main69380-37010×2iBU280..LPG199908-200306

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-90D00×2iBU280..LPG199908-200306

main69450-37010×2iXKU280200610-200805

main69450-37011×2iXKU280200805

69490STRIKER ASSY, BACK DOOR LOCK

main69430-95701×2iBU280199908-199911

main69470-37010×2iLY228,270199912-200407

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69670-37010iBU280..LPG200001-200204

main69670-37011iXKU280200610

main69670-37020iBU28#..N..DSL199908-200204

main69670-37021iBU280..D..DSL200206-200406

main69670-37030iLY228,270199908-200407

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-37010iBU280..LPG200001-200204

main69690-37011iRZU280,XZU281..N..LPG200204-200610

main69690-37020iBU28#..N..DSL199908-200204

main69690-37021iBU280..D..DSL200206-200406

main69690-37030iLY228,270199908-200407

69705CLINK SUB-ASSY, BACK DOOR LOCK CONTROL

main69705-37010-C0iBU28#,LY228,270,RZU280,XZU28#199908-200610

BLACK,TRIM1#

69726PROTECTOR, BACK DOOR LOCK CONTROL

main69726-37010iBU280..D..DSL199908-200406

69741DKNOB, DOOR LOCK CONTROL(FOR BACK DOOR)

main69741-90K00-C0×2iBU28#,LY228,270,RZU280,XZU28#199908-200610

BLACK,TRIM1#

69751DHOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)

main69751-12020-C0×2iBU28#,LY228,270,RZU280,XZU28#199908-200610

BLACK,TRIM1#

69759USNAP, BACK DOOR LOCK CONTROL LINK

main69759-24010×4iBU280..LPG199908-200306

69769BROD, BACK DOOR LOWER LOCK CONTROL

main69769-37010iBU280..LPG199908-200306

69771AROD, BACK DOOR LOWER LOCK CONTROL, NO.1

main69771-37010iBU280..LPG199908-200306

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6855537020BOLT, DOOR STAY

main68555-37020

6855537030BOLT, DOOR STAY

main68555-37030

6884137020COVER, TORSION BAR, RH

main68841-37020

6975937010SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-37010

6975950040SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-50040

9010608006

main90106-08006

9010908285

main90109-08285

9011906408

main90119-06408

9011906748

main90119-06748

9046704014

main90467-04014

9046708117

main90467-08117

9054004004

main90540-04004

9054103010

main90541-03010

9162140614

main91621-40614

91621J0614

main91621-J0614

9165160616

main91651-60616

91651B0820

main91651-B0820

9324914020

main93249-14020

9324954030

main93249-54030

9331316020

main93313-16020
