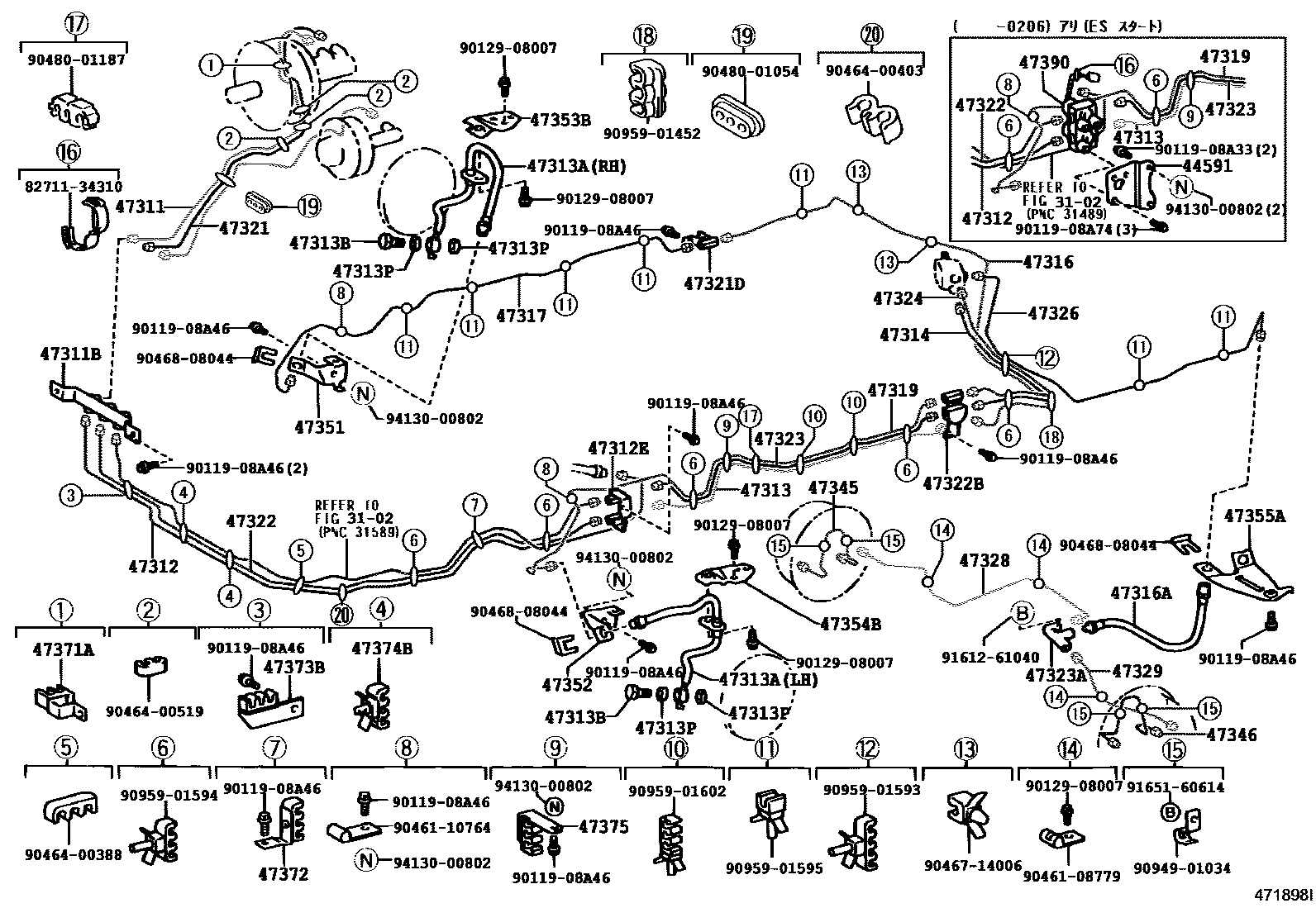

BRAKE TUBE & CLAMP
3102CLUTCH PEDAL & FLEXIBLE HOSE
44591BRACKET, BRAKE ACTUATOR, NO.1
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
47319TUBE, FRONT BRAKE, NO.9
47321TUBE, REAR BRAKE, NO.1
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47322BWAY, NO.2(FOR REAR BRAKE TUBE)
47323TUBE, REAR BRAKE, NO.3
47323AWAY, NO.3(FOR REAR BRAKE TUBE)
47324TUBE, REAR BRAKE, NO.4
47326TUBE, REAR BRAKE, NO.6
47328TUBE, REAR BRAKE, NO.8
47329TUBE, REAR BRAKE, NO.9
47345TUBE, WHEEL CYLINDER, REAR RH
47346TUBE, WHEEL CYLINDER, REAR LH
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47355ABRACKET, FLEXIBLE HOSE, NO.5
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47390VALVE ASSY, HILL HOLDER BRAKE LOCK
8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-34310
9011908A33
main90119-08A33
9011908A46
main90119-08A46
9011908A74
main90119-08A74
9012908007
main90129-08007
9046108779
main90461-08779
9046110764
main90461-10764
9046400388
main90464-00388
9046400403
main90464-00403
9046400519
main90464-00519
9046714006
main90467-14006
9046808044
main90468-08044
9048001054
main90480-01054
9048001187
main90480-01187
9094901034
main90949-01034
9095901452
main90959-01452
9095901593
main90959-01593
9095901594
main90959-01594
9095901595
main90959-01595
9095901602
main90959-01602
9161261040
main91612-61040
9165160614
main91651-60614
9413000802
main94130-00802
61 parts on this diagram · 9 diagrams in section
