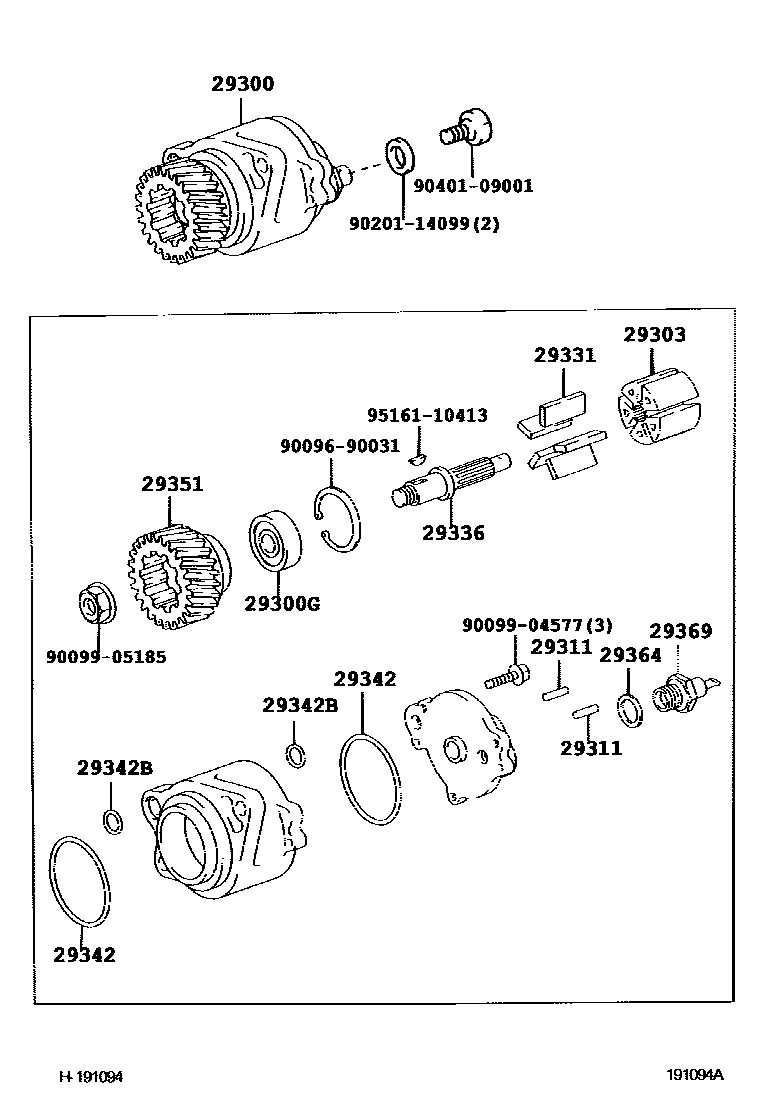

VACUUM PUMP

0001 1 0002 1 0003 1 0004 1

29300PUMP ASSY, VACUUM

main29300-54180i5L..LY228,270200108-200407

main29300-58060i4B..BU28#199908-200405

main29300-78060iN04C..XZU28#200406

main29300-78061iN04C..XKU280201010-201202

29300GBEARING, BALL

main90099-10185i4B..BU28#199908-200405

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020iN04C..XKU280200610

main29337-27010i4B..BU28#199908-200405

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i4B..BU28#199908-200405

29331BLADE, VACUUM PUMP, A

main29331-27010×5i4B..BU28#199908-200405

main29331-54130×5i5L..LY228,270200108-200407

main29331-67020×5iN04C..XZU28#200406

29336SHAFT, VACUUM PUMP

main29336-58040i4B..BU28#199911-200405

main29336-58050iN04C..XKU280200610

main29336-58060i4B..BU280199908-199911

main29336-64031i5L..LY228,270200108-200407

29342PACKING, VACUUM PUMP

main29342-17010iN04C..XZU28#200406-200610

main29342-58010×2i4B..BU28#199908-200405

29342BRING, O

main29342-58010iN04C..XKU280200610

main29342-64010×2i4B..BU28#199908-200405

main29342-64030i5L..LY228,270200108-200407

29351GEAR, VACUUM PUMP

main29351-58050i4B..BU28#199908-200405

main29351-78061iN04C..XKU280201010

29364WASHER, VACUUM PUMP

main29364-66010i4B..BU28#199908-200405

29369VALVE SUB-ASSY, CHECK

main29369-64030i4B..BU28#199908-200405

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9516110413

main95161-10413

17 parts on this diagram · 4 diagrams in section
