STARTER

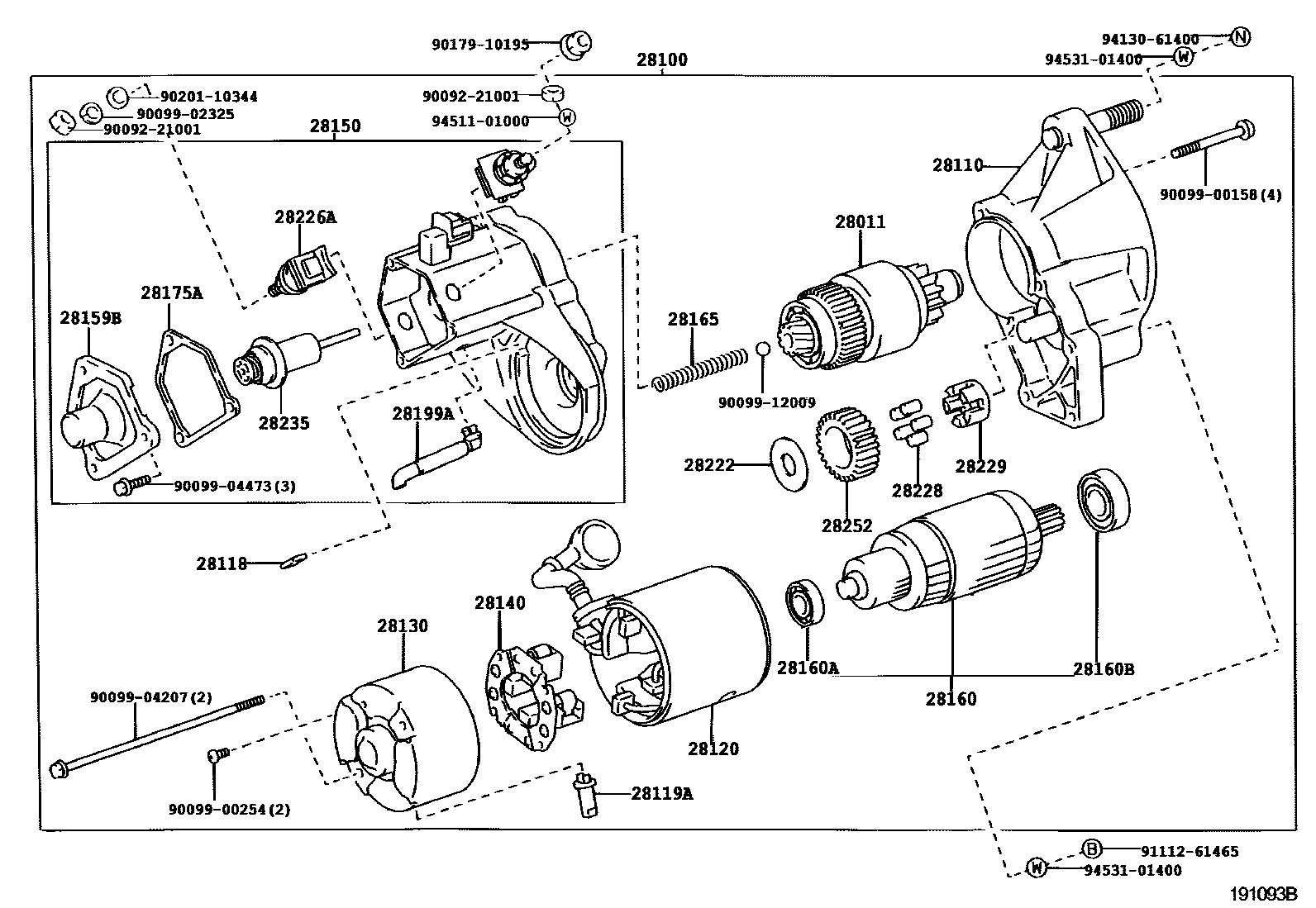

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-54010i200108-200407

main28011-54450i200108-200407

main28011-76070i200001-200610

main28011-78110i200406-200506

main28011-78111i200506-200610

28100STARTER ASSY

main28100-54430i200108-200407

main28100-54450i200108-200407

main28100-58020i199908-200406

main28100-75170i200001-200610

main28100-78120i200406-200505

main28100-78121i200506-200507

main28100-78122i200508-200610

28110HOUSING ASSY, STARTER DRIVE

main28110-56331i199908-200406

main28110-75090i200001-200610

main28115-54011i200108-200407

main28115-54260i200108-200407

28118PLATE(FOR STARTER YOKE)

main28118-77090i199908-200407

28119COVER, STARTER END FRAME

main28199-54190i200108-200407

28119ACOVER, STARTER END FRAME

main28199-46080i199908-200407

main28199-75170i200001-200610

28120YOKE ASSY, STARTER

main28120-56081i200108-200407

main28120-56330i199908-200406

main28120-64040i200108-200407

main28120-66040i200001-200610

main28120-78120i200406-200610

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-54430i200108-200407

main28130-56260i199908-200406

main28130-64170i200001-200610

28140HOLDER ASSY, STARTER BRUSH

main28140-64040i200108-200407

main28140-76070i200001-200610

main28140-77090i199908-200407

main28140-78120i200406-200610

28150SWITCH ASSY, MAGNET STARTER

main28150-22050i200111-200208

main28150-54320i200108-200407

main28150-54330i200108-200407

main28150-58020i199908-200406

main28150-75170i200001-200111

main28150-75171i200306-200610

28159BCOVER, MAGNET SWITCH

main28159-10040i200108-200407

main28159-55050i200001-200306

main28159-56310i200108-200407

28160ARMATURE ASSY, STARTER

main28160-54160i200108-200407

main28160-56140i199908-200406

main28160-64041i200108-200407

main28160-75060i200001-200610

main28160-78110i200406-200610

28160ABEARING, STARTER ARMATURE

main28253-54070i200108-200407

main90099-10131i199908-200405

main90099-10196i200001-200610

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10139i200001-200610

main90099-10143i200108-200407

main90099-54120i200108-200407

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i200108-200407

main28165-76070i200001-200610

main28165-77090i199908-200407

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i200108-200407

main28175-55050i200001-200306

main28175-56310i200003-200405

28199APROTECTOR, DUST STARTER

main28199-58020i199908-200610

28222WASHER, STARTER IDLE GEAR CLUTCH

main28222-77090i199908-200407

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i200306-200610

main28226-54320i200108-200407

main28226-54330i200108-200407

12V 2.2KW

main28226-64230i200001-200101

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i200108-200407

main28226-72010i200108-200407

main28226-74070i200306-200312

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i200001-200610

main28228-56080×5i200108-200407

28229RETAINER, STARTER IDLE GEAR

main28229-26040i200108-200407

main28229-56080i199908-200407

main28229-74070i200001-200610

28235PLUNGER, MAGNET SWITCH

main28235-17030i200108-200407

main28235-35080i200108-200407

main28235-55050i200306-200312

28252GEAR, STARTER IDLE

main28254-64040i200108-200407

main28254-74070i200001-200610

main28254-77090i199908-200407

9009221001

main90092-21001

9009900158

main90099-00158

9009900254

main90099-00254

9009902325

main90099-02325

9009904207

main90099-04207

9009904473

main90099-04473

9009912009

main90099-12009

9017910195

main90179-10195

9020110344

main90201-10344

9111261465

main91112-61465

9413061400

main94130-61400

9451101000

main94511-01000

9453101400

main94531-01400

37 parts on this diagram · 5 diagrams in section
