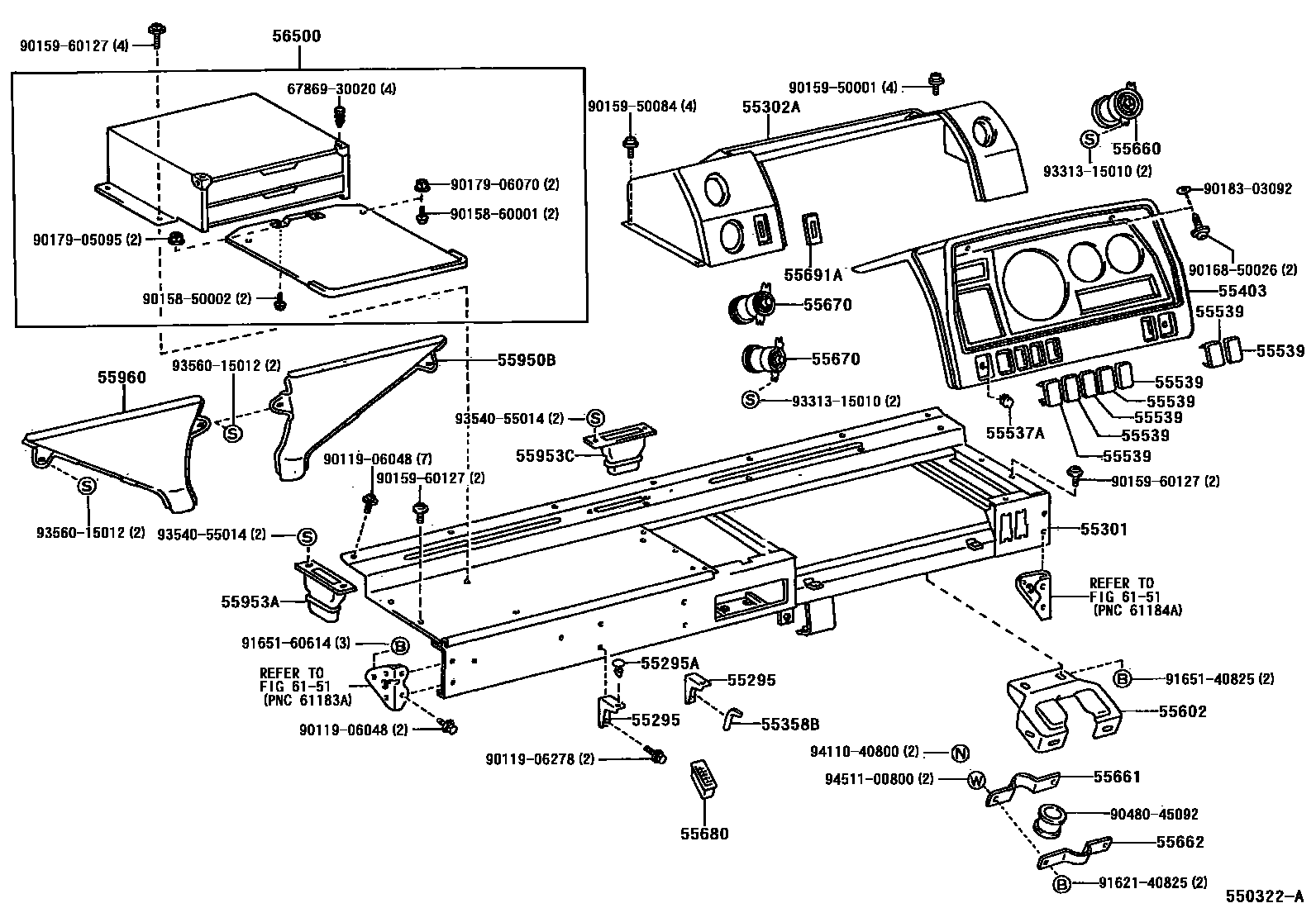

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55295STAY, TABLE, NO.1

main55295-90D02-B0×2iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

55295ACLIP(FOR TABLE STAY)

main90467-10045-C0×2iLH8#,LY15#199505

BLACK,TRIM1#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-90D33-B0iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

main55301-90D34-B0iLH8#,LY15#199505

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-90D03-B0iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

55358BPROTECTOR, KNEE

main55358-90D04-C0iLH8#,LY15#199505

55403HOOD SUB-ASSY, METER

main55403-90D00-B0iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

main55403-90D01-B0iLH8#,LY15#199505

55537ACOVER, THROTTLE KNOB HOLE

main55537-95010-C0iLH8#,LY15#199505

BLACK,TRIM1#

55539COVER, SPARE SWITCH HOLE

main55539-32010-C0iBU68..D; BU68..N199505-199908

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-90500iLH8#,LY15#199505

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-60060iBU68,LH8#,LY15#,RZU68199505

55661CLAMP, STEERING COLUMN, UPPER

main55612-90501iBU68,LH8#,LY15#,RZU68199505

55662CLAMP, STEERING COLUMN, LOWER

main55612-90501iBU68,LH8#,LY15#,RZU68199505

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-90K00-C0×2iBU68,LH8#,LY15#,RZU68199505

BLACK,TRIM1#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-B1iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

55691APLATE, AIR DAMPER CONTROL NAME, NO.1

main55692-90D00iLH8#,LY15#199505

55950NOZZLE ASSY, DEFROSTER

main55950-25010iBU68,RZU68199505

55950BNOZZLE ASSY, DEFROSTER, RH

main55950-95010iLH8#,LY15#199505

55953AREGISTER, DEFROSTER, CENTER

main55953-95408iLH8#,LY15#199505

55953CREGISTER, DEFROSTER, CENTER

main55953-95408×2iBU68,LH8#,LY15#,RZU68199505

55960NOZZLE ASSY, DEFLOSTER, LH

main55960-90F00iLH8#,LY15#199505

56500CABINET ASSY

main56500-90D03-B0iLH8#,LY15#199505

BLUISH GRAY,TRIM1#

6151SIDE MEMBER

→ Go to FIG 61-51

6786930020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-30020

9011906048

main90119-06048

9011906278

main90119-06278

9015850002

main90158-50002

9015860001

main90158-60001

9015950001

main90159-50001

9015950084

main90159-50084

9015960127

main90159-60127

9016850026

main90168-50026

9017905095

main90179-05095

9017906070

main90179-06070

9018303092

main90183-03092

9048045092

main90480-45092

9162140825

main91621-40825

9165140825

main91651-40825

9165160614

main91651-60614

9331315010

main93313-15010

9354055014

main93540-55014

9356015012

main93560-15012

9411040800

main94110-40800

9451100800

main94511-00800

43 parts on this diagram · 2 diagrams in section
