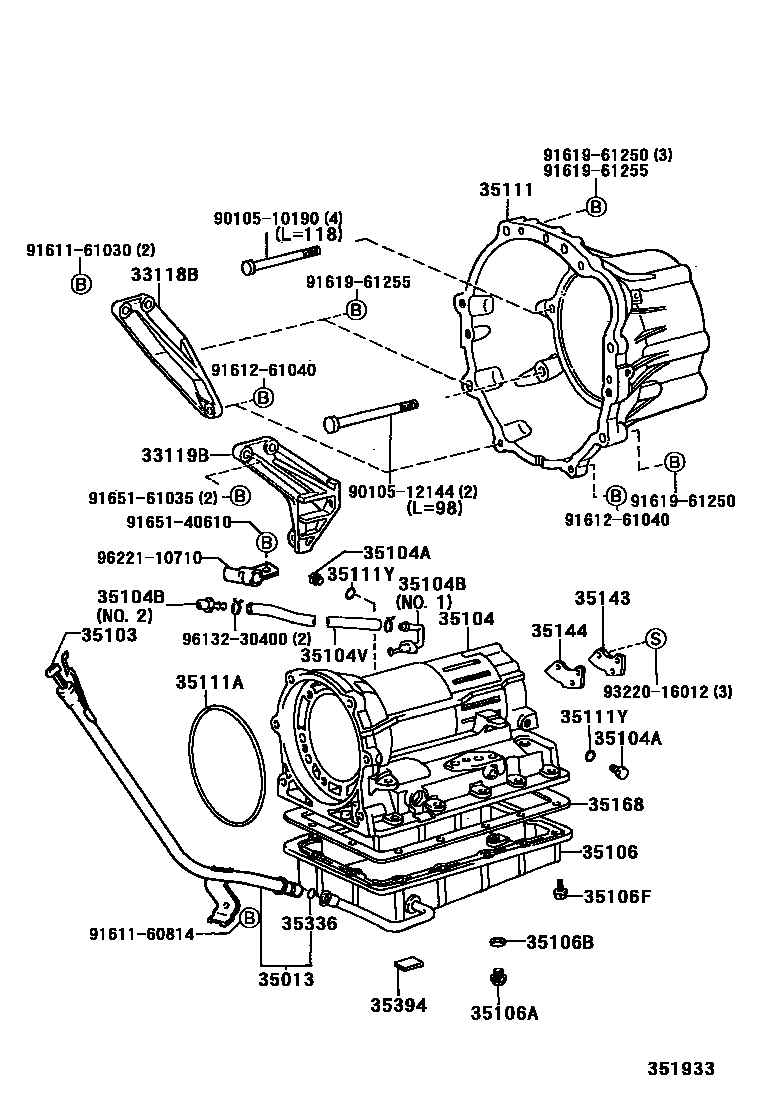

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-25020iLH8#..ATM199505

33119BPLATE, STIFFENER, LH(ATM)

main33119-25020iLH8#..ATM199505

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-25030iLH8#..ATM199505

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-25030iLH8#..ATM199505

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30101iLH8#..ATM199505

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iLH8#..ATM199505

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iLH8#..ATM199505

main90930-03099iLH8#..ATM199505

35104VHOSE (FOR BREATHER PLUG)

main90445-11096iLH8#..ATM199505

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-28030iLH8#..ATM199505

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iLH8#..ATM199505

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iLH8#..ATM199505

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06532×14iLH8#..ATM199505

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22060iLH81..ATM199505-199506

main35111-26030iLH8#..ATM199506

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iLH8#..ATM199505

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iLH8#..ATM199505

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iLH8#..ATM199505

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iLH8#..ATM199505

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iLH8#..ATM199505

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iLH8#..ATM199505

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iLH8#..ATM199505

9010510190

main90105-10190

9010512144

main90105-12144

9161160814

main91611-60814

9161161030

main91611-61030

9161261040

main91612-61040

9161961250

main91619-61250

9161961255

main91619-61255

9165140610

main91651-40610

9165161035

main91651-61035

9322016012

main93220-16012

9613230400

main96132-30400

9622110710

main96221-10710

32 parts on this diagram · 1 diagram in section
