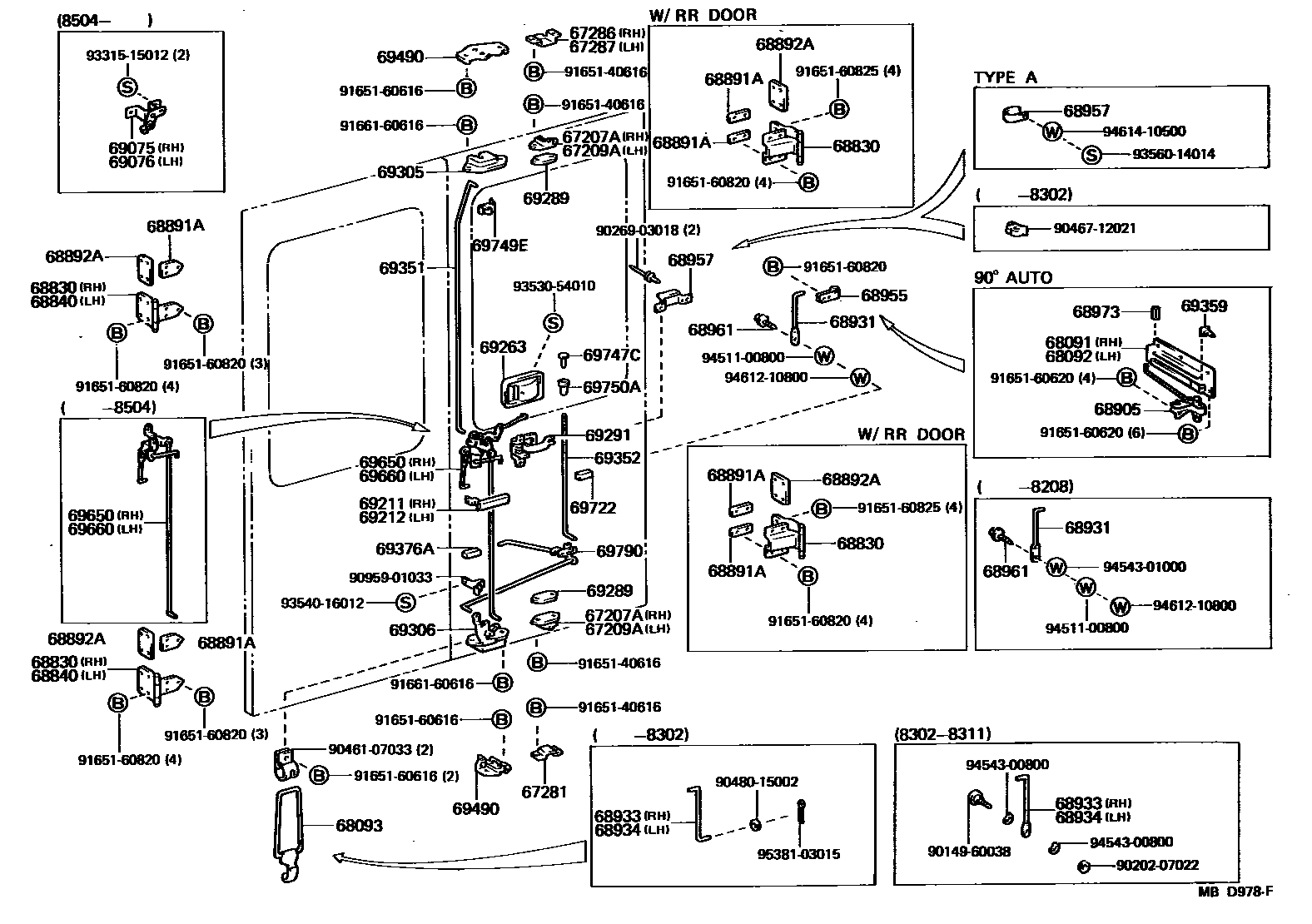

BACK DOOR LOCK & HINGE

67207ASTOPPER SUB-ASSY, BACK DOOR, RH

main67207-90D00×2iLH24198205-198507

67209ASTOPPER SUB-ASSY, BACK DOOR, LH

main67209-90A01×2iLH24198205-198507

67281PLATE, BACK DOOR STOPPER

main67281-90D00×2iLH24198205-198507

67286ANTI-RATTLE, BACK DOOR, RH

main67285-90D00iLH24198205-198507

67287ANTI-RATTLE, BACK DOOR, LH

main67285-90D00iLH24198205-198507

68091RAIL SUB-ASSY, BACK DOOR STAY, RH

main68091-90D00iLH24198210-198507

main68091-90D01iLH24198310-198507

W/RR DOOR

68092RAIL SUB-ASSY, BACK DOOR STAY, LH

main68092-90D00iLH24198210-198507

68093STAY SUB-ASSY, BACK DOOR, NO.2

main68093-90D00×2iLH24198311-198507

68830HINGE ASSY, BACK DOOR, RH

main68801-90D00×2iLH24198205-198507

main68801-90D01×2iLH24198310-198507

W/RR DOOR

68840HINGE ASSY, BACK DOOR, LH

main68802-90D00×2iLH24198205-198507

68891APACKING, BACK DOOR HINGE MALE

main68891-90D00×4iLH24198205-198507

main68891-90D01×4iLH24198310-198507

W/RR DOOR

68892APACKING, BACK DOOR HINGE FEMALE

main68892-90D00×4iLH24198205-198507

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68905-90D00iLH24198210-198507

RH

main68905-90D01iLH24198310-198507

RH,W/RR DOOR

main68906-90D00iLH24198210-198507

LH

68931STAY, BACK DOOR, NO.1

main68931-90D00×2iLH24198205-198208

main68931-90D01×2iLH24198208-198507

L=195

main68931-90D02iLH24198401-198507

L=242

68933STAY, BACK DOOR, NO.2

main68933-90D00iLH24198205-198302

main68933-90D01iLH24198302-198311

68934STAY, BACK DOOR, NO.3

main68933-90D01iLH24198302-198311

main68934-90D00iLH24198205-198302

68955BRACKET, BACK DOOR STAY

main68955-90D00×2iLH24198205-198507

68957BRACKET, BACK DOOR STAY

main68957-90D00×2iLH24198302-198409

main68957-90D01×2iLH24198302-198507

main68957-90D02×2iLH24198403-198507

TYPE A

main90467-12021×2iLH24198210-198302

main90467-12026×2iLH24198210-198302

68961BOLT, BACK DOOR STAY

main65777-90A00iLH24198205-198208

main68961-90D00iLH24198208-198507

68973CUSHION, BACK DOOR STAY

main68973-90D00×2iLH24198210-198507

69075LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.2

main69075-90D00iLH24198504-198507

69076LINK SUB-ASSY, BACK DOOR LOCK CONTROL, NO.3

main69076-90D00iLH24198504-198507

69211HANDLE, BACK DOOR OUTSIDE, RH

main69090-90D01iLH24198302-198507

main69210-14030iLH24198205-198302

69212HANDLE, BACK DOOR OUTSIDE, LH

main69190-90D00iLH24198302-198507

main69220-14030iLH24198205-198302

69263BEZEL, BACK DOOR INSIDE HANDLE

main69277-16040-05×2iLH24198205-198507

BEIGE,BEIGE

69289SHIM, BACK DOOR STOPPER

main69289-90A00×4iLH24198205-198507

T=1.0

69291HANDLE ASSY, BACK DOOR INSIDE

main69205-20020×2iLH24198205-198507

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69350-90D00×2iLH24198205-198507

69306LOCK SUB-ASSY, BACK DOOR, LOWER

main69380-90A00×2iLH24198205-198403

main69380-90D00×2iLH24198403-198507

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69357-90D00iLH24198205-198507

RH

main69378-90D00iLH24198205-198507

LH

69352ROD, BACK DOOR LOCK CONTROL, LOWER

main69037-90D00iLH24198504-198507

RH

main69038-90D00iLH24198504-198507

LH

main69395-90D00iLH24198205-198504

RH

main69396-90D00iLH24198205-198504

LH

69359CUSHION, BACK DOOR LOCK

main69359-90A00×2iLH24198210-198507

69376ASILENCER, BACK DOOR LOCK LINK

main69759-30021×4iLH24198205-198507

69490STRIKER ASSY, BACK DOOR LOCK

main69430-90B00×2iLH24198205-198403

LWR

main69430-90D00×2iLH24198403-198507

LWR

main69430-95701×2iLH24198205-198507

UPR

69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH

main69690-90D00iLH24198205-198302

main69690-90D01iLH24198302-198409

main69690-90D02iLH24198409-198504

main69690-90D03iLH24198504-198507

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69670-90D00iLH24198205-198302

main69670-90D01iLH24198302-198409

main69670-90D03iLH24198409-198504

main69670-90D05iLH24198504-198504

69722PAD, BACK DOOR LOCK CONTROL

main69722-90A00×4iLH24198205-198507

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020×2iLH24198205-198507

69749ECLAMP, BACK DOOR LOCK LINK

main69749-12010×2iLH24198205-198507

69750AGROMMET(FOR BACK DOOR REMOTE CONTROL)

main90480-10102×2iLH24198205-198507

69790CONTROL ASSY, BACK DOOR LOCK

main69090-90D00iLH24198205-198302

LH

main69790-90D00iLH24198205-198302

RH

main69790-90D01iLH24198302-198507

RH

main69860-90D00iLH24198302-198507

LH

9014960038

main90149-60038

9020207022

main90202-07022

9026903018

main90269-03018

9046107033

main90461-07033

9046712021

main90467-12021

9048015002

main90480-15002

9095901033

main90959-01033

9165140616

main91651-40616

9165160616

main91651-60616

9165160620

main91651-60620

9165160820

main91651-60820

9165160825

main91651-60825

9166160616

main91661-60616

9331515012

main93315-15012

9353054010

main93530-54010

9354016012

main93540-16012

9356014014

main93560-14014

9451100800

main94511-00800

9454300800

main94543-00800

9454301000

main94543-01000

9461210800

main94612-10800

9461410500

main94614-10500

9538103015

main95381-03015

64 parts on this diagram · 1 diagram in section
