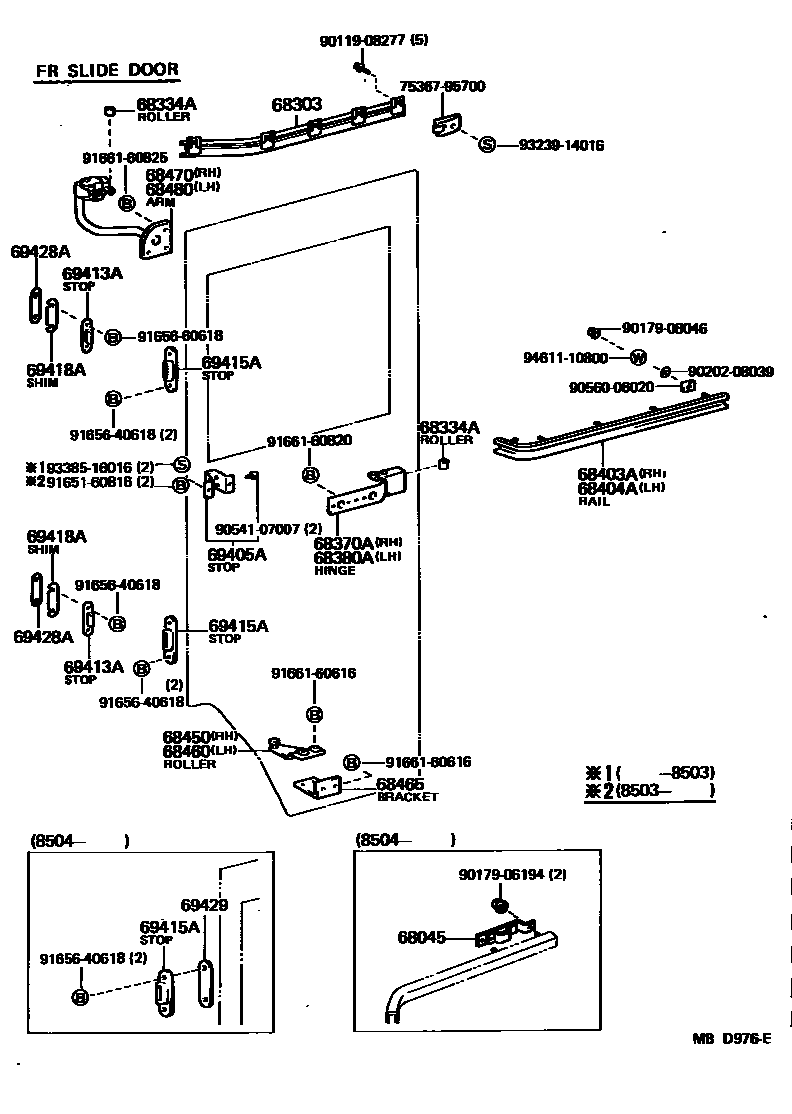

SLIDE ROLLER & RAIL

0001 1 0002 1

68045BRACKET SUB-ASSY, FRONT SLIDE DOOR CATCH

main68045-90D02iLH24198504-198507

68303RAIL SUB-ASSY, SLIDE DOOR, UPPER

main68301-90D00iLH24198310-198507

W/RR DOOR

main68301-90D01iLH24198401-198507

W/RR DOOR,W/O ROOF BOARD

main68405-90D00iLH24198404-198507

RH,W/FR DOOR

main68406-90D00iLH24198404-198507

LH,W/FR DOOR

main68411-90D01iLH24198205-198404

RH,W/FR DOOR

main68412-90D01iLH24198205-198404

LH,W/FR DOOR

68334ROLLER, SLIDE DOOR CENTER, NO.2

main68334-95700iLH24198310-198507

W/RR DOOR

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700iLH24198205-198507

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-87001iLH24198310-198507

W/RR DOOR

68370AHINGE ASSY, FRONT SLIDE DOOR, CENTER RH

main68370-95702iLH24198205-198312

main68710-90D00iLH24198312-198507

68380AHINGE ASSY, FRONT SLIDE DOOR, CENTER LH

main68380-95702iLH24198205-198312

main68720-90D00iLH24198312-198507

68403ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER RH

main68403-90D00iLH24198205-198404

main68403-90D01iLH24198310-198404

W/RR SIDE DOOR

main68403-90D01iLH24198404-198507

68404ARAIL SUB-ASSY, FRONT SLIDE DOOR, CENTER LH

main68404-90D00iLH24198205-198507

68450ROLLER ASSY, FRONT SLIDE DOOR, LOWER RH

main68450-90D00iLH24198205-198507

68460ROLLER ASSY, FRONT SLIDE DOOR, LOWER LH

main68460-90D00iLH24198205-198507

68465BRACKET, FRONT SLIDE DOOR LOWER ROLLER

main68465-90D00iLH24198205-198507

68470ARM ASSY, FRONT SLIDE DOOR UPPER ROLLER, RH

main68470-90D00iLH24198205-198312

main68470-90D01iLH24198312-198404

main68470-90D02iLH24198404-198507

68480ARM ASSY, FRONT SLIDE DOOR UPPER ROLLER, LH

main68480-90D00iLH24198205-198312

main68480-90D01iLH24198312-198404

main68480-90D02iLH24198404-198507

69405ASTOP, FRONT SLIDE DOOR

main69405-90D00iLH24198205-198503

main69405-90D02iLH24198503-198507

69413STOP, SLIDE DOOR DOWN MALE

main69406-95J00iLH24198310-198507

W/RR DOOR

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

main69406-95J00iLH24198401-198507

main69413-95700iLH24198205-198401

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95J00iLH24198310-198507

W/RR DOOR

69415ASTOP, FRONT SLIDE DOOR DOWN FEMALE

main69415-95A00iLH24198205-198401

main69415-95J00iLH24198401-198507

69418ASHIM, FRONT SLIDE DOOR DOWN STOP MALE

main69418-95700iLH24198205-198507

T=1.0

69428APAD, FRONT SLIDE DOOR DOWN STOP, MALE

main69428-90D00iLH24198412-198507

69429PAD, FRONT SLIDE DOOR DOWN STOP, FEMAIL

main69429-90D00iLH24198504-198507

7536795700PLATE, FRONT FENDER NAME, NO.3 (DISPLACEMENT)

main75367-95700

9011908277

main90119-08277

9017906194

main90179-06194

9017908046

main90179-08046

9020208039

main90202-08039

9054107007

main90541-07007

9056006020

main90560-06020

9165160816

main91651-60816

9165640618

main91656-40618

9165660618

main91656-60618

9166160616

main91661-60616

9166160820

main91661-60820

9166160825

main91661-60825

9323914016

main93239-14016

9338516016

main93385-16016

9461110800

main94611-10800

38 parts on this diagram · 2 diagrams in section
