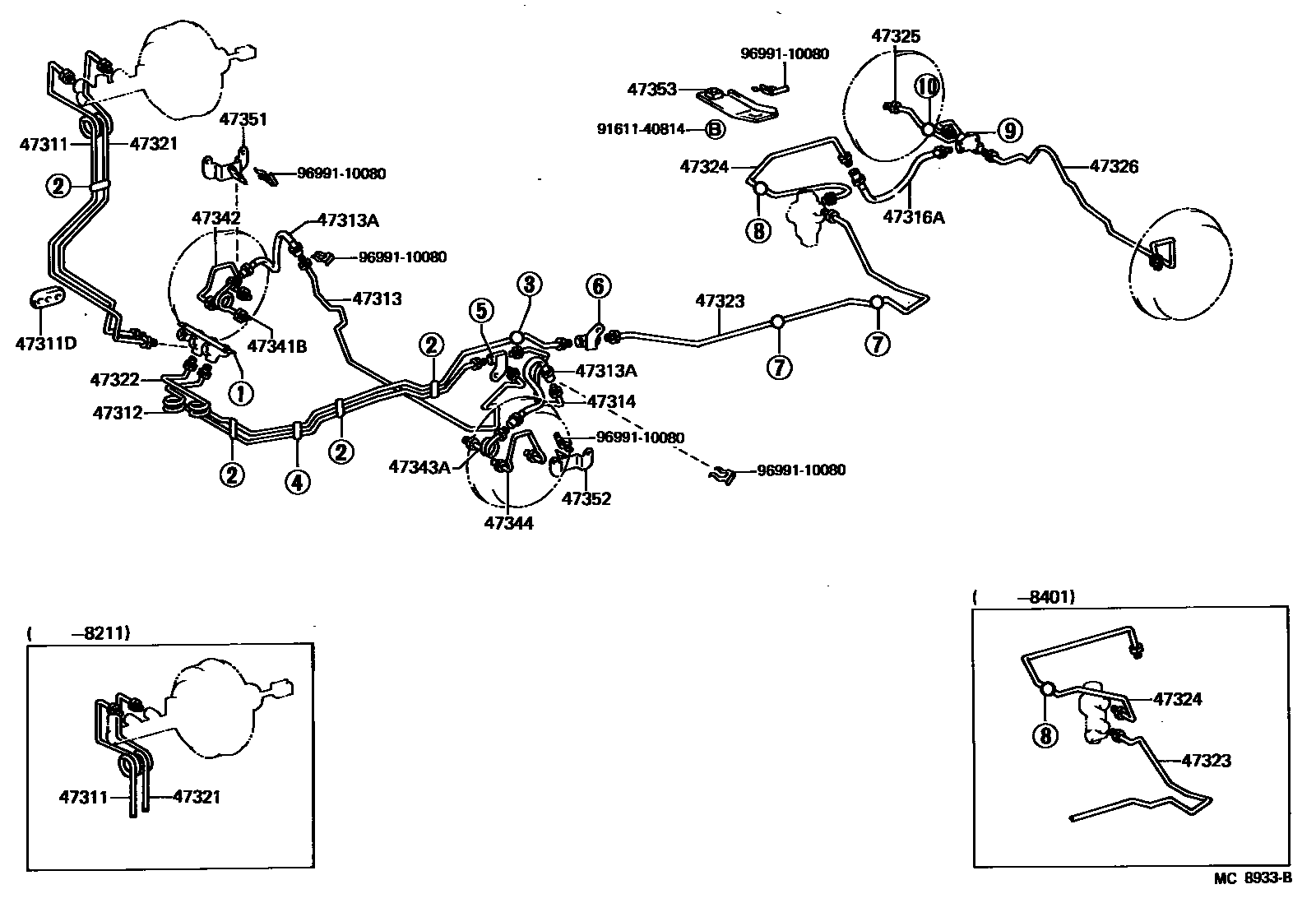

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1

47311TUBE, FRONT BRAKE, NO.1

main47311-26180iLH24198205-198211

main47311-26181iLH24198211-198507

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-01030iLH24198205-198507

47312TUBE, FRONT BRAKE, NO.2

main47312-26090iLH24198205-198211

main47312-26160iLH24198211-198507

47313TUBE, FRONT BRAKE, NO.3

main47313-26030iLH24198205-198211

main47313-26080iLH24198211-198507

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02350×2iLH24198205-198507

47314TUBE, FRONT BRAKE, NO.4

main47314-26030iLH24198205-198211

main47314-26070iLH24198211-198507

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96910-34205iLH24198205-198507

47321TUBE, REAR BRAKE, NO.1

main47321-26090iLH24198205-198211

main47321-26091iLH24198211-198507

47322TUBE, REAR BRAKE, NO.2

main47322-26011iLH24198205-198211

main47322-26080iLH24198211-198507

47323TUBE, REAR BRAKE, NO.3

main47323-26010iLH24198205-198211

main47323-26120iLH24198401-198507

main47323-26270iLH24198211-198401

47324TUBE, REAR BRAKE, NO.4

main47324-26040iLH24198205-198401

main47324-26060iLH24198401-198507

47325TUBE, REAR BRAKE, NO.5

main47325-26060iLH24198205-198507

47326TUBE, REAR BRAKE, NO.6

main47326-26040iLH24198205-198507

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26020iLH24198205-198507

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26010iLH24198205-198507

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26010iLH24198205-198507

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-26010iLH24198205-198507

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26030iLH24198205-198507

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26030iLH24198205-198507

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47355-26030iLH24198205-198507

9161140814

main91611-40814

9699110080

main96991-10080

22 parts on this diagram · 3 diagrams in section
