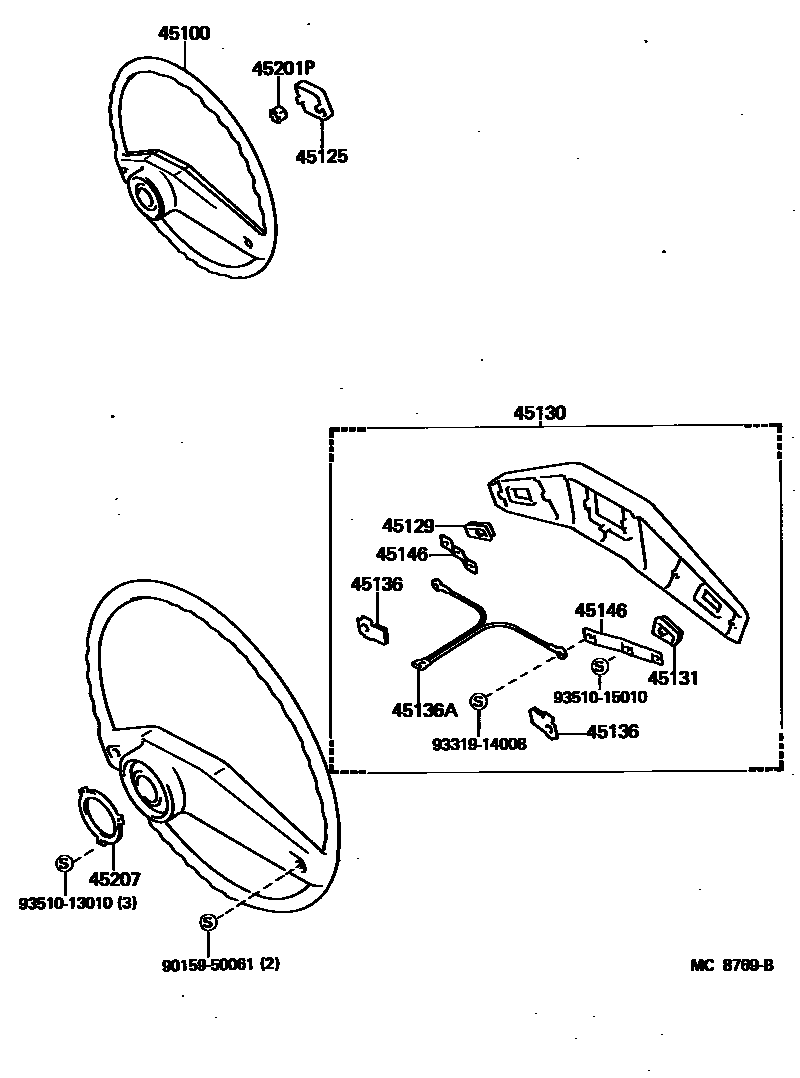

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-25060iLH24198205-198507

45125MARK, STEERING WHEEL PAD

main45125-25020iLH24198205-198507

45129BUTTON, HORN, NO.2

main45131-36050iLH24198205-198507

45130BUTTON ASSY, HORN

main45130-25040iLH24198205-198507

45131BUTTON, HORN, NO.1

main45131-36050iLH24198205-198507

45136PLATE, HORN BUTTON CONTACT

main45136-26020×2iLH24198205-198507

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iLH24198205-198507

45146SPRING, HORN BUTTON CONTACT

main45146-36010×2iLH24198205-198507

45201PNUT, STEERING WHEEL SET

main90179-12086iLH24198205-198507

45207RING, HORN CONTACT

main45176-20030iLH24198205-198507

9015950061

main90159-50061

9331914008

main93319-14008

9351013010

main93510-13010

9351015010

main93510-15010

14 parts on this diagram · 1 diagram in section
