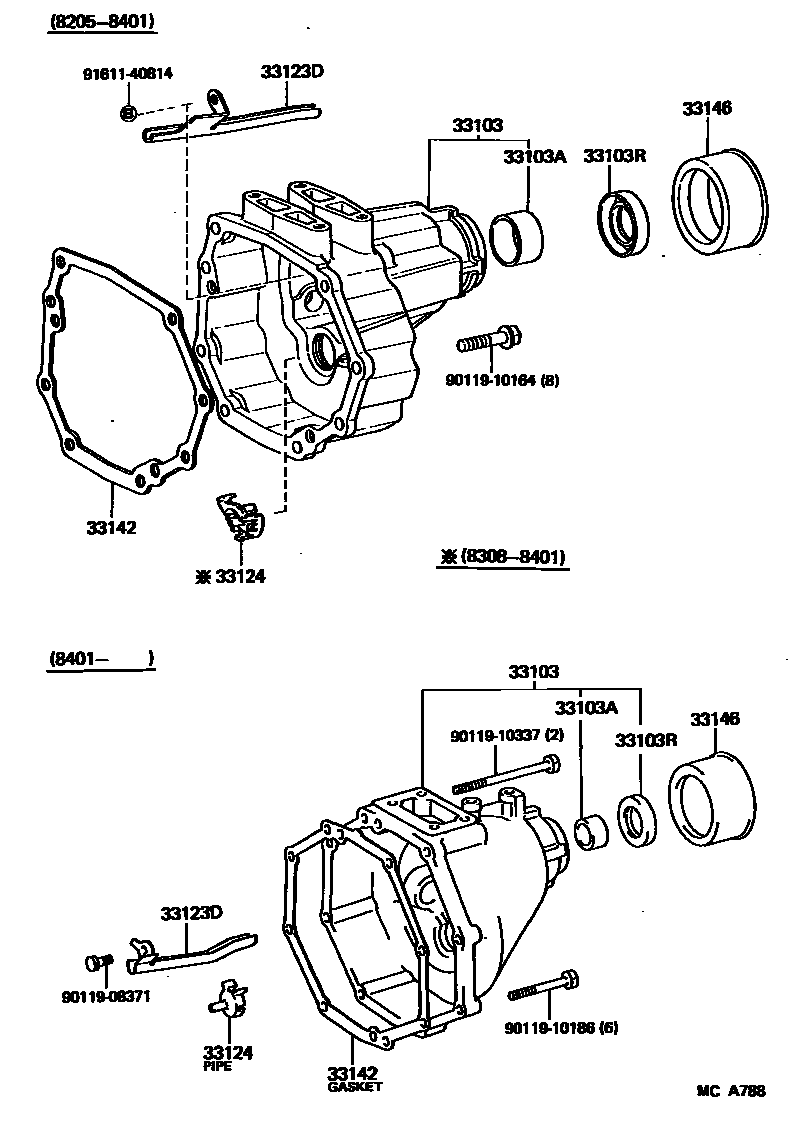

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-26030iLH24198205-198401

main33103-26040iLH24198401-198507

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLH24198205-198507

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38043iLH24198205-198507

33123DRECEIVER, CASE COVER OIL(MTM)

main33123-26011iLH24198205-198401

main33124-28010iLH24198401-198507

33124PIPE, OIL RECEIVER(MTM)

main33124-26010iLH24198308-198401

main33124-36010iLH24198401-198507

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLH24198401-198507

main33142-35030iLH24198205-198401

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iLH24198205-198507

9011908371

main90119-08371

9011910164

main90119-10164

9011910186

main90119-10186

9011910337

main90119-10337

9161140814

main91611-40814

12 parts on this diagram · 1 diagram in section
