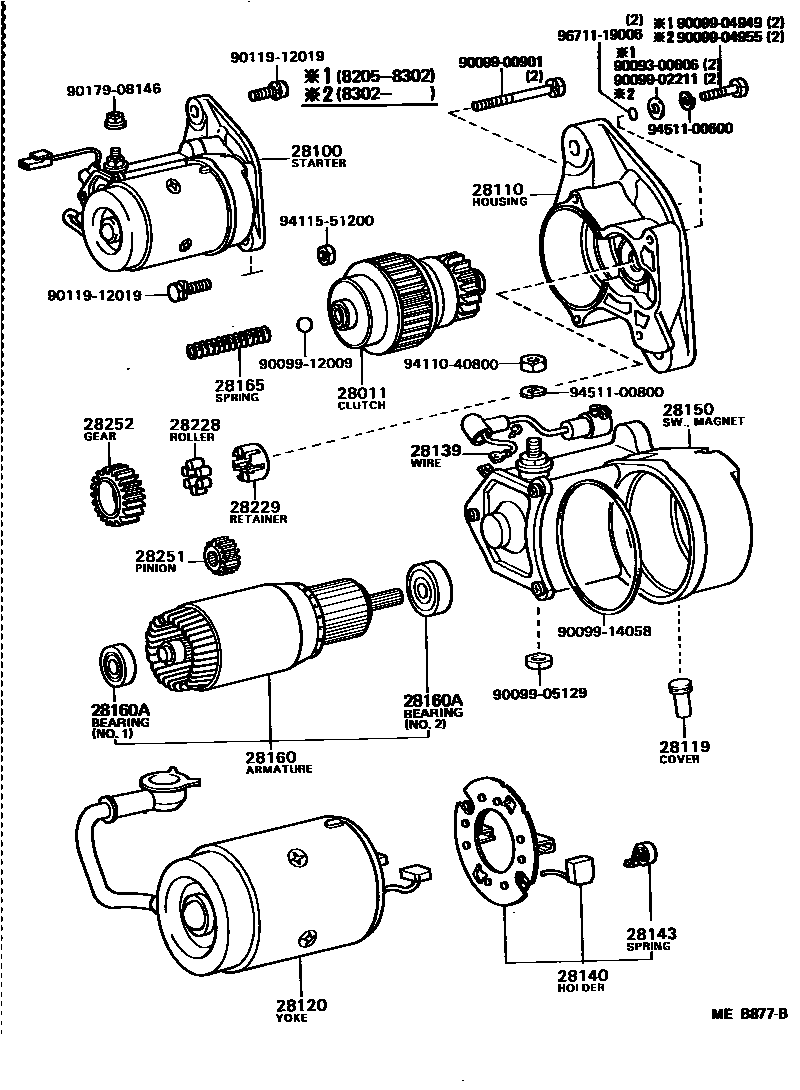

STARTER
28011CLUTCH SUB-ASSY, STARTER
12V 2.5KW
12V 2.0KW
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
12V 2.5KW
12V 2.0KW
28119COVER, STARTER END FRAME
12V 2.0KW
12V 2.5KW
28120YOKE ASSY, STARTER
12V 2.5KW
12V 2.0KW
28139WIRE, LEAD, NO.1(FOR STARTER)
12V 2.0KW
12V 2.5KW
28140HOLDER ASSY, STARTER BRUSH
12V 2.0KW
12V 2.5KW
28143SPRING, STARTER BRUSH
12V 2.0KW
28150SWITCH ASSY, MAGNET STARTER
12V 2.5KW
12V 2.0KW
12V 2.0KW
12V 2.5KW
28160ARMATURE ASSY, STARTER
12V 2.5KW
12V 2.0KW
12V 2.5KW
28160ABEARING, STARTER ARMATURE
12V 2.0KW,NO.1
12V 2.5KW,NO.2
12V 2.5KW,NO.1
12V 2.0KW,NO.2
12V 2.5KW,NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
12V 2.0KW
12V 2.5KW
28228ROLLER, STARTER IDLE GEAR CLUTCH
12V 2.0KW
12V 2.5KW
28229RETAINER, STARTER IDLE GEAR
12V 2.0KW
12V 2.5KW
28251PINION, STARTER DRIVE
12V 2.0KW
28252GEAR, STARTER IDLE
12V 2.0KW
12V 2.5KW
9009300606
main90093-00606
9009900901
main90099-00901
9009902211
main90099-02211
9009904949
main90099-04949
9009904955
main90099-04955
9009905129
main90099-05129
9009912009
main90099-12009
9009914058
main90099-14058
9011912019
main90119-12019
9017908146
main90179-08146
9411040800
main94110-40800
9411551200
main94115-51200
9451100600
main94511-00600
9451100800
main94511-00800
9671119006
main96711-19006
31 parts on this diagram · 2 diagrams in section
