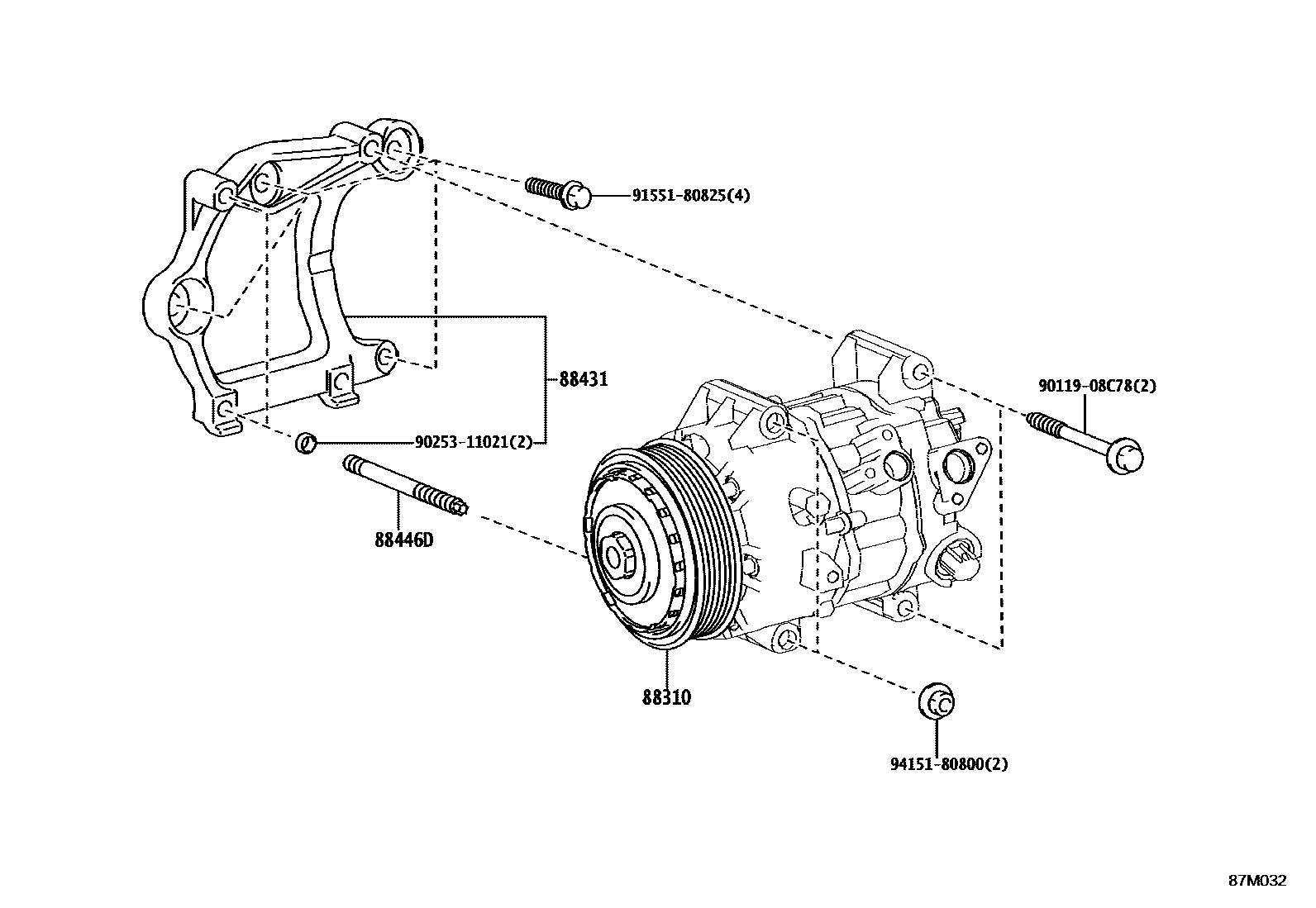

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-58050iAGH4#,TAHA4#202306

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iAGH4#202306

88446DBOLT, COOLER

main88446-42030×2iAGH4#,TAHA4#202306

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

9415180800

main94151-80800

7 parts on this diagram · 3 diagrams in section
