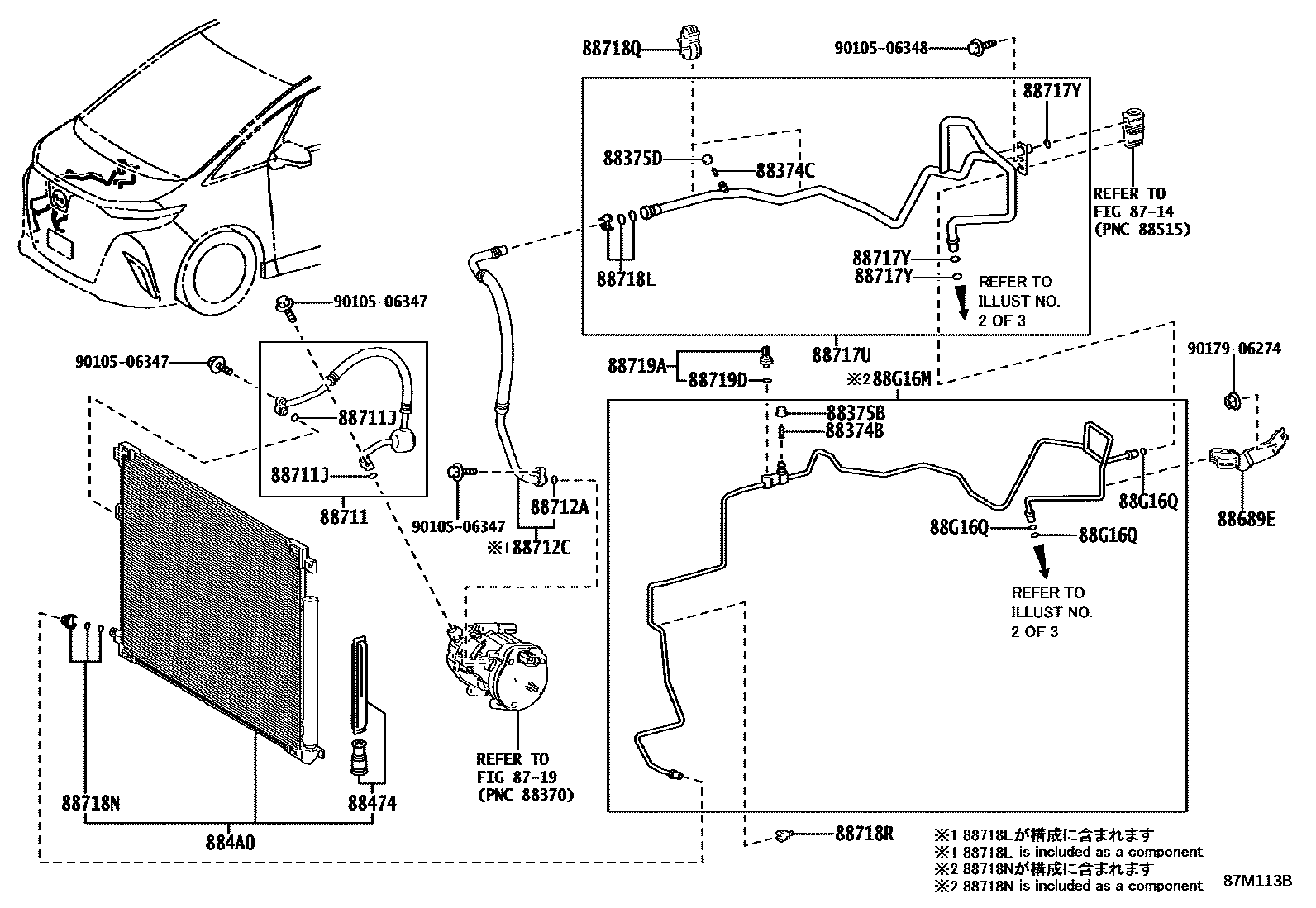

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 1/2 0005 1���� 2/2 0006 1�� 1/2 0007 1�� 1/2 0008 1�� 2/2 0009 1�� 1/2 0010 1�� 2/2

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88374CVALVE, SERVICE, NO.2

main88374-30010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iAAHP45202501

main88375-30320iAAHH4#,AGH4#,TAHA4#202306

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAAHH4#,AGH4#,TAHA4#202306

main88375-30320iAAHP45202501

88474DRYER, COOLER

main88474-12010iAAHH4#,AGH4#,TAHA4#202306

884A0CONDENSER ASSY, COOLER

main884A0-V2040iAGH4#202306

main884A0-V2060iAAHH4#202306

main884A0-V2070iTAHA4#202306

main884A0-V2110iAAHP45202501

88689EBRACKET, COOLER, NO.1

main88688-V2020iAAHH4#,AGH4#202306

main88688-V2080iTAHA4#202306

main88688-V2120iAAHP45202501

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-V2010iAGH4#202306

main88711-V2020iTAHA4#202306

main88711-V2030iAAHH4#202306

main88711-V2050iAAHP45202501

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90099-14120×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)

main90099-14121iAAHH4#,AGH4#,TAHA4#202306

main90099-14169iAAHP45202501

88712CHOSE, SUCTION

main88712-V2010iAGH4#202306

main88712-V2020iTAHA4#202306

main88712-V2030iAAHH4#202306

main88712-V2050iAAHP45202501

88717UTUBE, SUCTION, NO.1

main88717-V2060iAAHH4#,AGH4#202306

main88717-V2070iTAHA4#202306

88717YRING, O, NO.1(FOR SUCTION TUBE)

main90099-14121iAAHH4#,AGH4#; TAHA4#202306

88718LCLAMP, PIPING

main88718-52280iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88718NCLAMP, PIPING

main88718-1E150iAAHH4#,AGH4#,TAHA4#202306

88718QCLAMP, PIPING

main88718-42120×2iAAHH4#,AGH4#,TAHA4#202306

88718RCLAMP, PIPING

main88718-47110iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAAHH4#,AAHP45,AGH4#,TAHA4#202306

88G16MTUBE, LIQUID, NO.1

main88716-V2030iTAHA4#202306

main88716-V2100iAAHH4#,AGH4#202306

main88716-V2200iAAHP45202501

88G16QRING, O, NO.1(FOR LIQUID TUBE)

main90099-14119×2iAAHH4#,AAHP45,AGH4#; TAHA4#202306

9010506347

main90105-06347

9010506348

main90105-06348

9017906274

main90179-06274

26 parts on this diagram · 10 diagrams in section
