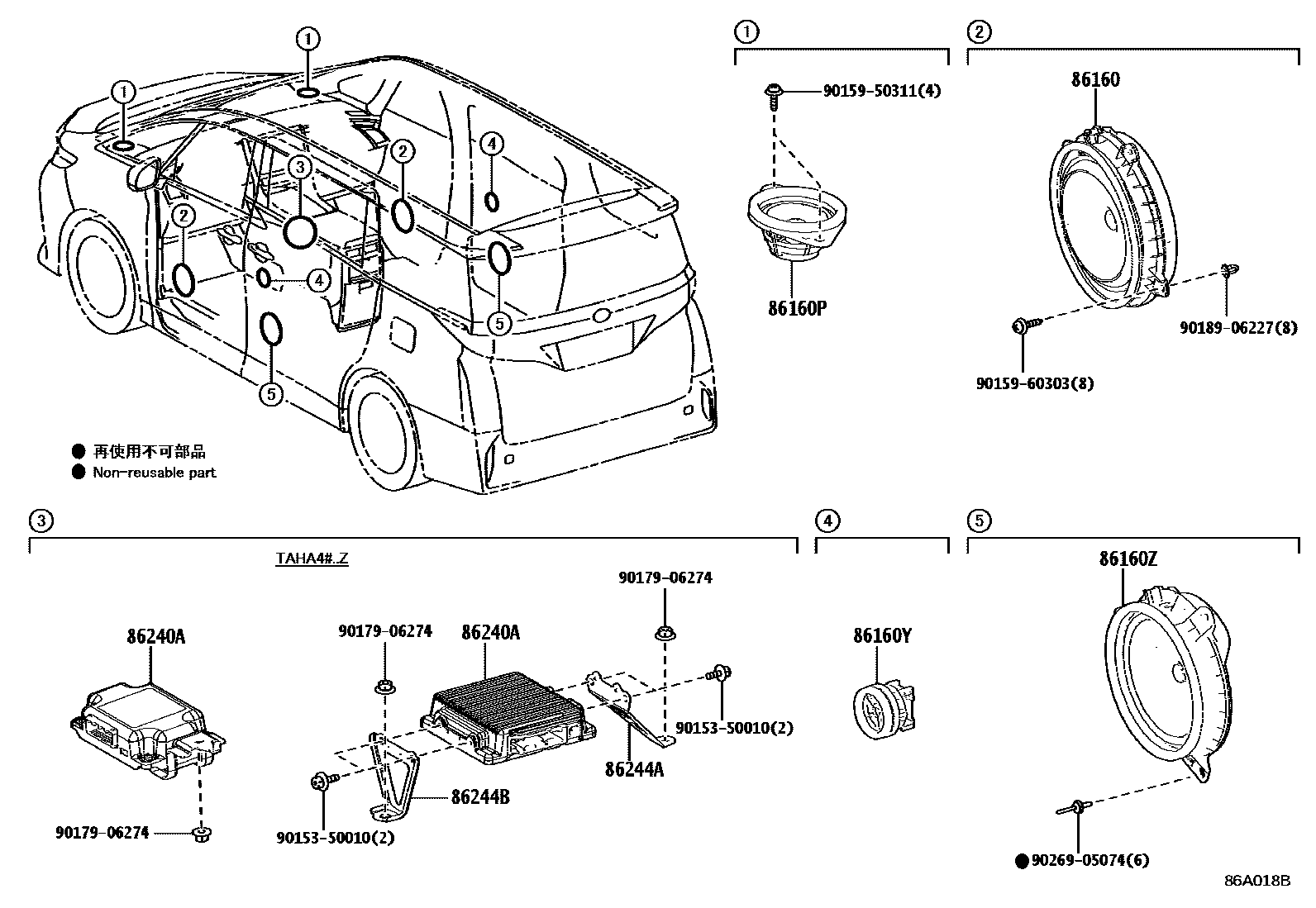

SPEAKER

0001 18����� & 10����� 0002 115�����

86160SPEAKER ASSY, FRONT NO.1

main86160-30F70×2iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z202306

main86160-33A10×2iAAHH4#,AAHP45,AGH4#,TAHA4#..PREM,Z; AAHH4#,AAHP45,TAHA4#..EL,SL,SLS202306

86160PSPEAKER ASSY, FRONT NO.2

main86160-28830×2iAAHH4#,AGH4#..G,X202306

main86160-42200supersedes 86150-V2030iAAHH4#,AAHP45..04S202501

main86150-V2030×2iAAHH4#,AAHP45,AGH4#,TAHA4#..PREM,Z; AAHH4#,AGH4#..G202306

86160YSPEAKER ASSY, REAR NO.2

main86150-V2020×2iAAHH4#,AAHP45,AGH4#,TAHA4#..PREM,Z; AAHH4#,AAHP45,TAHA4#..EL,SL,SLS202306

main86160-52340×2iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z202306

86160ZSPEAKER ASSY, REAR NO.3

main86160-1A210×2iAAHH4#,AAHP45,AGH4#,TAHA4#..G,PREM,X,Z202306

main86160-42160×2iAAHH4#,AAHP45,AGH4#,TAHA4#..PREM,Z; AAHH4#,AAHP45,TAHA4#..EL,SL,SLS202306

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-V2010supersedes 86240-30140iAAHH4#,AAHP45,TAHA4#..EL,SL,SLS; TAHA4#..Z202306

86244ABRACKET, EQUALIZER STEREO COMPONENT, NO.1

main86244-V2010iTAHA4#..Z202306

86244BBRACKET, EQUALIZER STEREO COMPONENT, NO.2

main86286-V2010iTAHA4#..Z202306

9015350010

main90153-50010

9015950311

main90159-50311

9015960303

main90159-60303

9017906274

main90179-06274

9018906227

main90189-06227

9026905074

main90269-05074

13 parts on this diagram · 2 diagrams in section
