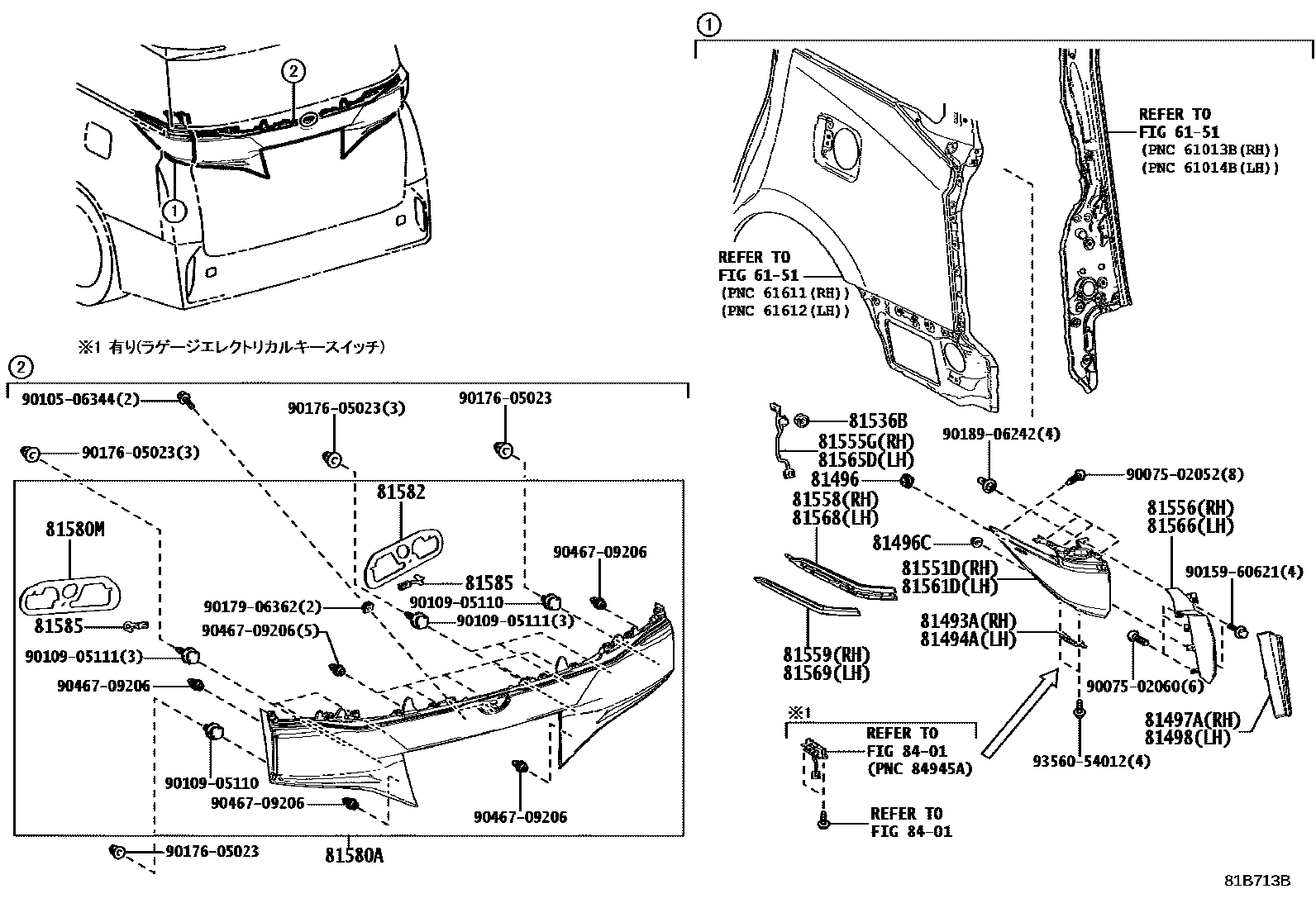

REAR COMBINATION LAMP

0001 1 0002 1

6151SIDE MEMBER

→ Go to FIG 61-51

81493APAD, RR COMBINATION LAMP, RH

main81493-V2010iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81493-V2020iAAHH4#,AGH4#..VFIRE..G202306

81494APAD, REAR CONBINATION LAMP, LH

main81494-V2010iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81494-V2020iAAHH4#,AGH4#..VFIRE..G202306

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×2iAAHH4#,AGH4#,TAHA4#..07S,08S202306

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iAAHH4#,AAHP45..04S,06S202501

81497ACOVER, REAR COMBINATION LAMP, UPPER RH

main81497-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

81498COVER, REAR COMBINATION LAMP, LH

main81498-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

81536BLED, REAR TURN SIGNAL LAMP

main81965-48030×2iAAHH4#,AGH4#..ALPHD..(G,X)202306

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81551-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81551-V2040iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,G,PREM)202306

main81551-V2110iAAHH4#..PREM; TAHA4#..Z202306

81555GCORD, REAR COMBINATION LAMP, RH

main81555-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81555-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81555-V2040iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

81556RIM, REAR COMBINATION LAMP, RH

main81556-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81556-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81556-V2040iAAHH4#,AGH4#,TAHA4#..VFIRE..07S202306

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-V2020iAAHH4#,AAHP45..ALPHD..(04S,06S)202501

main81558-V2040iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

81559MOULDING, REAR COMBINATION LAMP, RH

main81951-V2010iAAHH4#,AGH4#..ALPHD..(07S,08S)202306

main81951-V2020iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

main81951-V2040iAAHH4#..PREM; TAHA4#..Z202306

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81561-V2030iAAHH4#,AAHP45..ALPHD..(04S,06S)202501

main81561-V2040iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

main81561-V2110iAAHH4#..PREM; TAHA4#..Z202306

81565DCORD, REAR COMBINATION LAMP, LH

main81555-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81555-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81555-V2040iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

81566RIM, REAR COMBINATION LAMP, LH

main81566-V2020iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81566-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81566-V2040iAAHH4#,AAHP45..VFIRE..(04S,06S)202501

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81568-V2020iAAHH4#,AAHP45..ALPHD..(04S,06S)202501

main81568-V2040iAAHH4#,AGH4#,TAHA4#..VFIRE..07S202306

81569MOULDING, REAR COMBINATION LAMP, LH

main81961-V2010iAAHH4#,AAHP45..ALPHD..(04S,06S)202501

main81961-V2020iAAHH4#,AGH4#,TAHA4#..VFIRE..(EL,G,PREM)202306

main81961-V2040iAAHH4#..PREM; TAHA4#..Z202306

81580ALAMP ASSY, REAR

main81580-V2020supersedes 81580-V2010iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81580-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81580-V2040supersedes 81580-V2030iAAHH4#,AGH4#..ALPHD..(EL,Z); AAHH4#,AGH4#..ALPHD..G202306

main81580-V2080supersedes 81580-V2070iAAHH4#,AGH4#,TAHA4#..VFIRE..07S202306

81580MGASKET, RR LAMP

main81582-V2020iAAHH4#,AAHP45..04S,06S202501

81582GASKET, REAR LAMP

main81582-V2010iAAHH4#,AGH4#,TAHA4#..07S,08S202306

81585SOCKET & WIRE, REAR LAMP

main81585-V2020×2supersedes 81585-V2010iAAHH4#,AGH4#..ALPHD..(G,X)202306

main81585-V2030×2iAAHH4#,AGH4#..ALPHD..G; AGH4#..Z;AGH4#..VFIRE;AAHH4#..VFIRE..G;AAHH4#,TAHA4#..EL,PREM,Z202306

main81585-V2040×2supersedes 81585-V2030iAAHH4#,AGH4#..ALPHD..G; AGH4#..Z;AGH4#..VFIRE;AAHH4#..VFIRE..G;AAHH4#,TAHA4#..EL,PREM,Z202306

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9007502052

main90075-02052

9007502060

main90075-02060

9010506344

main90105-06344

9010905110

main90109-05110

9010905111

main90109-05111

9015960621

main90159-60621

9017605023

main90176-05023

9017906362

main90179-06362

9018906242

main90189-06242

9046709206

main90467-09206

9356054012

main93560-54012

34 parts on this diagram · 2 diagrams in section
