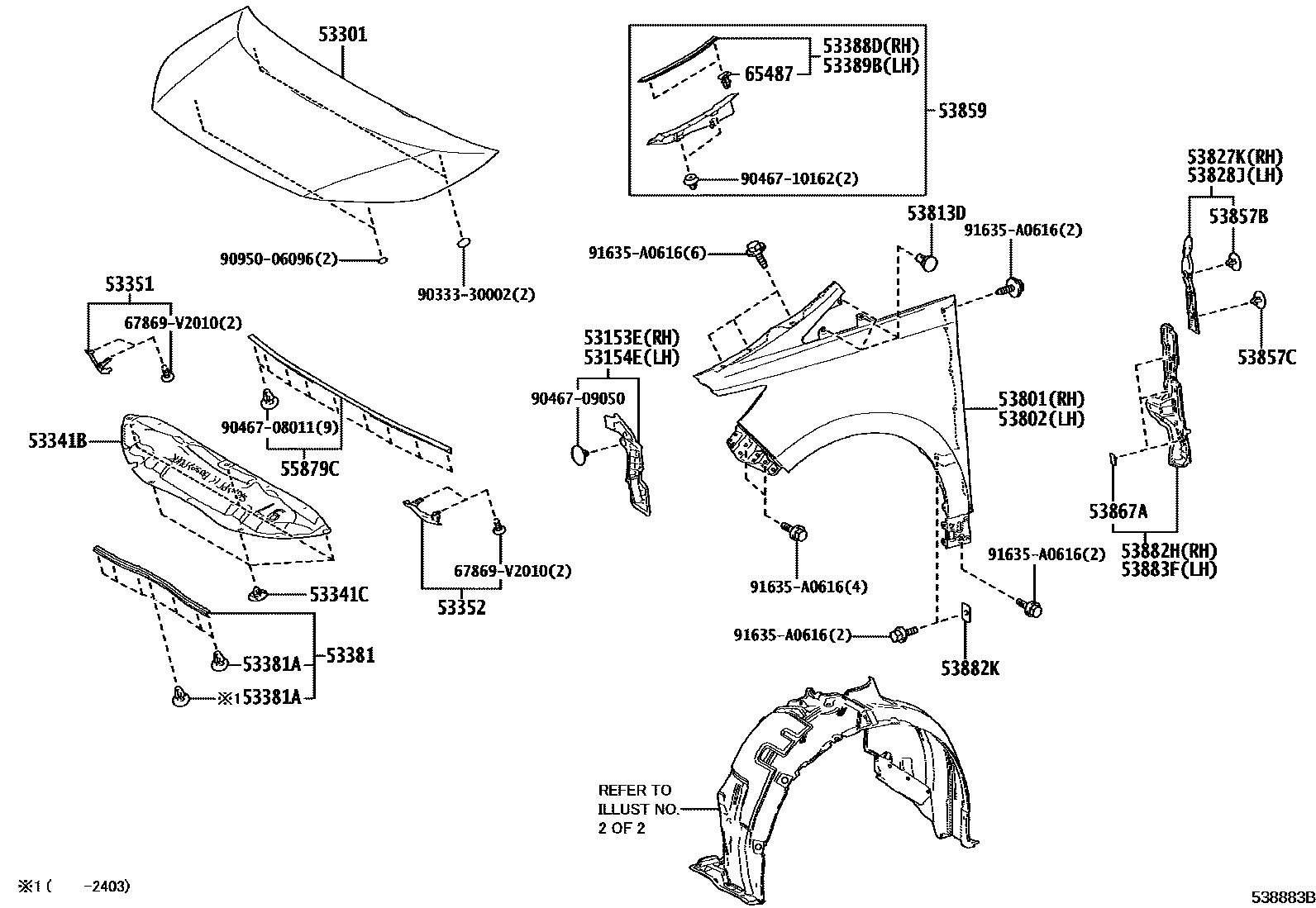

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53351PANEL, HOOD SIDE, RH
53352PANEL, HOOD SIDE, LH
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813DEXTENSION, FRONT FENDER
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53859PROTECTOR, FRONT FENDER
53867ARETAINER, FRONT FENDER
53882HSEAL, FRONT FENDER MAIN, RH
53882KSEAL, FRONT FENDER
53883FSEAL, FRONT FENDER MAIN, LH
55879CSEAL, COWL VENT
65487CLIP, CORNER PROTECTOR
67869V2010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-V2010
9033330002
main90333-30002
9046708011
main90467-08011
9046709050
main90467-09050
9046710162
main90467-10162
9095006096
main90950-06096
91635A0616
main91635-A0616
32 parts on this diagram · 2 diagrams in section
