Toyota 652150 — FRONT BUMPER & BUMPER STAY

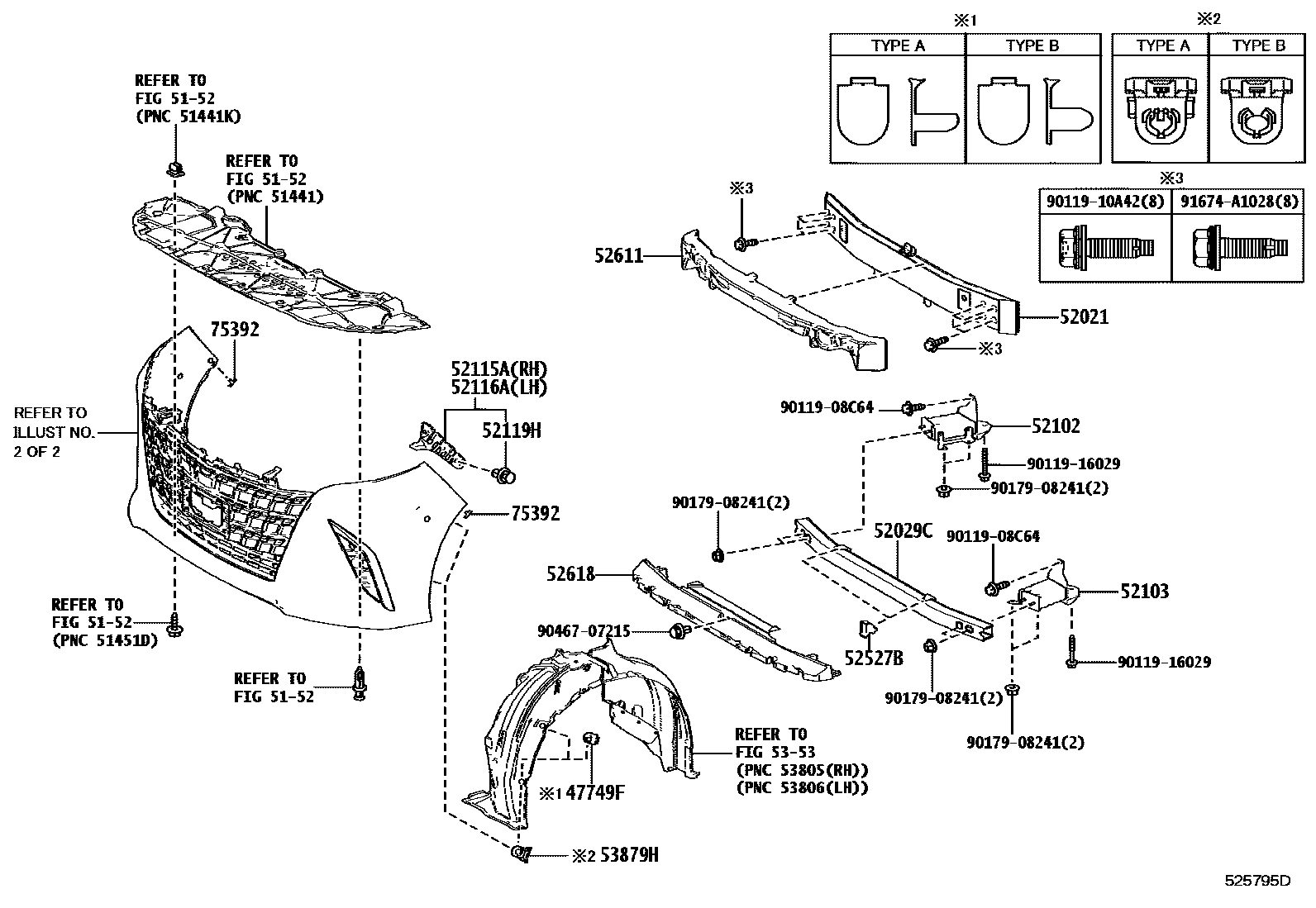

Parts diagram

47749FCLIP, PIN HOLD

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

52102BRACKET SUB-ASSY, FRONT BUMPER, RH

52103BRACKET SUB-ASSY, FRONT BUMPER, LH

52115ASUPPORT, FRONT BUMPER SIDE, RH

52116ASUPPORT, FRONT BUMPER SIDE, LH

52119HCLIP, NO.2

52527BRETAINER, FRONT BUMPER, LOWER NO.2

52611ABSORBER, FRONT BUMPER ENERGY

52618ABSORBER, FRONT BUMPER, LOWER

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

75392RETAINER, OUTSIDE MOULDING

9011908C64

9011910A42

9011916029

9017908241

9046707215

91674A1028

21 parts on this diagram · 4 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota 652150

This section contains 59 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota 652150. Key components include: CLIP, PIN HOLD, SUSPENSION CROSSMEMBER & UNDER COVER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2, COVER ASSY, FRONT BUMPER HOLE, RH.
