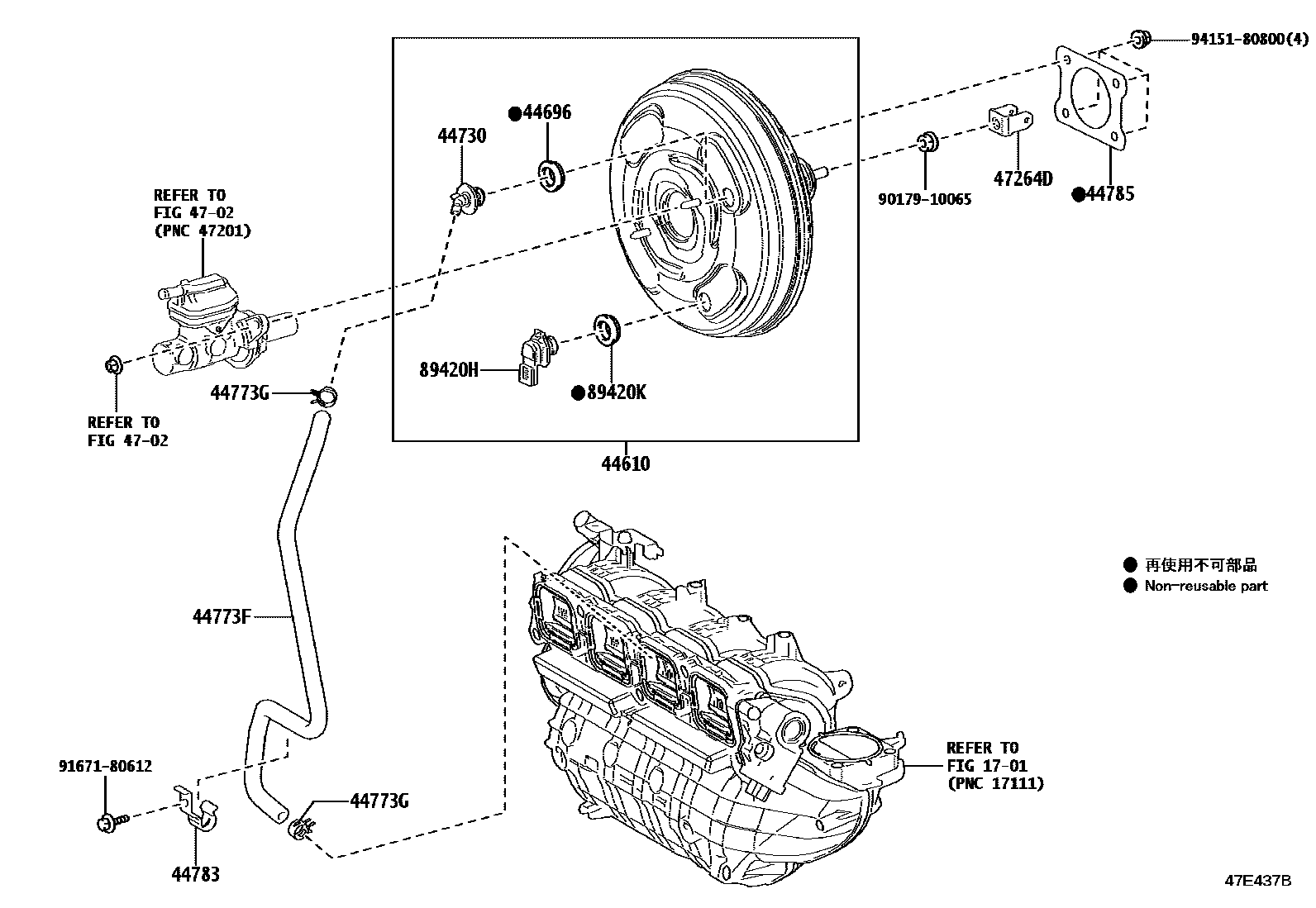

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-V2010iAGH4#202306

main44610-V2020iTAHA4#202306

44696GROMMET, CHECK VALVE

main90480-24439iAGH4#,TAHA4#202306

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iAGH4#202306

main44730-52010iTAHA4#202306

44773FHOSE, UNION TO CHECK VALVE

main44773-V2010iAGH4#202306

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iAGH4#202306

44783CLAMP, VACUUM HOSE

main44783-42030iAGH4#202306

44785GASKET, BRAKE BOOSTER

main44785-12040iAGH4#,TAHA4#202306

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-16030iAGH4#,TAHA4#202306

89420HSENSOR ASSY, VACUUM

main89421-71040iAGH4#,TAHA4#202306

89420KGROMMET, VACUUM SENSOR

main90480-24439iAGH4#,TAHA4#202306

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
