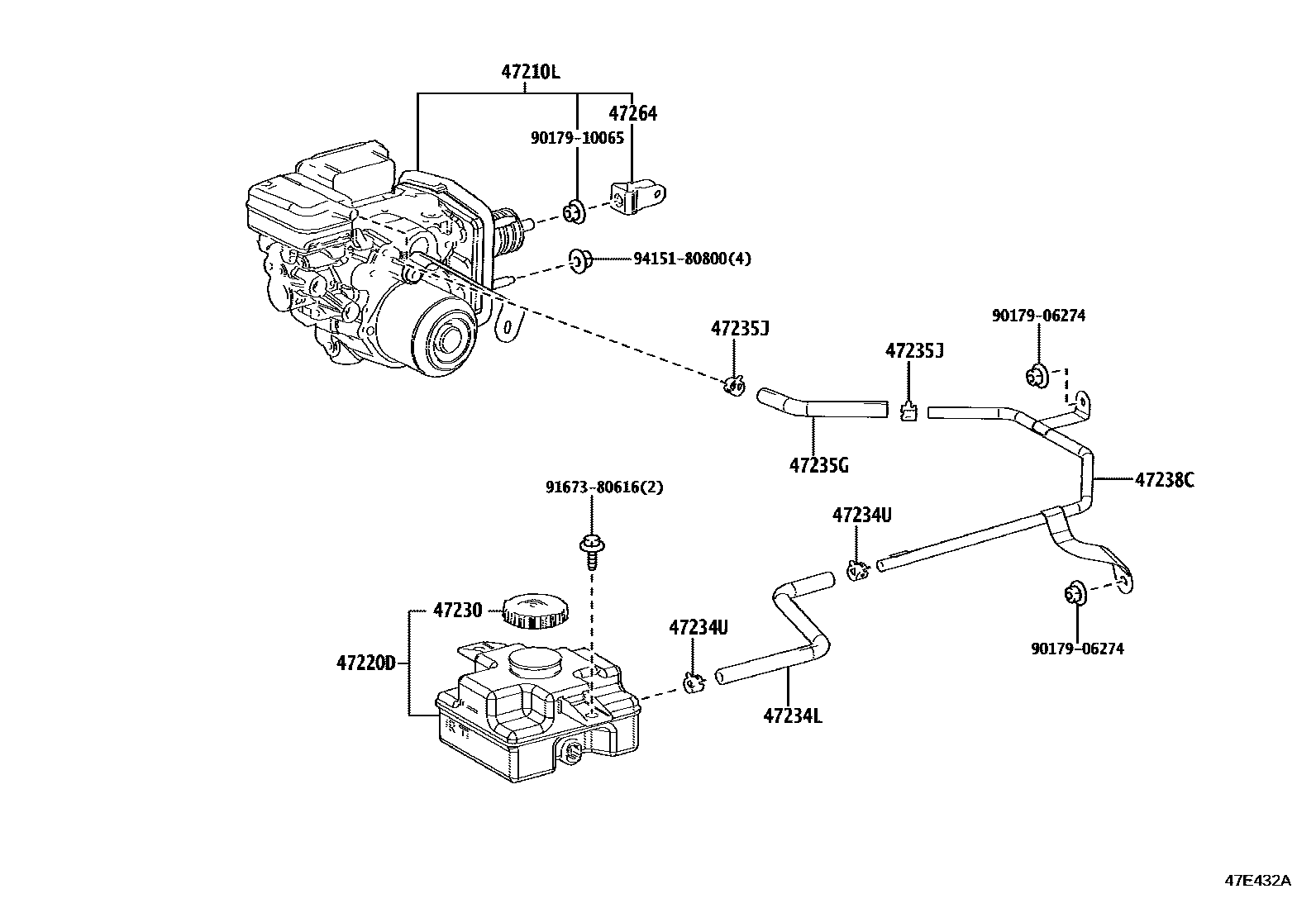

BRAKE MASTER CYLINDER

0001 1 0002 1

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-V2070iAAHH4#..G,PREM,X,Z202306

main47050-V2080iAAHH4#..EL,SL,SLS; AAHH4#..PREM,Z202306

main47050-V2110iAAHP45202501

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-V2010iAGH4#,TAHA4#202306

main47220-V2020iAAHH4#,AAHP45202306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAAHH4#,AAHP45202306

main47230-V2010iAGH4#,TAHA4#202306

47234LHOSE, RESERVOIR, NO.1

main47234-V2010iAGH4#,TAHA4#202306

main47234-V2030iAAHH4#,AAHP45202306

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

47235GHOSE, RESERVOIR, NO.2

main47235-V2010iAGH4#,TAHA4#202306

main47235-V2030iAAHH4#,AAHP45202306

47235JCLIP(FOR RESERVOIR HOSE NO.2)

main96137-41501×2iAAHH4#,AAHP45,AGH4#,TAHA4#202306

47238CTUBE, RESERVOIR

main47238-V2010iAAHH4#,AAHP45,AGH4#202306

main47238-V2030iTAHA4#202306

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42030iAAHH4#202306

9017906274

main90179-06274

9017910065

main90179-10065

9167380616

main91673-80616

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
