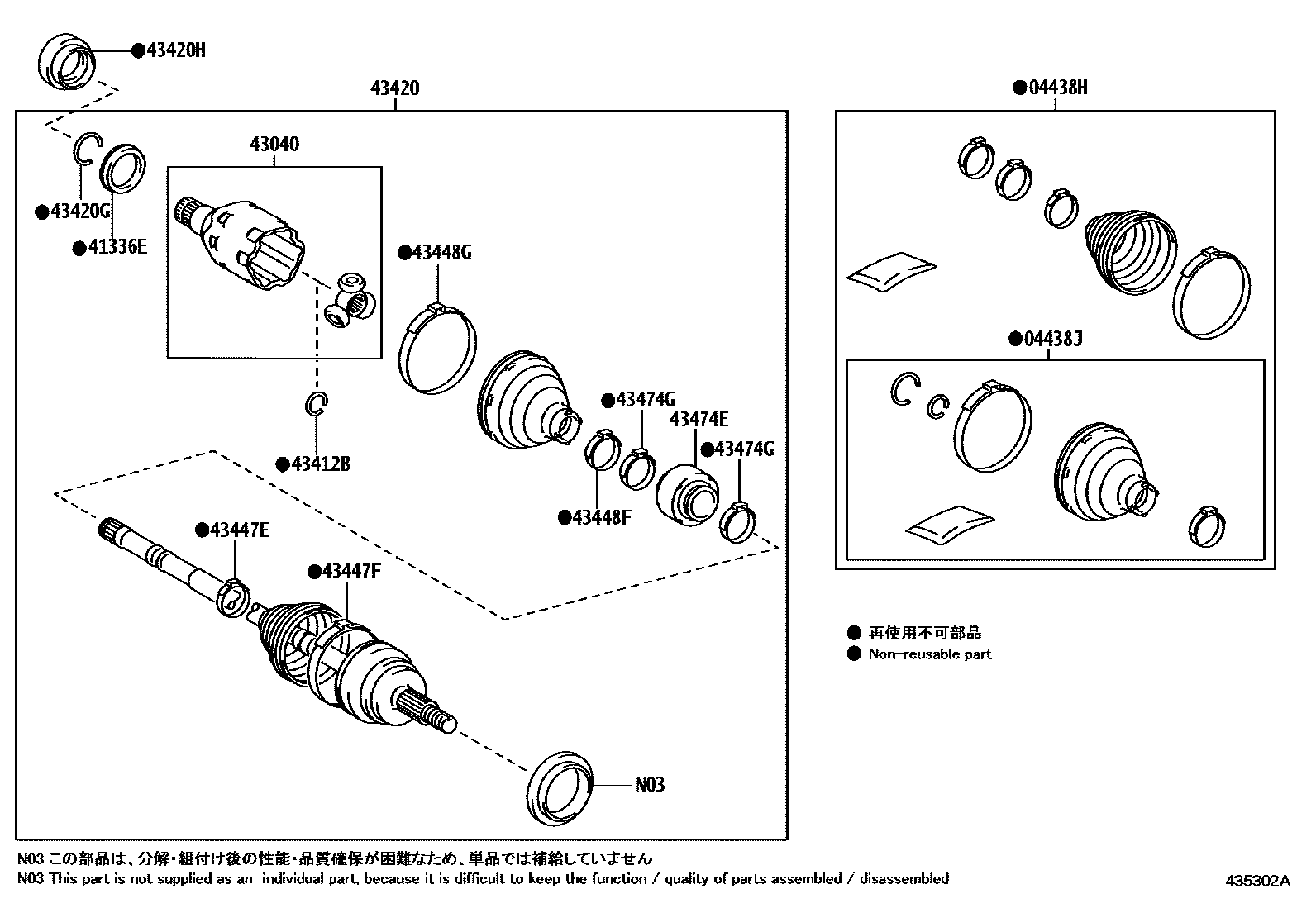

FRONT DRIVE SHAFT

0001 1������� 0002 1������� 0003 1������ 0004 1������ 0005 1������ 0006 1������

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-58120iAGH4#202306

main04428-58130iTAHA4#202306

main04428-58140iAAHH4#,AAHP45202306

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-52521iAGH4#202306

main04438-58080iAAHH4#,AAHP45,TAHA4#202306

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-78030iAGH4#202306

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-58010iAGH4#202306

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-58030iAAHH4#,AAHP45,TAHA4#202306

main43425-78020iAGH4#202306

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-V2010iAGH4#202306

main43420-V2020iTAHA4#202306

main43420-V2030iAAHH4#,AAHP45202306

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iAAHH4#,AAHP45,AGH4#,TAHA4#202306

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50050iAGH4#202306

main90311-50059iAAHH4#,AAHP45,TAHA4#202306

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48140iAAHH4#,AAHP45,AGH4#,TAHA4#202306

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-78050iAAHH4#,AAHP45202306

main42345-F4180iAGH4#,TAHA4#202306

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48140iAAHH4#,AAHP45,TAHA4#202306

main42345-78010iAGH4#202306

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-48130iAAHH4#,AAHP45,TAHA4#202306

main42345-78020iAGH4#202306

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-0R150iAAHH4#,AAHP45,TAHA4#202306

main43474-42050iAGH4#202306

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-0R270×2iAAHH4#,AAHP45,TAHA4#202306

main42345-78060×2iAGH4#202306

14 parts on this diagram · 6 diagrams in section
