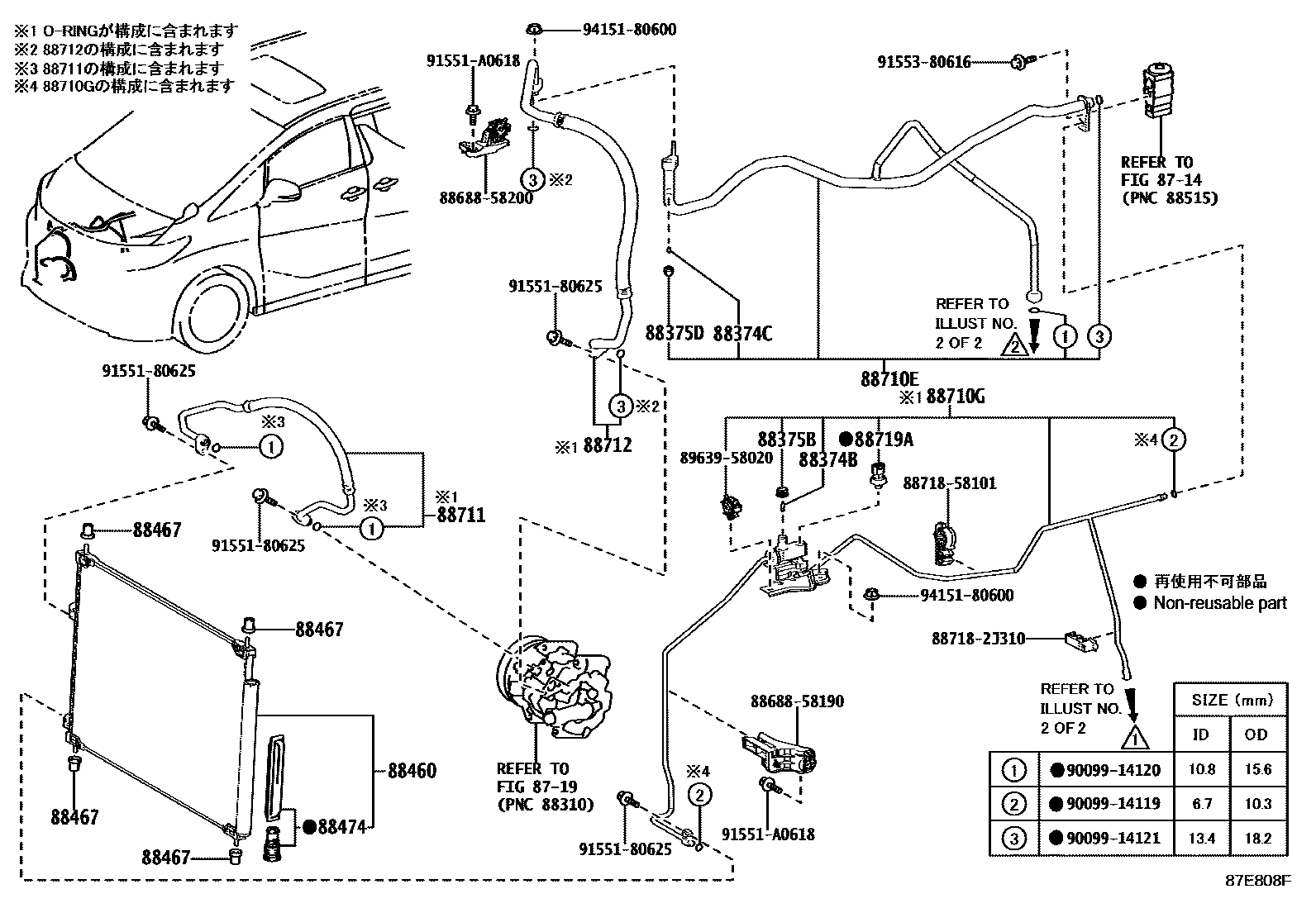

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1���� 0006 1���� 0007 1���� 0008 1�� 0009 1��

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

88374CVALVE, SERVICE, NO.2

main88374-30010iAGH3#,AYH30,GGH3#201801-202001

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAGH3#,AYH30,GGH3#201501-201801

main88375-30320iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAGH3#,AYH30,GGH3#201501-201801

main88375-30310iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

88460CONDENSER ASSY, COOLER

main88460-58030iAYH30201501-201801

main88460-58040iAGH3#,GGH3#201501-201801

main88460-58050iAGH3#,GGH3#201912-202001

main88460-58060iAYH30201912-202001

main884A0-58030iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main884A0-58040iAGH3#..07S..Z;AGH3#,GGH3#..ALPHD202001-202205

main884A0-V2020iAYH30..Z;AYH30..ALPHD202205

main884A0-V2030iAGH3#..07S..Z;AGH3#,GGH3#..ALPHD202205

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×2iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG); AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

88474DRYER, COOLER

main88474-12010iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

main88474-12020iAYH30..Z;AYH30..ALPHD202205

main88474-47020iAYH30..Z;AYH30..ALPHD202205

main88474-47030iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-58200iAGH3#,AYH30,GGH3#201501-201801

main88710-58280iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

main88710-58290iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-58180iAGH3#,AYH30,GGH3#201801-202001

main88710-58300iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-58130iAGH3#..ALPHD;AGH3#..07S..Z202001

main88711-58140iGGH3#201501-201801

main88711-58150iAYH30201501-201801

main88711-58160iGGH3#201801-202001

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-58070iAGH3#201801-202001

main88712-58080iGGH3#201501-201801

main88712-58090iAYH30201501-201801

main88712-58100iGGH3#..VFIRE202001-202104

main88712-58110iAGH3#..ALPHD;AGH3#..07S..Z202001

main88712-58120iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAGH3#,AYH30,GGH3#201501-201801

8868858190BRACKET, COOLER DIAPHRAGM

main88688-58190

8868858200BRACKET, COOLER DIAPHRAGM

main88688-58200

887182J310PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J310

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

8963958020WIRE, BRAKE CONTROL

main89639-58020

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9155380616

main91553-80616

9415180600

main94151-80600

26 parts on this diagram · 9 diagrams in section
