HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0006 1���� 0007 1���� 0008 1���� 0009 1�� 0010 1�� 0011 1�� 0012 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

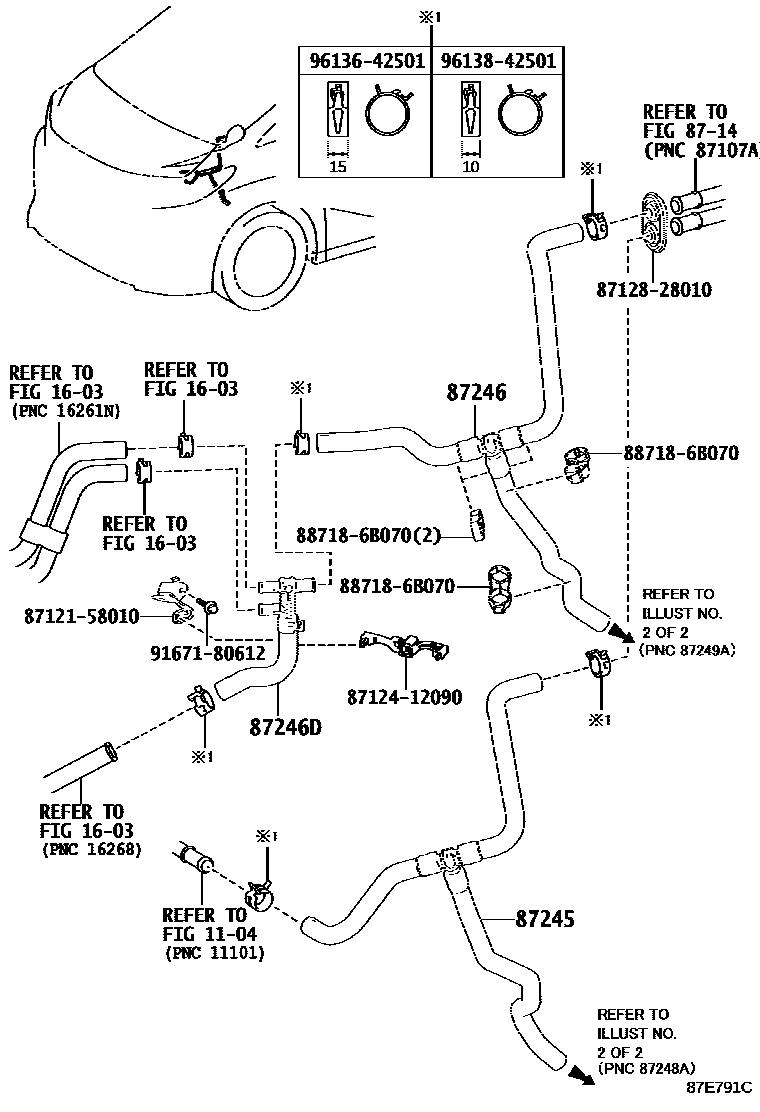

87245HOSE, HEATER WATER, INLET

main87209-58330iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

main87209-58350iGGH3#201501-201801

main87209-58390iAYH30201801-201907

main87209-58440iGGH3#..ALPHD202001

main87209-58500iAYH30201907-202001

87246HOSE, HEATER WATER, OUTLET

main87209-58340iAGH3#201801-202001

main87209-58360iGGH3#201501-201801

main87209-58400iAYH30201801-201907

main87209-58450iGGH3#..VFIRE202001-202104

main87209-58510iAYH30201907-202001

87246DHOSE, HEATER WATER, OUTLET D

main87245-58270iAGH3#201801-202001

main87245-58300iGGH3#..VFIRE202001-202104

8712158010BRACKET, HEATER, FRONT RH

main87121-58010

8712412090CLAMP, HEATER

main87124-12090

8712828010GROMMET, HEATER

main87128-28010

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

9167180612

main91671-80612

9613642501

main96136-42501

9613842501

main96138-42501

13 parts on this diagram · 11 diagrams in section
