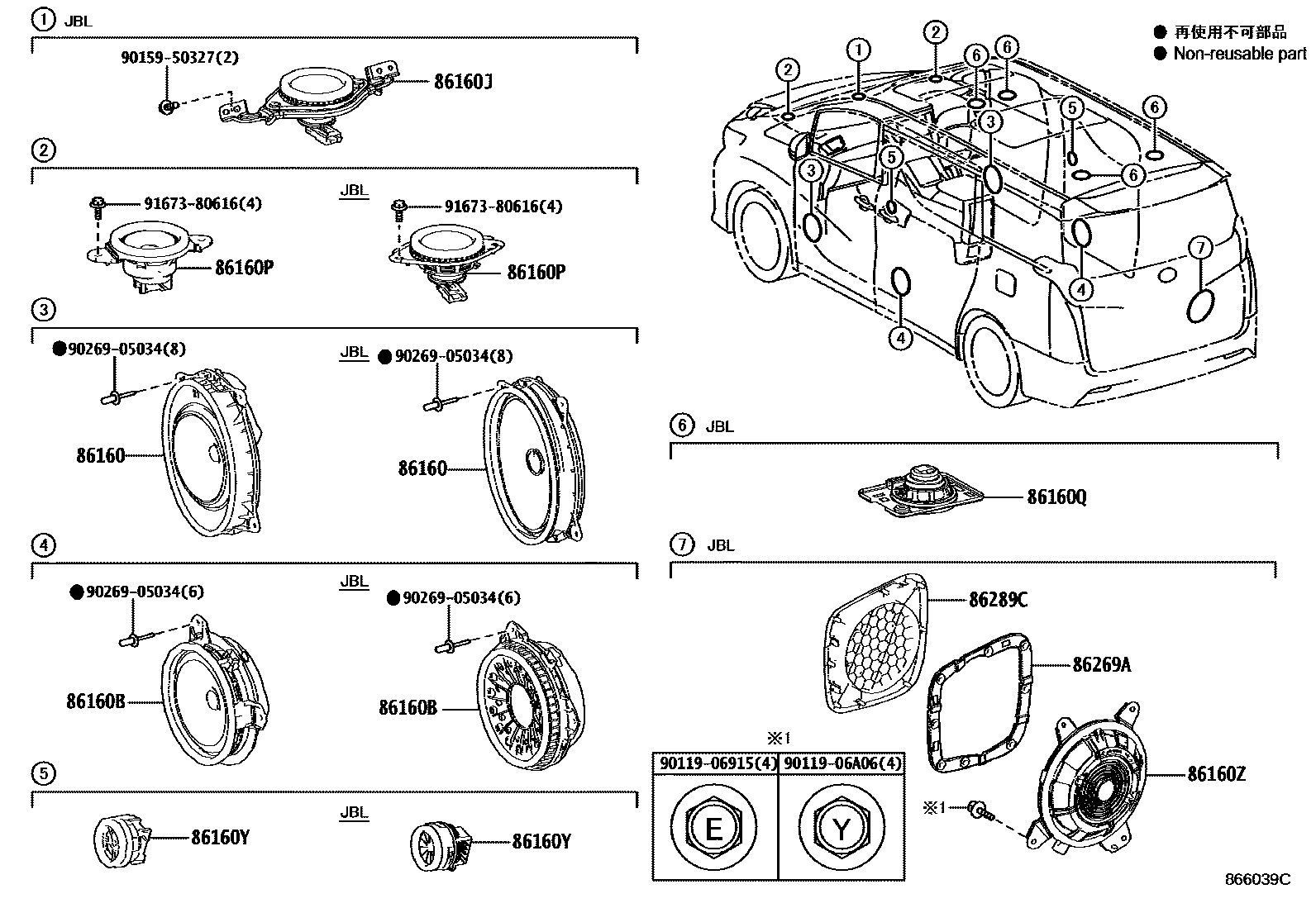

SPEAKER
86160SPEAKER ASSY, FRONT NO.1
main86160-0WU60×2supersedes 86160-58280iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201801-201802
main86160-33850×2supersedes 86160-58280iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001
86160BSPEAKER ASSY, REAR
main86150-58150×2supersedes 86160-52331iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201802-202001
main86160-0R110×2supersedes 86160-52331iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801
86160JSPEAKER ASSY, FRONT NO.3
main86150-0W330iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201801-201802
main86150-58130iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201802-202001
86160PSPEAKER ASSY, FRONT NO.2
main86160-0WU50×2supersedes 86160-58270iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801
main86160-33840×2supersedes 86160-58270iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SC,SR,X); AYH30,GGH3#..ALPHD..(EL,ELS)202001
86160QSPEAKER ASSY, ROOF
main86150-58140×4iAGH3#,AYH30,GGH3#..G,GF,S,SC,SR,V,VL,X,Z,ZG,ZR; AYH30,GGH3#..EL,ELS,ELZ201802-202001
86160YSPEAKER ASSY, REAR NO.2
main86150-58180×2supersedes 86160-52340iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104
main86160-0WV00×2supersedes 86160-52340iAGH3#,AYH30,GGH3#..G,GF,S,SA,SR,V,VL,X,Z,ZA,ZR; AYH30,GGH3#..EL201501-201801
86160ZSPEAKER ASSY, REAR NO.3
main86150-58120iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,ZG,ZR); AYH30,GGH3#..VFIRE..(EL,ELZ)202001-202104
86269AGRILLE, SPEAKER
86289CPLATE, SPEAKER GRILLE
9011906915
main90119-06915
9011906A06
main90119-06A06
9015950327
main90159-50327
9026905034
main90269-05034
9167380616
main91673-80616
14 parts on this diagram · 1 diagram in section
