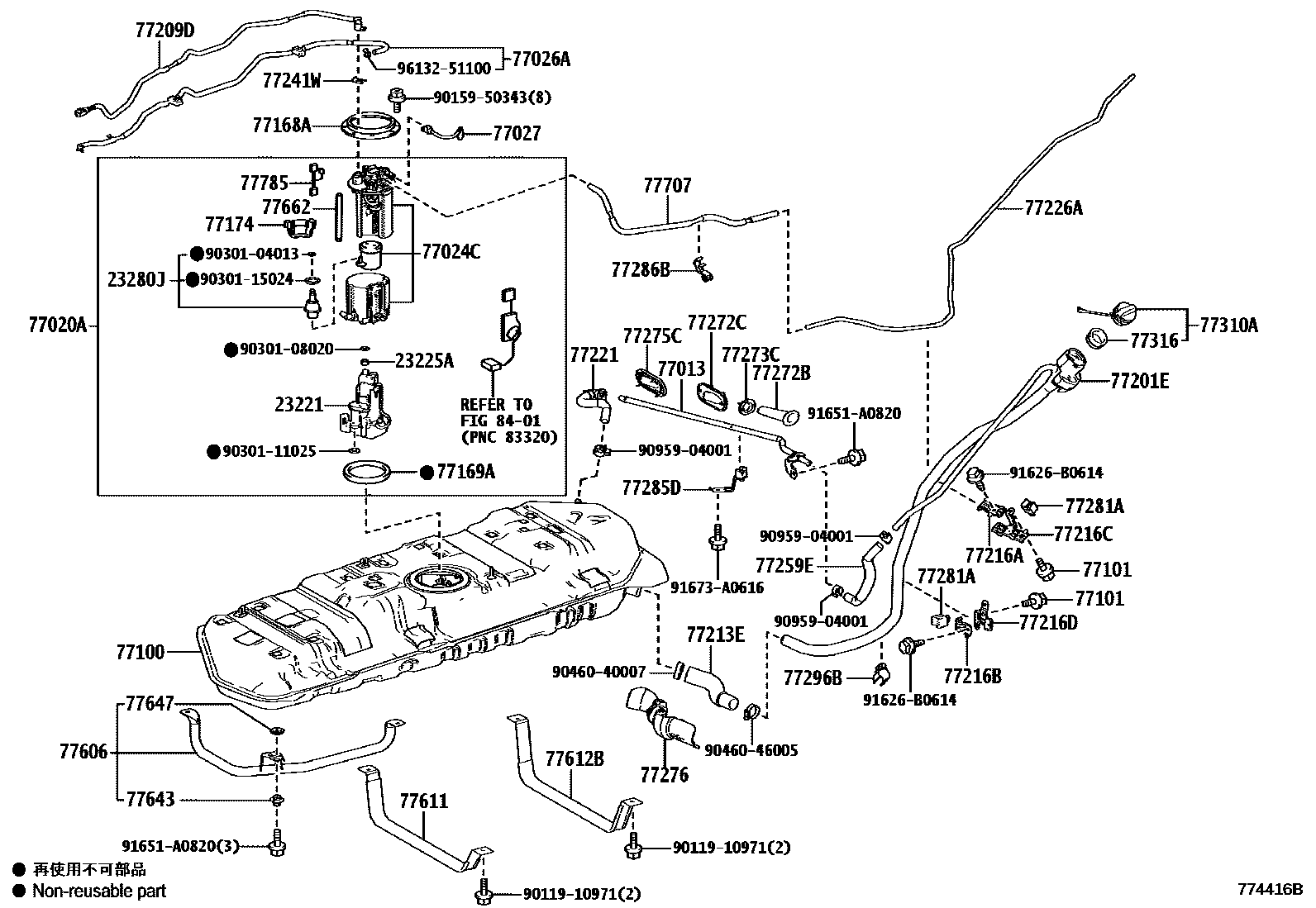

Toyota 713130 — FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77101PLUG(FOR FUEL SUB-TANK)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77216CSUPPORT, FUEL TANK FILLER PIPE NO.3
77216DSUPPORT, FUEL TANK FILLER PIPE NO.4
77221TUBE, FUEL TANK BREATHER, NO.1
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77259EHOSE, FUEL
77272BSUPPORT, BREATHER TUBE, NO.1
77272CSUPPORT, BREATHER TUBE, NO.3
77273CSUPPORT, BREATHER TUBE, NO.2
77275CSUPPORT, BREATHER TUBE, NO.4
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77286BCLAMP, FUEL TUBE W/GROMMET, NO.2
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77612BBAND, FUEL TANK, NO.2
77643RETAINER, FUEL TANK PROTECTOR
77647RETAINER, FUEL TANK PROTECTOR, SIDE
77662COVER, FUEL TANK GAGE
77707TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET
8401SWITCH & RELAY & COMPUTER
9011910971
9015950343
9030104013
9030108020
9030111025
9030115024
9046040007
9046046005
9095904001
91626B0614
91651A0820
91673A0616
9613251100
57 parts on this diagram · 10 diagrams in section
FUEL TANK & TUBE for Toyota 713130
This section contains 86 genuine Toyota parts for the FUEL TANK & TUBE system of the Toyota 713130. Key components include: VACUUM PIPING, FUEL INJECTION SYSTEM, VALVE ASSY, FUEL MAIN, FILTER, FUEL PUMP, PUMP ASSY, FUEL W/FILTER.
