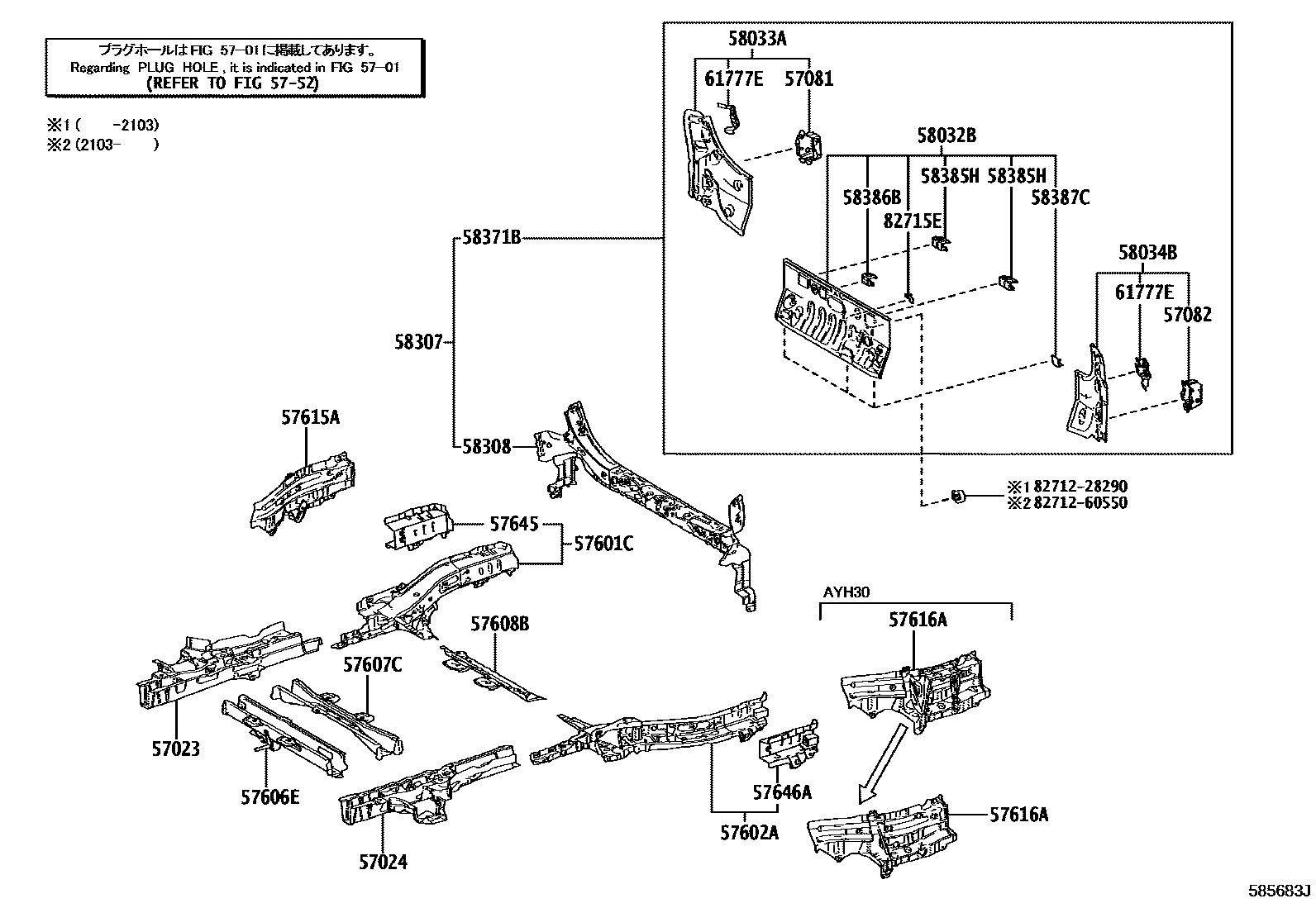

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1������� 0002 1������� 0003 1������� 0004 1�������

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-58050iAGH3#,AYH30,GGH3#201801-202001

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-58050iAGH3#,AYH30,GGH3#201501-201801

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-58030iAGH3#,AYH30,GGH3#201501-201801

57082BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main57082-58030iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

5752HOLE PLUG

→ Go to FIG 57-52

57601CMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-58080iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main57601-58090iAGH3#..07S..Z;AGH3#,GGH3#..ALPHD202001

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-58110iAGH3#,AYH30,GGH3#201801-202001

57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-58110iAGH3#,AYH30,GGH3#..VFIRE..07S..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

main57606-58120iAGH3#,AYH30..ALPHD..08S202001

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-58100iAGH3#,AYH30,GGH3#..07S201801-202001

main57607-58110iAGH3#,AYH30..VFIRE..08S202001-202104

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-58130iAGH3#,AYH30,GGH3#201501-201801

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57061-58010iAGH3#,AYH30,GGH3#201501-201801

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57062-58010iAGH3#,GGH3#201801-202001

main57062-58020iAYH30201501-201801

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-58010iAGH3#,GGH3#201501-201602

main57645-58020iAGH3#,GGH3#201603-201801

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-58030iAGH3#,AYH30,GGH3#201801-202001

58032BPANEL SUB-ASSY, REAR FLOOR, CENTER

main58032-58010iAGH3#,AYH30,GGH3#201801-202001

58033AREINFORCE SUB-ASSY, BODY LOWER BACK, RH

main58033-58010iAGH3#,AYH30,GGH3#201801-202001

58034BREINFORCE SUB-ASSY, BODY LOWER BACK, LH

main58034-58010iAGH3#,AYH30,GGH3#201801-202001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-58070iAGH3#,AYH30,GGH3#201501-201801

58308PANEL SUB-ASSY, BODY LOWER BACK, INNER

main58308-58010iAGH3#,AYH30,GGH3#201501-201801

58371BPANEL, BODY LOWER BACK, OUTER

main58302-58020iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

58385HBRACKET, REAR BUMPER COVER, NO.1

main58386-12020×2iAGH3#,AYH30,GGH3#201501-201801

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28050iAGH3#,AYH30,GGH3#201501-201801

58387CPLATE, REAR FLOOR FINISH

main58348-58020×3iAGH3#,AYH30,GGH3#201501-201801

61777ERETAINER, LOWER BACK PANEL

main61777-58030×2iAGH3#,AYH30,GGH3#201501-201801

82715EBRACKET, WIRING HARNESS CLAMP

main82715-28J10iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

8271228290CLAMP, WIRING HARNESS

main82712-28290

8271260550CLAMP, WIRING HARNESS

main82712-60550

27 parts on this diagram · 4 diagrams in section
