52545BSEAL, FRONT BUMPER SIDE, NO.2 RH

main52545-58060i201501-201801

main52545-58070i201501-201801

main52545-58080i201801-202001

main52545-58090i201801-202001

52546ASEAL, FRONT BUMPER SIDE, NO.2 LH

main52546-58060i201501-201801

main52546-58070i201501-201801

main52546-58080i201801-202001

main52546-58090i201801-202001

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-28050i201501-201801

53106BCOVER SUB-ASSY, RADIATOR

main53106-58070i201501-201801

main53106-58090i201501-201801

main53106-58100i201801-201901

main53106-58101i201901-202001

main53106-58110i201801-201812

main53106-58111i201901-202001

53187ASTAY, RADIATOR SUPPORT, RH

main53187-58020i201501-201801

53188BSTAY, RADIATOR SUPPORT, LH

main53188-58020i201501-201801

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-58050i201501-201801

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-58060i201501-201801

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-58070i201501-201801

main53205-58080i201801-202001

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-58040i201501-201801

53213ASUPPORT, RADIATOR, UPPER RH

main53213-58030i201501-201801

53214ASUPPORT, RADIATOR, UPPER LH

main53214-58030i201501-201801

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-28040i201501-201801

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-28030i201501-201801

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-58010i201501-201801

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-58010i201501-201801

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-58010i201501-201801

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-58010i201501-201801

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-58020i201501-201801

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-58020i201501-201801

53301GCUSHION, HOOD BUMPER

main90541-15024×2i201501-201801

53397BSEAL, RADIATOR, UPPER

main53396-58010i201501-201801

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-58070i201501-201801

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-58060i201501-201801

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-58030i201501-201801

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-58030i201501-201801

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-58030i201501-201801

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-58030i201501-201801

53711BAPRON, FRONT FENDER, FRONT RH

main53711-28100i201501-201801

53712BAPRON, FRONT FENDER, FRONT LH

main53712-28080i201501-201801

53735JPATCH, FRONT FENDER APRON, NO.5

main53735-28020i201501-201801

53736MPATCH, FRONT FENDER APRON, NO.6

main53736-28030i201501-201801

55101PANEL SUB-ASSY, DASH

main55015-58040i201501-201801

main55015-58060i201501-201801

main55015-58070i201801-202001

main55015-58080i201801-202001

55102APANEL SUB-ASSY, DASH, LOWER

main55102-58040i201501-201801

main55102-58050i201501-201801

55210INSULATOR ASSY, DASH PANEL

main55210-58060i201501-201801

main55210-58080i201801-202001

55210ACLIP

main90467-13079×4i201501-201801

55223AINSULATOR, DASH PANEL, OUTER

main55223-58070i201501-201801

main55223-58090i201801-202001

55224BINSULATOR, DASH PANEL, OUTER NO.2

main55224-58030i201501-201801

main55224-58050i201801-202001

57127CREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57127-28110i201501-201801

57128DREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57128-28080i201501-201801

5752HOLE PLUG

→ Go to FIG 57-52

58227JPLATE, FLOOR PANEL SIDE, RH

main58227-58010i201501-201801

58228JPLATE, FLOOR PANEL SIDE, LH

main58228-58010i201501-201801

58398ECOVER, FLOOR UNDER, NO.1

main58398-58040i201501-201801

58399CCOVER, FLOOR UNDER, NO.2

main58399-58030i201501-201801

7455CAUTION PLATE

→ Go to FIG 74-55

5521751010STRIP, DASH PANEL SILENCER FINISH

main55217-51010

9010508362

main90105-08362

9010908292

main90109-08292

9046706197

main90467-06197

9046707215

main90467-07215

9046707217

main90467-07217

91551C0816

main91551-C0816

91673A0612

main91673-A0612

91673A0818

main91673-A0818

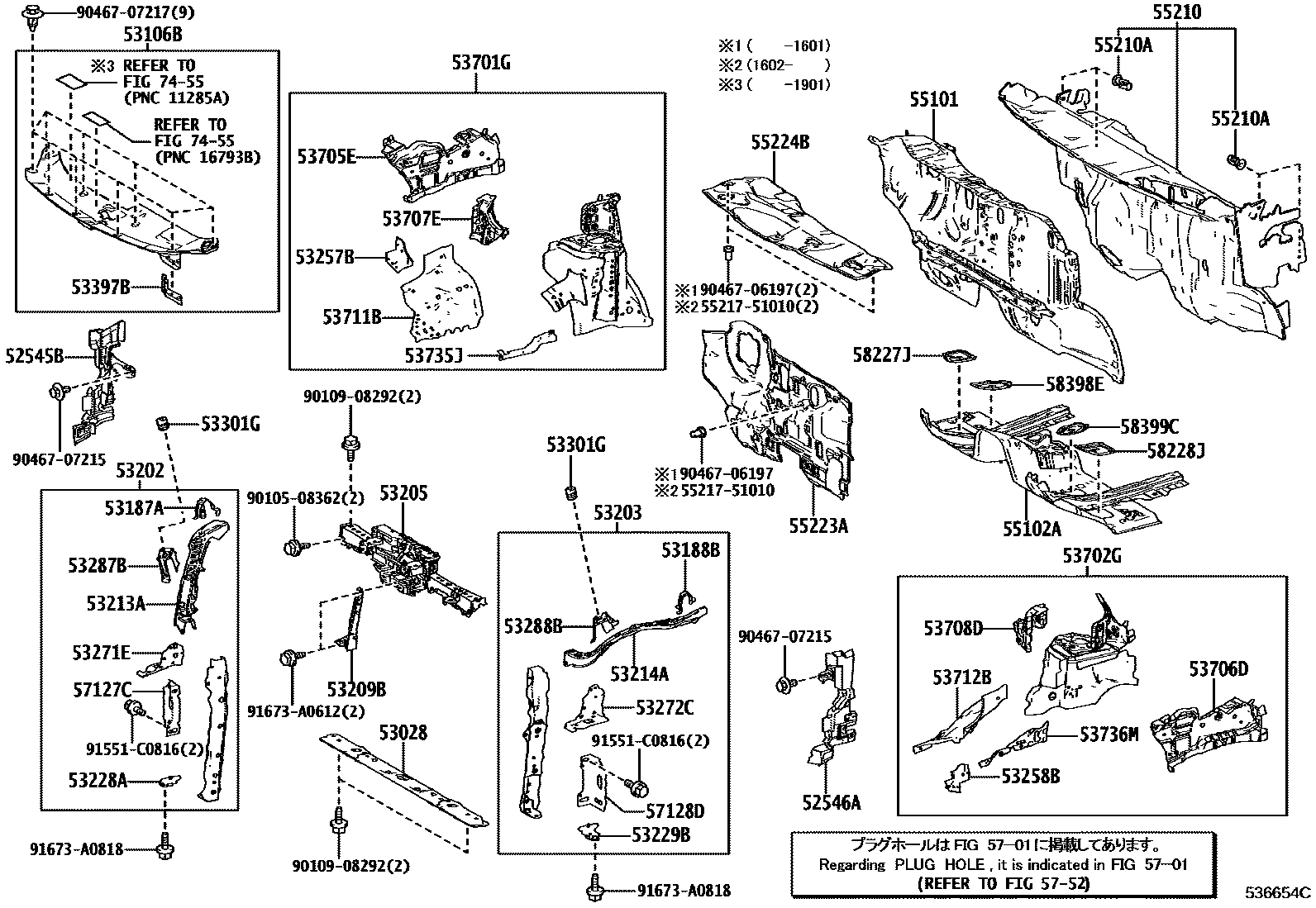

FRONT FENDER APRON & DASH PANEL
