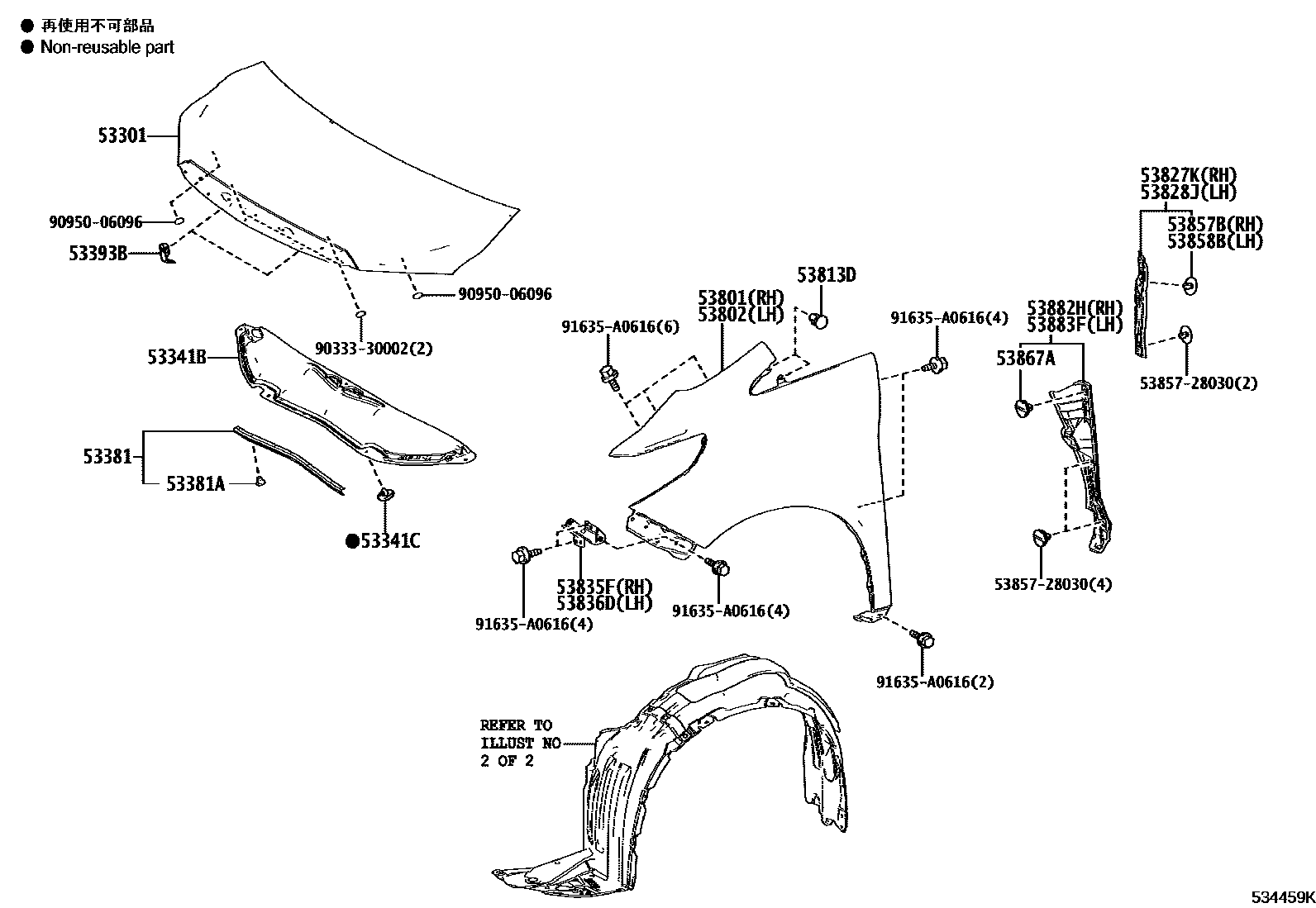

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53301HOOD SUB-ASSY

main53301-58040iAGH3#,AYH30,GGH3#..ALPHD202001

main53301-58060iAGH3#,AYH30,GGH3#..VFIRE201801-202001

53341BINSULATOR, HOOD

main53341-58060iAGH3#,GGH3#201501-201801

main53341-58070iAYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

main53341-V2010iAGH3#..07S..Z;AGH3#,GGH3#..ALPHD202205

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iAGH3#,AYH30,GGH3#201501-201801

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-58040iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iAGH3#,AYH30,GGH3#201801-202001

53393BPROTECTOR, HOOD, FRONT

main53393-58010×2iAGH3#,AYH30,GGH3#201501-201801

53801FENDER SUB-ASSY, FRONT RH

main53801-58050iAGH3#,AYH30,GGH3#..ALPHD201501-201801

main53801-58070iAGH3#,AYH30,GGH3#..VFIRE201501-201801

53802FENDER SUB-ASSY, FRONT LH

main53802-58110supersedes 53802-58120iAGH3#,AYH30,GGH3#..ALPHD..(G,GF,S,SA,SR,X); AYH30,GGH3#..ALPHD..EL201501-201801

main53802-58150supersedes 53802-58160iAGH3#,AYH30,GGH3#..VFIRE..(V,VL,X,Z,ZA,ZR); AYH30,GGH3#..VFIRE..EL201501-201801

53813DEXTENSION, FRONT FENDER

main53813-58010×4iAGH3#,AYH30,GGH3#201501-201801

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-58040iAGH3#,AYH30,GGH3#201501-201801

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-58080iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

53835FBRACE, FRONT FENDER TO EXTENSION, RH

main53835-58040iAGH3#,AYH30,GGH3#..ALPHD201501-201801

main53835-58050iAGH3#,AYH30..07S..Z202001

53836DBRACE, FRONT FENDER TO EXTENSION, LH

main53836-58040iAGH3#,AYH30,GGH3#..ALPHD201501-201801

main53836-58050iAGH3#,AYH30,GGH3#..VFIRE201501-201801

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030iAGH3#,AYH30,GGH3#201801-202001

53867ARETAINER, FRONT FENDER

main53857-28030×2iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

53882HSEAL, FRONT FENDER MAIN, RH

main53882-58030iAGH3#,AYH30,GGH3#201801-202001

53883FSEAL, FRONT FENDER MAIN, LH

main53883-58010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

5385728030RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030

9033330002

main90333-30002

9095006096

main90950-06096

91635A0616

main91635-A0616

22 parts on this diagram · 3 diagrams in section
