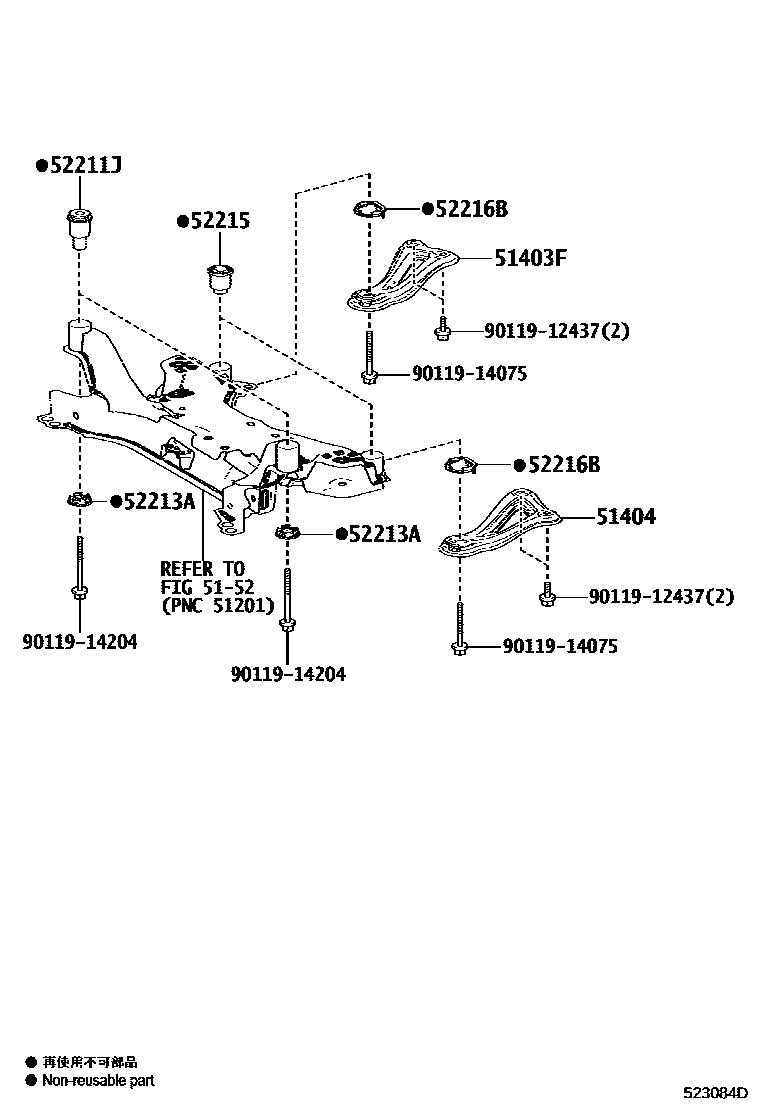

CAB MOUNTING & BODY MOUNTING

0001 1���� 0002 1�� 0003 1��

51403FBRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-58010iAGH3#,GGH3#201801-202001

main51403-58020iAYH30..Z;AYH30..ALPHD202001

51404BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-58010iAGH3#,GGH3#201501-201801

main51404-58020iAYH30..Z;AYH30..ALPHD202001

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-58010×2iAGH3#,GGH3#201801-202001

main52211-58020×2iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-58020×2iAGH3#,AYH30,GGH3#201501-201801

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-58010×2iAGH3#,GGH3#201501-201801

main52215-58020×2iAYH30..Z;AYH30..ALPHD202001

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-58020×2iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

9011912437

main90119-12437

9011914075

main90119-14075

9011914204

main90119-14204

10 parts on this diagram · 3 diagrams in section
