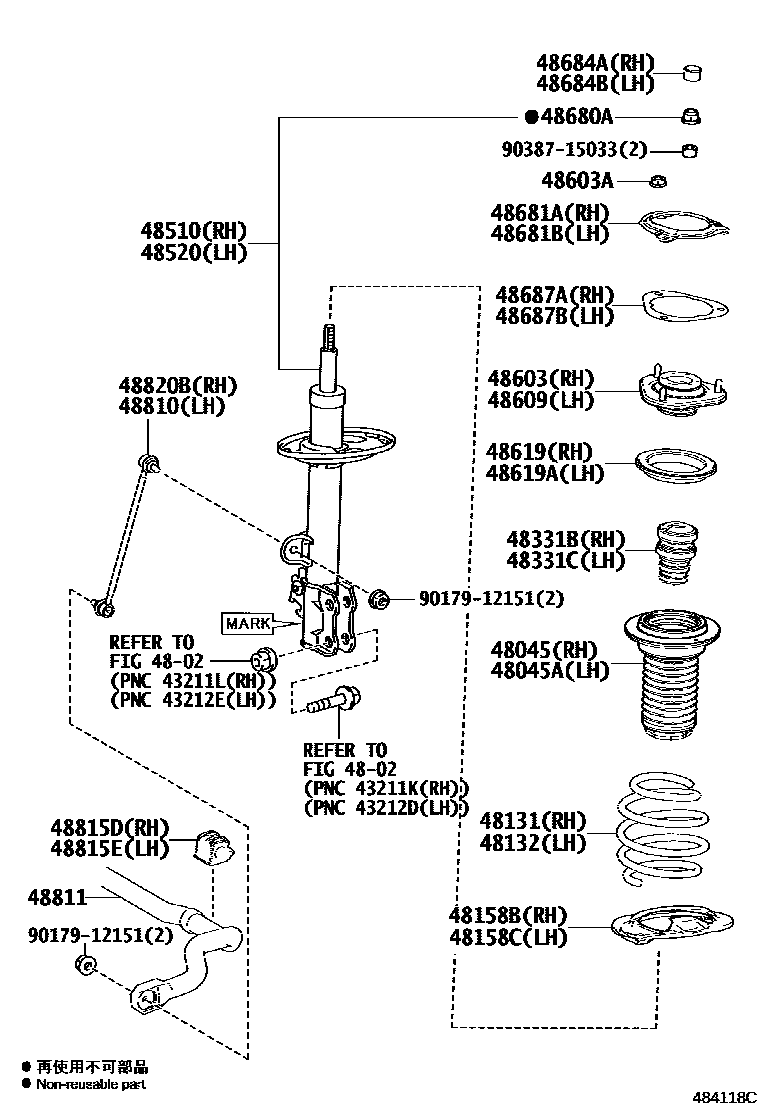

FRONT SPRING & SHOCK ABSORBER

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-42010iAGH3#,AYH30,GGH3#201501-201801

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-42010iAGH3#,AYH30,GGH3#201501-201801

48131SPRING, FRONT COIL, RH

main48131-58260iAGH30201501-201505

main48131-58261iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

main48131-58270iGGH30..EL201501-201801

main48131-58280iGGH30..GF,SA,VL,ZA201501-201801

main48131-58290iAGH35201801-202001

main48131-58300iGGH35..EL201501-201801

main48131-58310iGGH35..GF,SA,VL,ZA201501-201801

main48131-58320iAYH30..EL201501-201801

main48131-58360iAYH30..G,S,SR,V,X,Z,ZR201801-202001

main48131-58370iGGH30..VFIRE..(EL,ELZ)202001-202104

main48131-58380iGGH30..GF,SC202001

main48131-58390iGGH35..ALPHD..(EL,ELS)202001

main48131-58400iGGH35..GF,SC202001

48132SPRING, FRONT COIL, LH

main48131-58260iAGH30201501-201505

main48131-58261iAGH30201801-202001

main48131-58270iGGH30..EL201501-201801

main48131-58280iGGH30..GF,SA,VL,ZA201501-201801

main48131-58290iAGH35201801-202001

main48131-58300iGGH35..EL201501-201801

main48131-58310iGGH35..GF,SA,VL,ZA201501-201801

main48131-58320iAYH30..EL201501-201801

main48131-58360iAYH30..Z;AYH30..ALPHD..(G,S,SR,X)202001

main48131-58370iGGH30..VFIRE..(EL,ELZ)202001-202104

main48131-58380iGGH30..GF,SC202001

main48131-58390iGGH35..VFIRE..(EL,ELZ)202001-202104

main48131-58400iGGH35..GF,SC202001

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-58010iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-58010iAGH3#,AYH30,GGH3#201501-201801

48331BBUMPER, FRONT SPRING, RH

main48331-58010iAGH3#,AYH30,GGH3#201501-201801

48331CBUMPER, FRONT SPRING, LH

main48331-58010iAGH3#,AYH30,GGH3#201501-201801

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80744iAGH3#201501-201801

main48510-80745iGGH3#..EL201501-201801

main48510-80746iGGH3#..GF,SA,VL,ZA201501-201801

main48510-80747iAYH30..G,SR,V,X,ZR201501-201607

main48510-80844iAYH30..G,SR,V,X,ZR201607-201801

main48510-80891iAGH3#201801-202001

main48510-80892iGGH3#..EL,ELS,ELZ201801-202001

main48510-80893iGGH3#..GF,SC,VL,ZG201801-202001

main48510-80894iAYH30..EL,ELS,ELZ201801-202001

main48510-80895iAYH30..G,S,SR,V,X,Z,ZR201801-202001

main48510-80B33iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

main48510-80B34iGGH3#..VFIRE..(EL,ELZ)202001-202104

main48510-80B35iGGH3#..GF,SC202001

main48510-80B36iAYH30..VFIRE..(EL,ELZ)202001-202104

main48510-80B37iAYH30..VFIRE..(V,X,ZR)202001-202104

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80422iAGH3#201501-201801

main48520-80423iGGH3#..EL201501-201801

main48520-80424iGGH3#..GF,SA,VL,ZA201501-201801

main48520-80425iAYH30..G,SR,V,X,ZR201501-201607

main48520-80516iAYH30..G,SR,V,X,ZR201607-201801

main48520-80558iAGH3#201801-202001

main48520-80559iGGH3#..EL,ELS,ELZ201801-202001

main48520-80560iGGH3#..GF,SC,VL,ZG201801-202001

main48520-80561iAYH30..EL,ELS,ELZ201801-202001

main48520-80562iAYH30..G,S,SR,V,X,Z,ZR201801-202001

main48520-80691iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

main48520-80692iGGH3#..ALPHD..(EL,ELS)202001

main48520-80693iGGH3#..VL,ZG202001-202104

main48520-80694iAYH30..VFIRE..(EL,ELZ)202001-202104

main48520-80695iAYH30..Z;AYH30..ALPHD..(G,S,SR,X)202001

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-58020iAGH3#,AYH30,GGH3#201801-202001

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10011×6iAGH3#,AYH30,GGH3#201501-201801

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-58020iAGH3#,AYH30,GGH3#201501-201801

48619BEARING, STRUT MOUNTING, RH

main48619-28010iAGH3#,AYH30,GGH3#201501-201801

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iAGH3#,AYH30,GGH3#201501-201801

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iAGH3#,AYH30,GGH3#201501-201801

main90177-14007×2iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

48681AGASKET, FRONT SUSPENSION SUPPORT, RH

main48681-28020iAGH3#,AYH30,GGH3#201501-201801

48681BGASKET, FRONT SUSPENSION SUPPORT, LH

main48681-28020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iAGH3#,AYH30,GGH3#201501-201801

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iAGH3#,AYH30,GGH3#201501-201801

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iAGH3#,AYH30,GGH3#201501-201801

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iAGH3#,AYH30,GGH3#201501-201801

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iAGH3#,AYH30,GGH3#201801-202001

48811BAR, STABILIZER, FRONT

main48811-58060iGGH3#..GF,SA,VL,ZA201501-201801

main48811-58070iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-28210iAGH3#201501-201801

main48815-58031iAYH30,GGH3#..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main48815-58050iGGH3#..VL,ZG202001-202104

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-28200iAGH3#..ALPHD;AGH3#..07S..Z202001

main48815-58021iAYH30,GGH3#..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main48815-58040iGGH3#..VL,ZG202001-202104

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iAGH3#,AYH30,GGH3#201501-201801

9017912151

main90179-12151

9038715033

main90387-15033

30 parts on this diagram · 1 diagram in section
