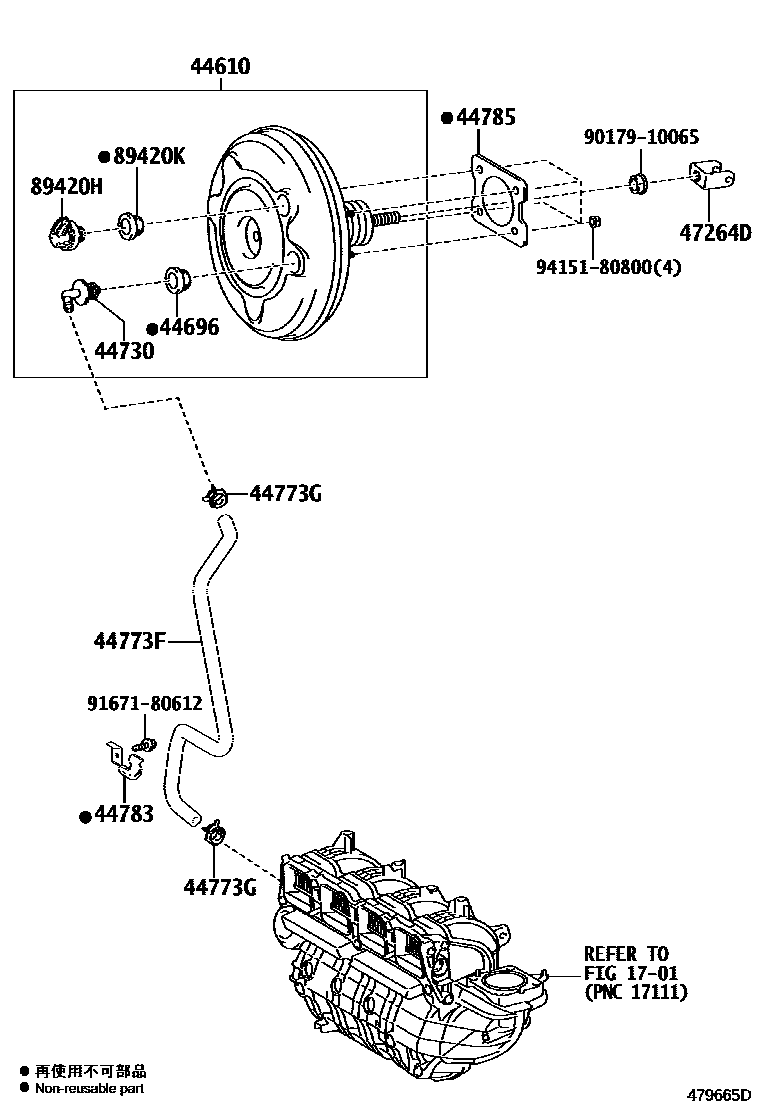

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-58070iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

main44610-58080iGGH3#201501-201801

main44610-58120iGGH3#..VFIRE202001-202104

44696GROMMET, CHECK VALVE

main90480-24015iAGH3#,GGH3#201501-201801

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iAGH3#,GGH3#201501-201801

44773FHOSE, UNION TO CHECK VALVE

main44773-58050iAGH3#201501-201801

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iAGH3#201501-201801

44783CLAMP, VACUUM HOSE

main44783-42030iAGH3#201501-201801

44785GASKET, BRAKE BOOSTER

main44785-12040iAGH3#,GGH3#201501-201801

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

89420HSENSOR ASSY, VACUUM

main89421-52020iAGH3#,GGH3#201801-202001

89420KGROMMET, VACUUM SENSOR

main90480-24015iAGH3#,GGH3#201907-202001

main90480-24439iAGH3#201501-201801

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

14 parts on this diagram · 3 diagrams in section
