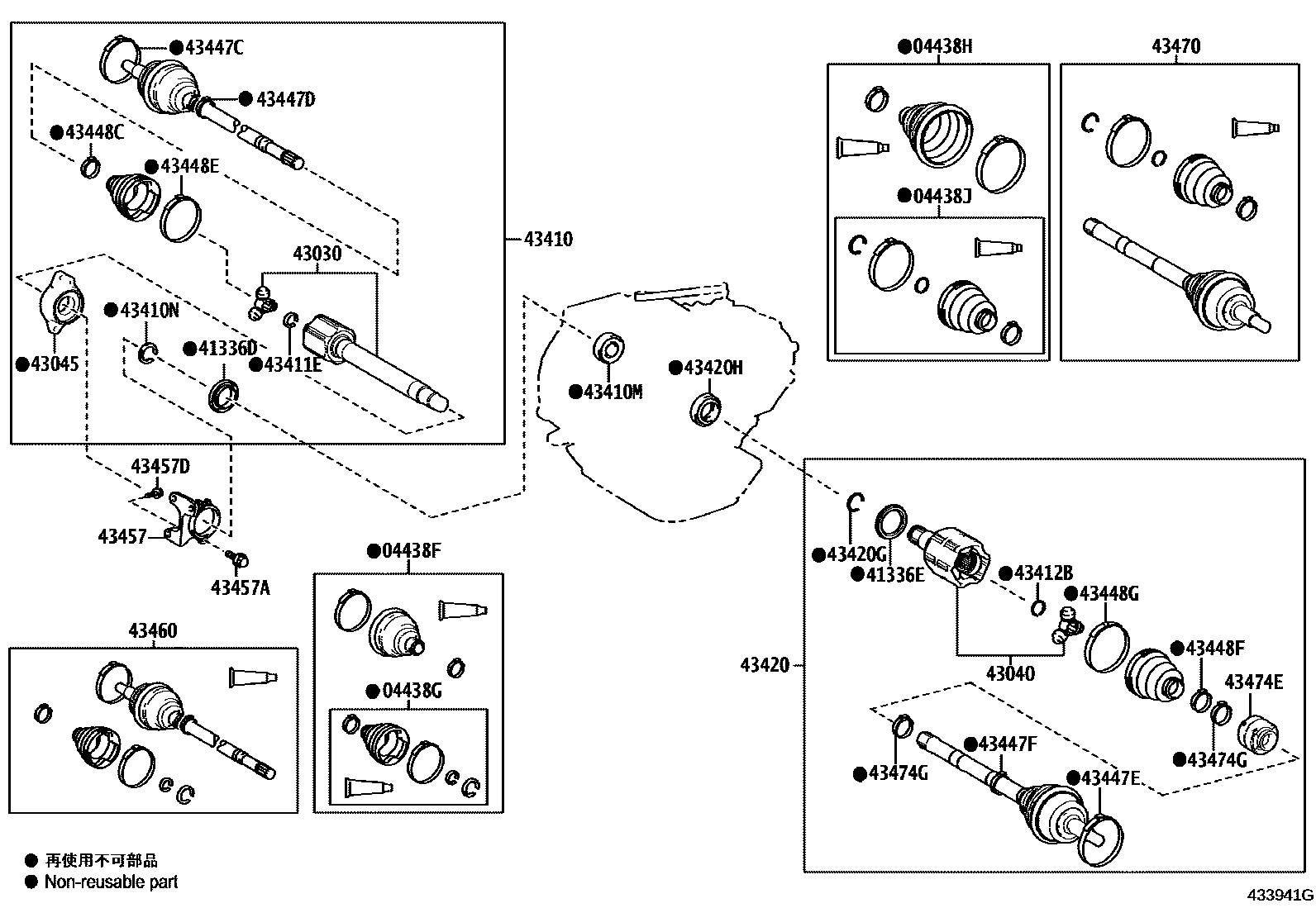

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-58060iAGH30201501-201703

main04427-58061iAGH30201703-201801

main04427-58062iAGH30201804-202001

main04427-58070iAGH35201501-201703

main04427-58071iAGH35201703-201801

main04427-58072iAGH35201804-202001

main04427-58080iGGH30201501-201703

main04427-58081iGGH30201801-201803

main04427-58082iGGH30..ALPHD202001

main04427-58090iGGH35201501-201703

main04427-58091iGGH35201703-201801

main04427-58092iGGH35..ALPHD202001

main04427-58100iAYH30201501-201703

main04427-58101iAYH30201801-201804

main04427-58102iAYH30201804-202001

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-58040iAGH30,AYH30201801-201804

main04437-58041iAGH30..08S..Z;AGH30,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main04437-58050iAGH35201801-201804

main04437-58051iAGH35..ALPHD;AGH35..07S..Z202001

main04437-58060iGGH30201801-201803

main04437-58061iGGH30201804-202001

main04437-58070iGGH35201801-201804

main04437-58071iGGH35..VFIRE202001-202104

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-58080iAYH30201501-201703

main04428-58081iAGH3#201501-201703

main04428-58082iAGH3#201801-201804

main04428-58083iAYH30201801-201804

main04428-58084iAGH3#..08S..Z;AGH3#..VFIRE..(V,X)202001-202104

main04428-58085iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main04428-58091iGGH3#201501-201703

main04428-58092iGGH3#201703-201801

main04428-58110iGGH3#..ALPHD202001

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-58060iGGH3#201501-201801

main04438-58070iGGH3#201801-202001

main04438-78010iAGH3#,AYH30201501-201801

main04438-78011iAGH3#,AYH30..ALPHD;AGH3#,AYH30..07S..Z202001

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-78010iAGH30,AYH30201801-202001

main41336-78020iAGH35..07S..Z;AGH35,GGH35..ALPHD202001

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-78030iAGH3#,GGH3#201501-201801

main41336-78040iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-58020iAGH30201501-201801

main43030-58030iAGH35201801-202001

main43030-58040iGGH30201501-201801

main43030-58050iGGH35..VFIRE202001-202104

main43030-58060iAYH30..Z;AYH30..ALPHD202001

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-58010iAGH3#201501-201801

main43040-58020iGGH3#201501-201801

main43040-58030iAYH30201801-202001

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-58030iAGH30201501-201801

main43410-58031iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

main43410-58040iAGH35201801-201806

main43410-58041iAGH35201807-202001

main43410-58050iGGH30201501-201801

main43410-58060iGGH35201801-201806

main43410-58061iGGH35..ALPHD202001

main43410-58070iAYH30201801-201806

main43410-58071iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main43410-58080iGGH30201801-201806

main43410-58081iGGH30201807-202001

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iGGH30201501-201801

main90311-40039iAYH30..Z;AYH30..ALPHD202001

main90311-40041iAGH30..ALPHD;AGH30..07S..Z202001

main90311-40046iGGH30201801-202001

main90316-34001iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-58030iGGH3#201501-201801

main43425-78010iAGH30,AYH30..ALPHD;AGH30,AYH30..07S..Z202001

main43425-78020iAGH35..ALPHD;AGH35..07S..Z202001

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-78010iGGH30201501-201801

main43425-78020iAGH30,AYH30201801-202001

main43425-78040iAGH35..08S..Z;AGH35,GGH35..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-58030iGGH3#201801-202001

main43425-78020iAGH3#,AYH30..ALPHD;AGH3#,AYH30..07S..Z202001

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-58020iAGH3#201801-201806

main43420-58021iAGH3#..ALPHD;AGH3#..07S..Z202001

main43420-58040iGGH3#201501-201801

main43420-58050iAYH30201501-201801

main43420-58051iAYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

main43420-58060iGGH3#201801-201806

main43420-58061iGGH3#..VFIRE202001-202104

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-78050iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50045iGGH3#201501-201801

main90311-50050iAGH3#201501-201801

main90311-50053iAYH30201502-201801

main90311-50059iGGH3#..ALPHD202001

main90311-50063iAYH30..Z;AYH30..ALPHD202001

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-58020iAGH30,AYH30,GGH30201501-201702

main42345-58140iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-58130iAGH3#,AYH30,GGH3#201703-201709

main42346-24020iAGH3#,AYH30,GGH3#201801-202001

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-58020iAGH3#,AYH30,GGH3#201501-201702

main42345-58140iAGH3#,AYH30,GGH3#201801-202001

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-58130iAGH3#,AYH30,GGH3#201703-201709

main42346-24020iAGH3#..08S..Z;AGH3#,AYH30,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG,ZR)202001-202104

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-58030iGGH3#201501-201801

main42345-78010iAGH3#,AYH30..ALPHD;AGH3#,AYH30..07S..Z202001

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-58040iGGH3#201801-202001

main42345-78020iAGH3#..08S..Z;AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-58030iGGH3#..ALPHD202001

main42345-78010iAGH3#..08S..Z;AGH3#,AYH30..VFIRE..(EL,ELZ,V,X,ZR)202001-202104

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-58040iGGH3#201801-202001

main42345-78020iAGH3#,AYH30201501-201801

43457BRACKET, DRIVE SHAFT BEARING

main43457-21010iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

main43457-33040iAYH30201501-201801

main43457-42030iGGH30201501-201801

main43457-42070iGGH35..ALPHD202001

main43457-42140iAGH35..08S..Z;AGH35..VFIRE..(V,X)202001-202104

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iAGH30,GGH30201501-201801

main90119-10461iAGH35,AYH30..07S..Z;AGH35,AYH30,GGH35..ALPHD202001

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAGH3#,AYH30..07S..Z;AGH3#,AYH30,GGH3#..ALPHD202001

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59825iAGH30201801-201804

main43460-59826iAGH30201804-201807

main43460-59827iAGH30..08S..Z;AGH30..VFIRE..(V,X)202001-202104

main43460-59835iAGH35201501-201702

main43460-59836iAGH35201801-201804

main43460-59837iAGH35201804-201807

main43460-59838iAGH35201807-202001

main43460-59845iGGH30201501-201801

main43460-59846iGGH30201804-201807

main43460-59847iGGH30201807-202001

main43460-59855iGGH35201501-201702

main43460-59856iGGH35201801-201804

main43460-59857iGGH35201804-201807

main43460-59858iGGH35..ALPHD202001

main43460-59865iAYH30201801-201804

main43460-59866iAYH30201804-201807

main43460-59867iAYH30201807-202001

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-59846iAGH3#201501-201801

main43470-59847iAGH3#201804-201807

main43470-59848iAGH3#201807-202001

main43470-59856iGGH3#201501-201801

main43470-59865iAYH30201801-201804

main43470-59866iAYH30201804-201807

main43470-59867iAYH30..Z;AYH30..ALPHD202001

main43470-59885iGGH3#201801-201807

main43470-59886iGGH3#201807-202001

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42050iAGH3#..08S..Z;AGH3#,GGH3#..VFIRE..(EL,ELZ,V,VL,X,ZG)202001-202104

main43474-58030iAYH30201501-201801

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-58060×2iAYH30..Z;AYH30,GGH3#..ALPHD202001

main42345-78060×2iAGH3#,GGH3#201501-201801

32 parts on this diagram · 5 diagrams in section
