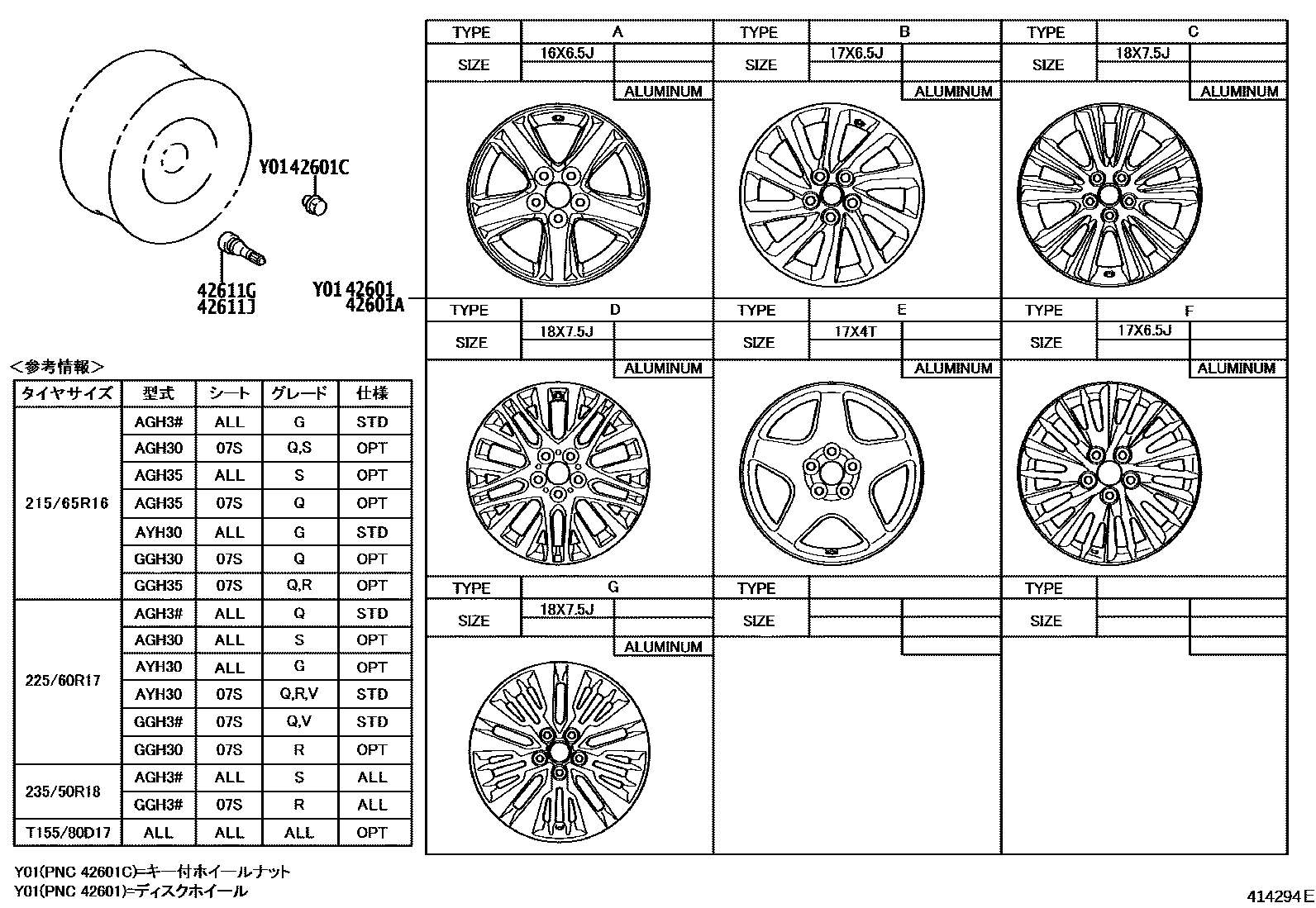

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-58230×4iAGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR; AGH30,GGH30..S,SA,Z,ZA; AYH30..07S..X; AYH30..08S201607-201801

main42611-58240×4iAGH3#,AYH30..X; AGH3#..G,V; AGH35..S,Z;AGH30..07S..(S,Z)201801-202001

main42611-58241×4iAGH3#,AYH30..VFIRE..X; AGH3#..V; AGH35..08S..Z202001-202104

main42611-58260×4iAGH3#,AYH30,GGH3#..EL,G,GF,SR,V,VL,ZR; AGH30,GGH30..S,SA,Z,ZA; AYH30..07S..X; AYH30..08S201501-201606

main42611-58270×4iAGH3#,GGH3#..S,SA,Z,ZA201501-201801

main42611-58271×4iAGH3#..S202001

main42611-58330×4supersedes 42611-58271iAGH3#..07S..(S,Z); GGH3#..SC,ZG201801-202001

main42611-58350×4iAYH30,GGH3#..EL,ELS,ELZ202001-202104

main42611-58410×4iAYH30,GGH3#..ALPHD..(EL,ELS); AYH30..G202105

main4261A-58041×4iAGH3#..07S..Z202105

main4261A-58050×4iAGH30,GGH3#..S,SC,Z,ZG; AYH30..07S..X; AYH30..G,S,SR,V,Z,ZR;AGH3#,GGH3#..G,GF,V,VL201801-202001

main42611-58280×4iAGH3#,GGH3#..07S..(S,SA,Z,ZA)201501-201801

main4261A-58040×4iAGH3#..07S..(S,Z)202001-202005

42601AWHEEL, DISC (FOR SPARE)

main42611-58300iAGH3#,AYH30,GGH3#201501-201505

main42611-58320iAGH3#,AYH30,GGH3#201506-201801

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iAGH3#,AYH30,GGH3#201501-201801

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAGH3#,AYH30,GGH3#201801-202001

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAGH3#,AYH30,GGH3#201501-201801

5 parts on this diagram · 3 diagrams in section
